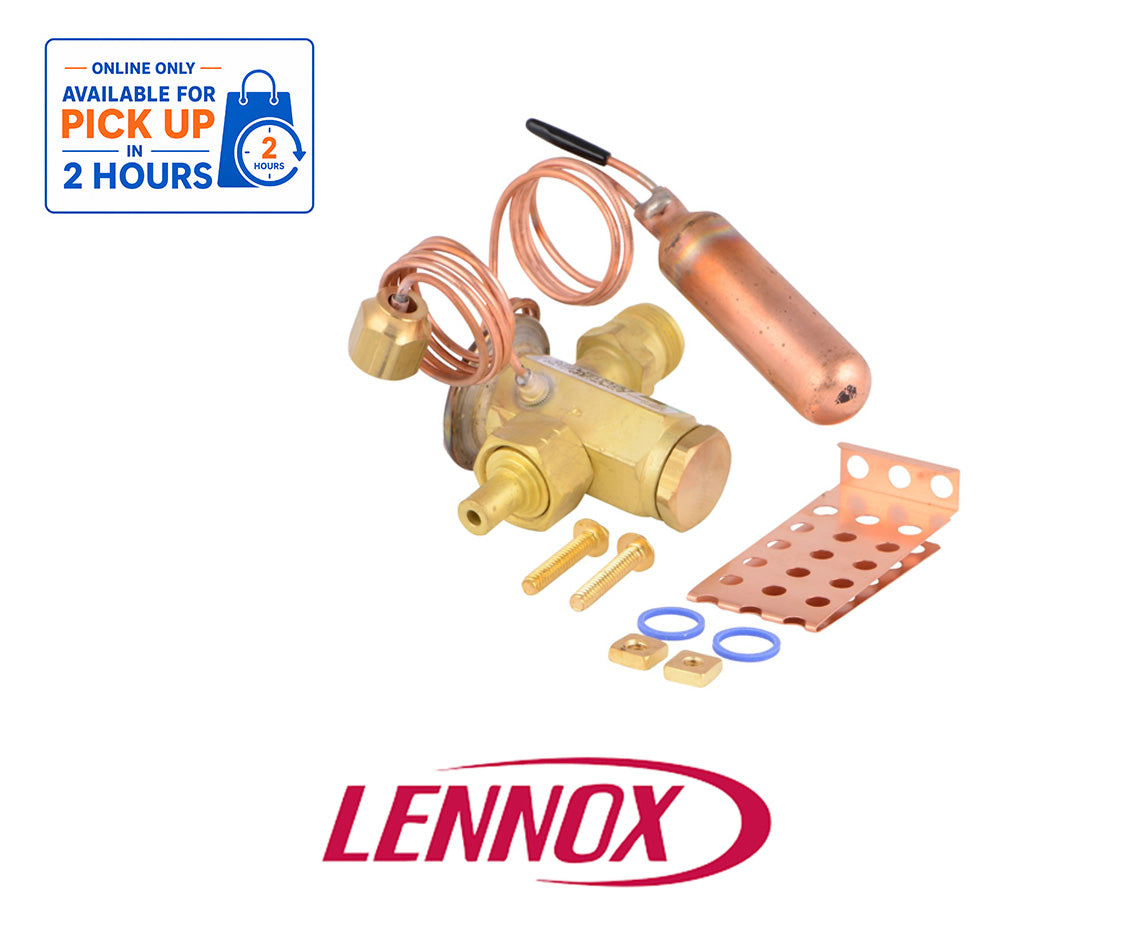

Lennox 49K03 / 041239-07 OEM TXV Expansion Valve – R-22, 3 Ton, External Equalizer

Name: Lennox 49K03 / 041239-07 OEM TXV Expansion Valve – R-22, 3 Ton, External Equalizer
Brand: Lennox
SKU: 66255131241
Price: 192.80 USD
Availability: InStock

In stock

$192.80 USD

Sale Sold out

Shipping calculated at checkout.

Lennox 49K03 / 041239-07 R-22 TXV Expansion Valve

Genuine Lennox OEM thermal expansion valve
Designed for 3-ton HVAC applications
Specifically designed for R-22 refrigerant
Externally equalized TXV design
Refrigerant metering valve for compatible Lennox air handlers and evaporator coils

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Specification

Details

Brand

Lennox

Catalog Number

49K03

Model / Part Number

041239-07

Product Type

Thermal Expansion Valve

Common Name

TXV

Refrigerant

R-22

Nominal Capacity

3 Ton

Nominal Capacity Class

36,000 BTU

Equalizer Type

External

Application

Air Handler / Evaporator Coil

Function

Refrigerant Metering

OEM Component

Yes

description

The Lennox 49K03, model/part 041239-07, is a genuine OEM thermal expansion valve (TXV) designed for select Lennox air handlers and evaporator coil applications.

This expansion valve is designed for R-22 refrigerant and 3-ton HVAC applications. The TXV regulates refrigerant flow entering the evaporator coil based on system operating conditions, helping maintain proper superheat, cooling capacity, and overall system performance.

Key Features & Function

Genuine Lennox OEM component
Cat #: 49K03
Model / Part #: 041239-07
Thermal Expansion Valve (TXV)
Designed for R-22 refrigerant
3 Ton nominal application
Approximately 36,000 BTU nominal capacity class
Externally equalized design
Controls refrigerant flow into the evaporator coil
Helps maintain proper evaporator superheat
Designed for compatible Lennox indoor HVAC equipment
Suitable for select air-handler and evaporator-coil applications

Product Details & Key Specifications

Specification	Details
Brand	Lennox
Catalog Number	49K03
Model / Part Number	041239-07
Product Type	Thermal Expansion Valve
Common Name	TXV
Refrigerant	R-22
Nominal Capacity	3 Ton
Nominal Capacity Class	36,000 BTU
Equalizer Type	External
Application	Air Handler / Evaporator Coil
Function	Refrigerant Metering
OEM Component	Yes

🛠️ HVAC Depot Pro Tip

When replacing a TXV, do not match the valve by tonnage alone. A 3-ton R-410A expansion valve is not automatically interchangeable with a 3-ton R-22 valve.

For this part, verify:

Catalog Number: 49K03
Part Number: 041239-07
Refrigerant: R-22
Nominal Capacity: 3 Ton
Valve Type: TXV / Thermal Expansion Valve
Equalizer: External

Also verify the complete indoor coil or air-handler model and the outdoor condenser model before ordering. The refrigerant, capacity, connection configuration, distributor arrangement, and manufacturer charging requirements should all match the original system.

Equipment / Model Compatibility

The Lennox 49K03 / 041239-07 is designed for select Lennox R-22 air handlers and evaporator coil systems requiring this specific TXV.

Documented applications include select equipment from families such as:

Lennox CB28UH Series
Lennox CB29M Series
Lennox R-22 air handlers
Lennox R-22 evaporator coil applications
3-ton systems specifically calling for 49K03
Equipment specifically calling for 041239-07

Because Lennox used different expansion valves depending on equipment size, refrigerant, and coil configuration, always verify the complete model and serial number before ordering.
