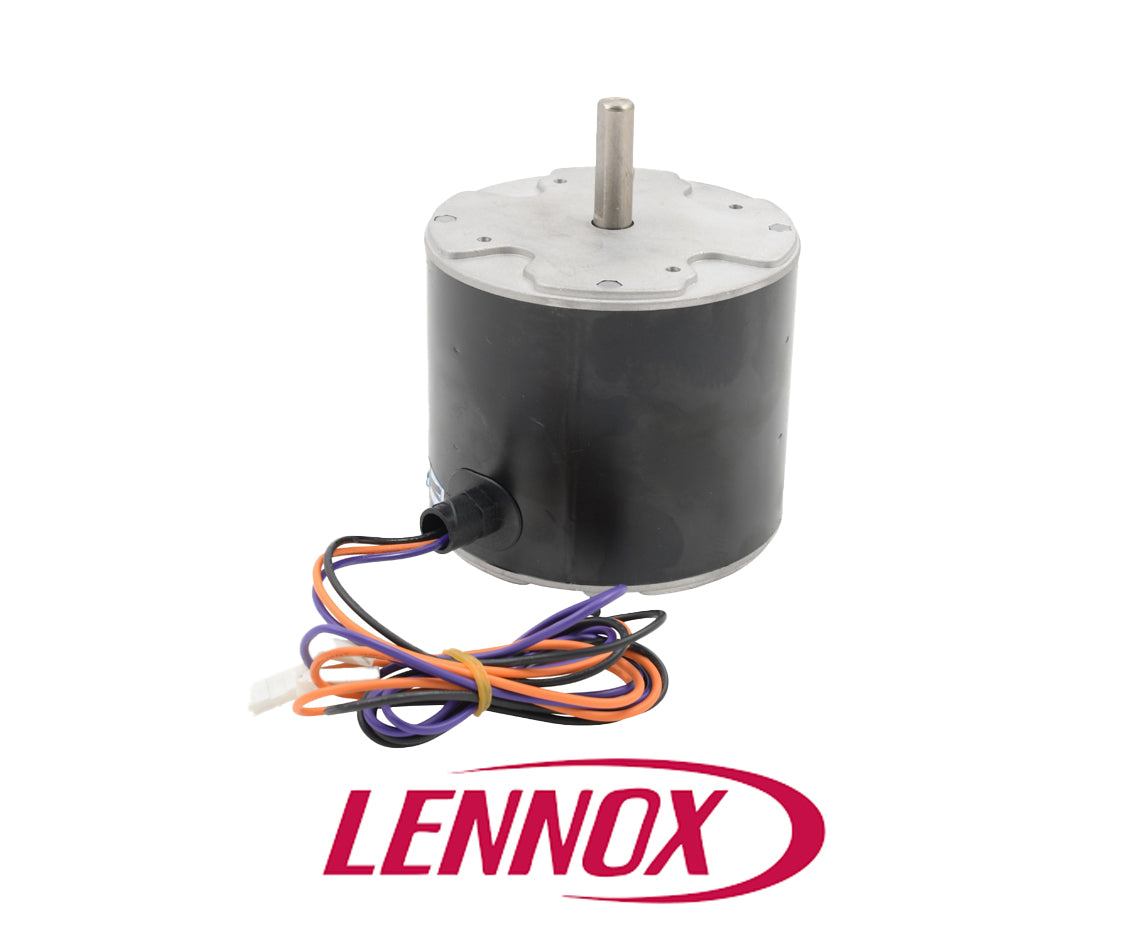

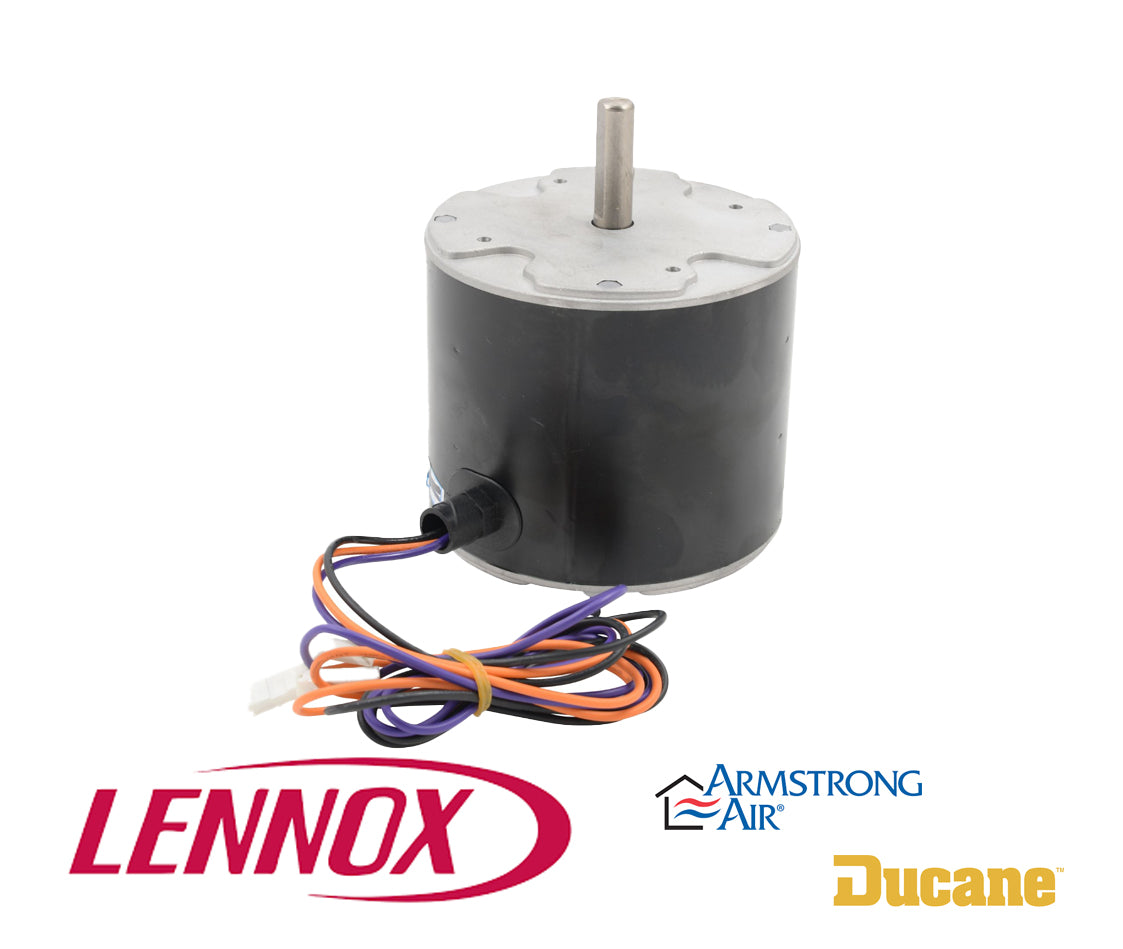

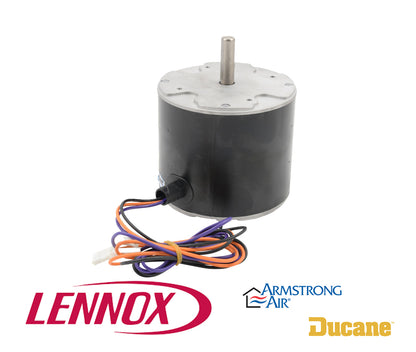

Lennox 47W86 Condenser Fan Motor - 1/10 HP 1075 RPM 208-230V 1PH 100483-23 OEM Replacement

Lennox 47W86 Condenser Fan Motor - 1/10 HP 1075 RPM 208-230V 1PH 100483-23 OEM Replacement

In stock

Regular price $285.00 USD
Regular price Sale price $285.00 USD
Sale Sold out
Shipping calculated at checkout.

Lennox 100483-23, Condenser Fan Motor, 1/10 HP, 208/230V-1Ph, 1075 RPM, 100483-23

  • Restored Cooling Efficiency: High-speed 1075 RPM performance ensures your AC sheds heat rapidly for faster indoor cooling.

  • Genuine OEM Fitment: Avoid the hassle of universal motors with a direct-fit 42Y frame and 1/2-inch flat-edge shaft.

  • Maintenance-Free Design: Permanently lubricated bearings mean no annual oiling is required for the life of the motor.

  • Safe Thermal Monitoring: Integrated internal protection guards against overheating during the hottest summer days.

  • Factory Standard Wiring: Uses the same wire color coding as the original unit for a simple, error-free electrical connection.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Details

  • Brand: Lennox / Armstrong / Ducane
  • Manufacturer: Lennox International
  • Part Number: 47W86 (100483-23)
  • Weight: 9.05 lbs
  • Horsepower: 1/10 HP
  • Voltage: 208-230V
  • Phase: 1 Phase (Single Phase)
  • RPM: 1075
  • Frequency: 60 Hz
  • Frame Size: 42Y Frame (5.0" Diameter)
  • Capacitor Required: 5 MFD / 370V (Sold Separately)

description

Lennox 47W86 Condenser Fan Motor - 1/10 HP 1075 RPM 208-230V 1PH 100483-23 OEM Replacement

The 47W86 is a genuine OEM replacement motor specifically engineered for Lennox, Armstrong, and Ducane condensing units. As the primary component responsible for heat rejection, this motor serves as the "cooling driver" that pulls ambient air across the outdoor coils to maintain safe compressor head pressures. Designed as a direct replacement for the 100483-23, it ensures that your system maintains its factory-specified airflow curve. Unlike universal motors that require shaft cutting or bracket modifications, this motor is built to the exact physical and electrical tolerances required by the XC, XP, and 13ACX series platforms.

Key Features

  • Exact OEM Specification: The 47W86 is the factory-authorized replacement for the 100483-23, ensuring 100% compatibility with existing mounting brackets and fan blades.
  • Optimized 1075 RPM Performance: Delivers the precise rotational speed required to pull air through the condenser coil without overloading the motor windings.
  • Sealed Bearing System: Features permanently lubricated ball bearings designed to handle the vertical-shaft-down orientation common in residential condensing units.
  • Internal Thermal Protection: Includes an automatic reset thermal overload protector that prevents the motor from burning out during extreme ambient heat spikes.
  • Quiet Operation Profile: Engineered to eliminate the harmonic "hum" often associated with non-OEM motors, restoring your system to its original factory sound levels.

Product Details

  • Brand: Lennox / Armstrong / Ducane
  • Manufacturer: Lennox International
  • Part Number: 47W86 (100483-23)
  • Weight: 9.05 lbs
  • Horsepower: 1/10 HP
  • Voltage: 208-230V
  • Phase: 1 Phase (Single Phase)
  • RPM: 1075
  • Frequency: 60 Hz
  • Frame Size: 42Y Frame (5.0" Diameter)
  • Capacitor Required: 5 MFD / 370V (Sold Separately)

🛠️ HVAC Depot Pro Tip

"Take a Picture First"—Before removing the original 100483-23, photograph the wire colors and their terminal positions on the contactor and capacitor. When installing the 47W86, verify that the motor shaft spins freely before tightening the fan blade hub. Always replace the 5 MFD run capacitor simultaneously; a weakened capacitor is the number one cause of motor "cycling" on thermal overload, which can lead to premature failure of your new part.

Cross-Reference

  • Direct Replacement: 100483-23, 47W8601
  • Superseded / Legacy: 12F49, 12F4901, 47M86, 97M50
  • Drawing / Factory Number: YFK-73.5L-6
  • White-Rodgers / Emerson Equivalent: K48HXGZ-4210

Model Compatibility

  • 13ACX (Suffixes: 018-230, 024-230, 030-230)
  • 13HPX (Suffixes: 018-230, 024-230)
  • 4AC13L (Suffixes: 18P, 24P, 30P)
  • 4HP13L (Suffixes: 18P, 24P)
  • W2C3 (Suffixes: 18A, 24A, 30A)



Specification

Refund policy

Refund & Return Policy

Last Updated: June 2026

At HVAC Parts & Equipment Depot, customer satisfaction is important to us. This Refund & Return Policy explains how returns, exchanges, and refunds are handled for purchases made through TopHVACParts.com.

Return Eligibility

We accept returns within 30 days of delivery.

To qualify for a return:

  • The item must be unused, uninstalled, and in its original condition.
  • The item must be returned in its original packaging.
  • Model numbers and serial numbers must match the original purchase records.
  • Proof of purchase or order confirmation is required.

Non-Returnable Items

The following items are not eligible for return or refund:

  • Installed or used parts.
  • Products showing signs of installation, modification, or damage caused after delivery.
  • Items missing original packaging.
  • Sale or clearance items.
  • Special-order or custom-order products.
  • Returns requested more than 30 days after delivery.

Restocking Fee

Approved returns may be subject to a 20% restocking fee.

The restocking fee will be deducted from the refund amount after the returned item has been inspected and approved.

Damaged, Defective, or Incorrect Items

If you receive a damaged, defective, or incorrect item, please contact us within 7 days of delivery.

Email: support@tophvacparts.com
Phone: (214) 734-5222

We may request photographs and additional information to help process your claim.

If the claim is approved, we will provide a replacement, exchange, or refund at no additional cost to you.

Exchanges

We replace items only if they are defective, damaged upon arrival, or incorrectly shipped.

To request an exchange, contact us at:

support@tophvacparts.com

Refund Process

Once your return is received and inspected, we will notify you by email regarding approval or rejection of your refund request.

If approved:

  • Refunds will be issued to the original payment method.
  • Processing typically takes 7–14 business days after approval.
  • Your financial institution may require additional time before the refund appears in your account.

Return Shipping

Customers are responsible for return shipping costs unless the return is the result of:

  • Our shipping error,
  • A defective product,
  • A damaged product received upon delivery.

Original shipping charges are non-refundable.

We recommend using a trackable shipping service and purchasing shipping insurance for higher-value items.

Return Address

HVAC Parts & Equipment Depot
1135 E Plano Parkway, Suite 8
Plano, TX 75074
United States

Professional Installation Notice

Many HVAC products require installation by a licensed HVAC professional.

HVAC Parts & Equipment Depot is not responsible for damages resulting from improper installation, misuse, unauthorized modifications, or failure to follow manufacturer instructions.

Special Orders

Special-order products must be picked up within 30 days of purchase unless other arrangements have been approved.

Unclaimed special-order products may be returned to the manufacturer and may be subject to applicable restocking fees.

Contact Us

If you have questions regarding returns, refunds, or exchanges, please contact us:

HVAC Parts & Equipment Depot

Phone: (214) 734-5222
Email: support@tophvacparts.com
