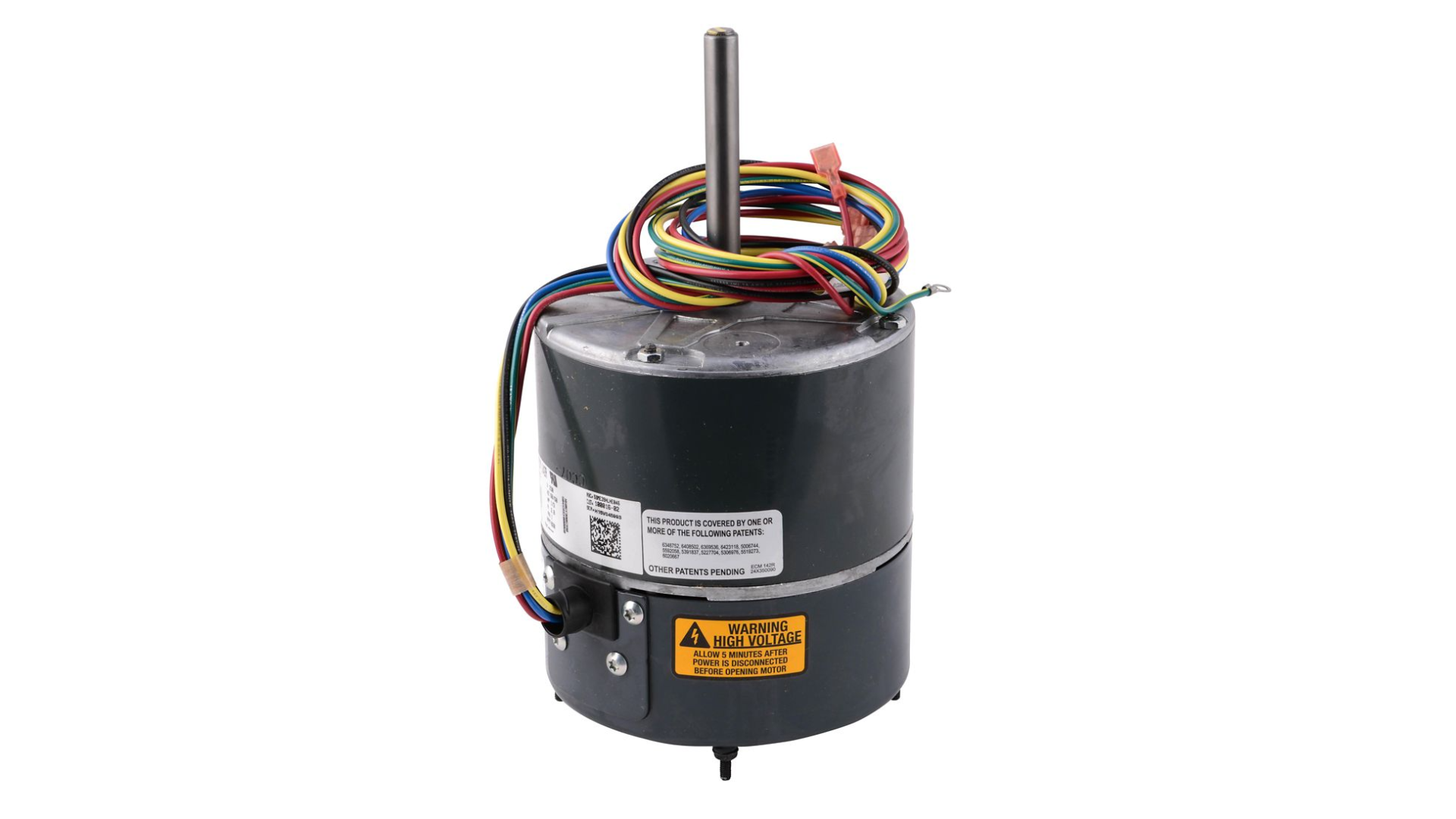

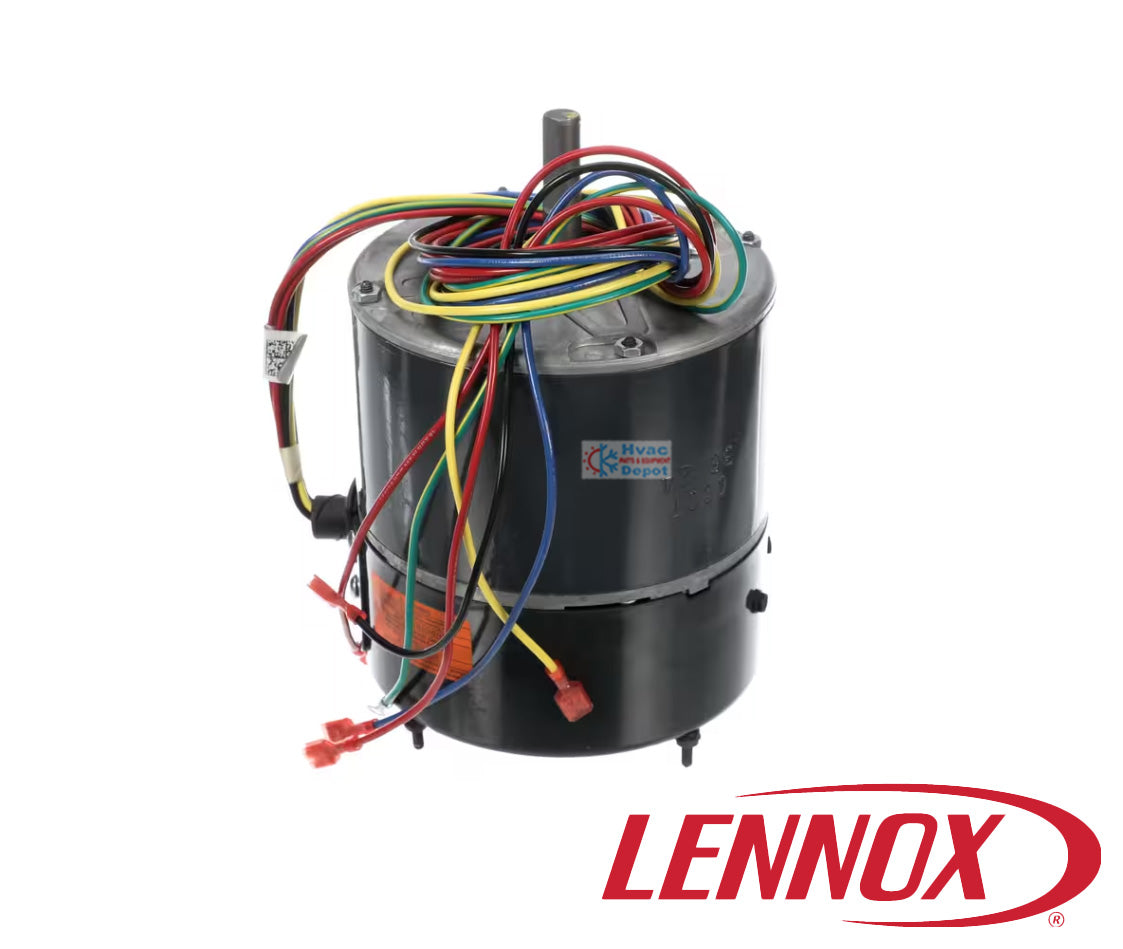

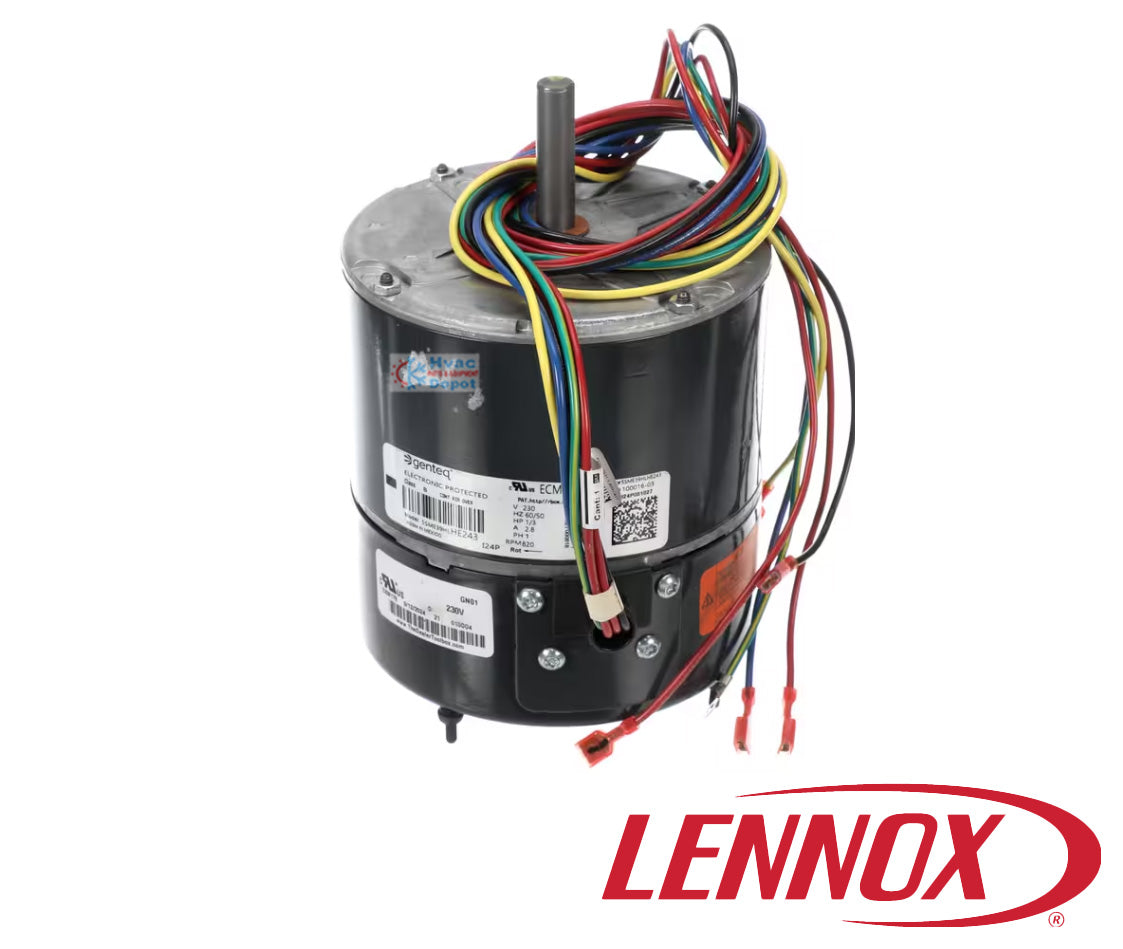

Lennox 63W62 | 100016-03 Condenser Fan Motor 1/3 HP 208-230V Variable Speed

Lennox 63W62 | 100016-03 Condenser Fan Motor 1/3 HP 208-230V Variable Speed

Low stock: 1 left

Regular price $749.00 USD
Regular price Sale price $749.00 USD
Sale Sold out
Shipping calculated at checkout.

Key Features & Specifications

  • Genuine Lennox OEM ECM variable speed condenser motor ensures peak system efficiency.

  • Power specifications: 1/3 HP, 208-230V single-phase power, 2.8 Amps.

  • Variable RPM (0-820 range) allows for precise airflow control and reduced energy consumption.

  • Durable 48-Frame, 1/2" shaft design with robust ball bearings for quiet, long-lasting outdoor use.

  • Variable speed functionality contributes significantly to improved SEER ratings in compatible units.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

description

Lennox 63W62 | 100016-03 Condenser Fan Motor 1/3 HP 208-230V Variable Speed

The Lennox 63W62 is a genuine OEM Electronically Commutated Motor (ECM) condenser fan motor, specifically designed for use in high-efficiency Lennox and Allied HVAC outdoor units. This motor is essential for precise airflow regulation over the condenser coil, which optimizes the heat exchange process and drastically improves the overall SEER (Seasonal Energy Efficiency Ratio) rating of the system.

Key Features:

Variable Speed Operation: Utilizes ECM technology to adapt fan speed in real-time based on system demand, ensuring optimal cooling and efficiency.

Energy Efficient Design: This motor helps reduce utility costs by consuming less energy during partial load conditions compared to traditional fixed-speed motors.

Quiet Performance: Features advanced ball bearings to minimize friction and noise levels, providing exceptionally smooth and quiet outdoor operation.

Durable Outdoor Construction: Built with a high-quality steel frame and aluminum flange to withstand external weather conditions and resist corrosion.



Product Details:

  • Feature: Specification
  • Horsepower: 0.33 HP (1/3 HP)
  • Voltage: 208-230V
  • Phase:  1 Phase
  • RPM: Variable (0-820 RPM)
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Frame Size:  48
  • Bore (Shaft Diameter): 0.50 inches x 2 inches
  • Enclosure Type: ODP (Open Drip Proof)
  • Weight: 12.12 lbs
  • Motor Type: ECM (Electronically Commutated Motor)


🛠️ HVAC Depot Pro Tip:

This motor is an ECM motor and does not use a traditional run capacitor. Its speed is controlled by internal electronics or an external control board. If you are troubleshooting this part, ensure all low-voltage control signals from the main board are present before condemning the motor itself. Incorrect wiring can permanently damage the sensitive ECM module.

Cross-Reference:

Manufacturer: Lennox / Armstrong / Ducane

Drawing/X Numbers: 100016-03

Legacy Numbers: 98M39, R100016-02


Model Compatibility:

Compatible with a wide range of Lennox high-efficiency air conditioners and heat pumps, including:

XC16-048-230-4

XP16-060-230-5

ML14XC1-059-230A-03

14ACX-059-230-06

EL16XP1-048-230A-01

ML16XP1-060-230A-01

SSB048H4S43Y-3
