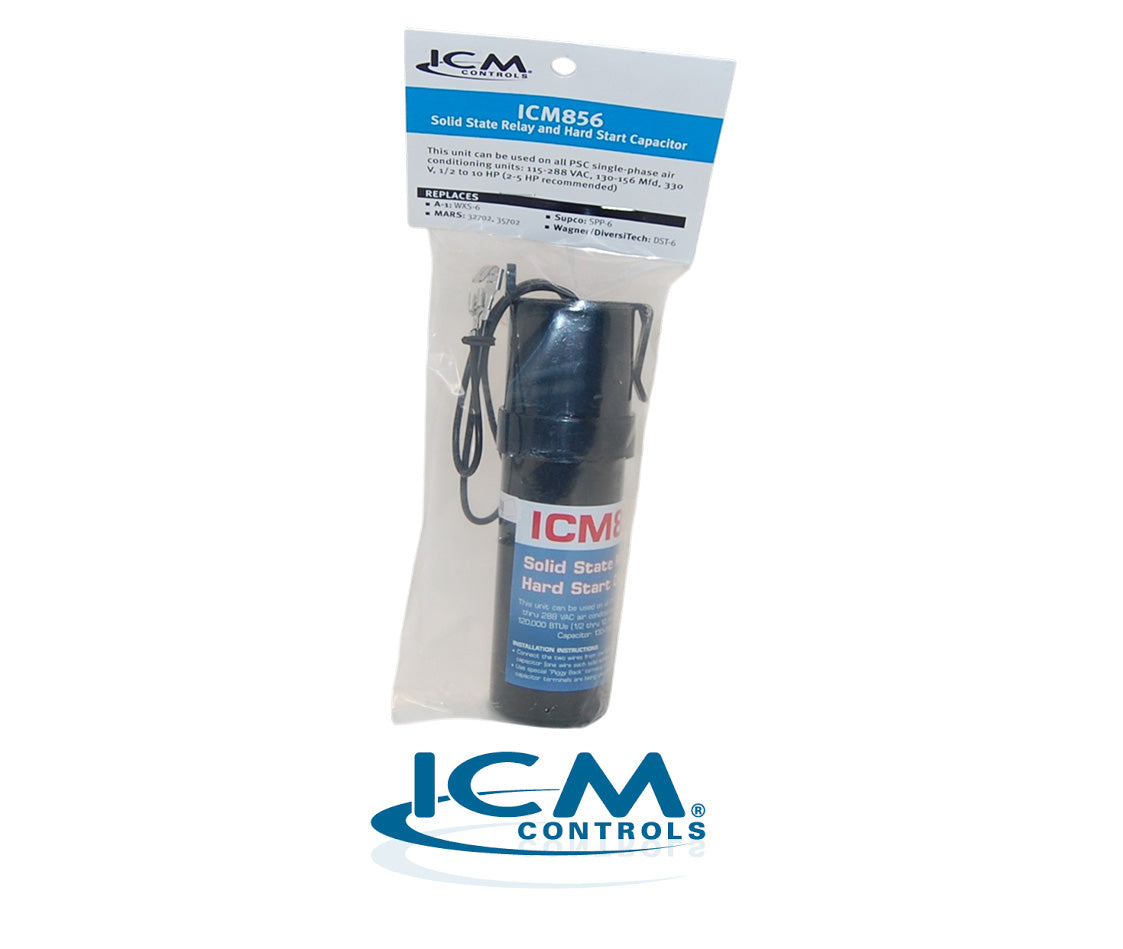

ICM856 PTCR Hard Start Kit – 130-156 MFD, 115-288 VAC, 1/2 to 10 HP

Name: ICM856 PTCR Hard Start Kit – 130-156 MFD, 115-288 VAC, 1/2 to 10 HP
Brand: ICM
SKU: ICM856
Price: 40.86 USD
Availability: InStock

Low stock: 2 left

$40.86 USD

Sale Sold out

Shipping calculated at checkout.

Key Features & Specifications

PTCR hard start kit increases compressor starting torque by up to 500%
130-156 MFD start capacitor for 115-288 VAC systems
Simple two-wire installation with automatic PTC relay operation
Compatible with compressors from 1/2 HP to 10 HP
Replaces Supco SPP-6, MARS 32702/35702, A-1 WXS-6, and DiversiTech DST-6

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Details and Key Specifications

Part Number: ICM856
Manufacturer: ICM Controls
Part Type: PTCR Hard Start Kit
Capacitor Rating: 130-156 MFD
Maximum Capacitor Voltage: 330 VAC
Operating Voltage: 115-288 VAC
Horsepower Range: 1/2 HP to 10 HP
Recommended Range: 2 HP to 5 HP
Number of Wires: 2
Relay Type: Positive Temperature Coefficient (PTCR)
Application: Air Conditioners, Heat Pumps, Refrigeration Equipment
Dimensions: Approximately 5.75" H × 2.38" W × 2.00" D
Shipping Weight: Approximately 0.55 lbs

description

ICM Controls ICM856 PTCR Hard Start Kit – 130-156 MFD, 115-288 VAC, 1/2 to 10 HP

The ICM Controls ICM856 PTCR Hard Start Kit is a high-performance aftermarket motor starting device designed to improve compressor starting torque in residential and light commercial air conditioning and heat pump systems. Utilizing Positive Temperature Coefficient (PTC) technology, the ICM856 helps reduce compressor startup stress, minimizes voltage drop during startup, and extends compressor life by delivering additional starting torque when it is needed most. It is recommended for compressors ranging from 1/2 HP to 10 HP, with optimal performance in 2 to 5 HP applications.

The ICM856 features a 130-156 MFD start capacitor, operates on 115-288 VAC, and installs quickly with a simple two-wire connection. Designed as a cost-effective replacement for several popular hard start kits, it provides up to 500% increased starting torque, making it an excellent solution for aging compressors, low-voltage conditions, and systems experiencing hard starting.

Key Features and Function

Increases Starting Torque up to 500% – Helps compressors start quickly and efficiently under difficult conditions.
PTCR Technology – Positive Temperature Coefficient relay automatically removes the start capacitor from the circuit after startup.
Universal Two-Wire Installation – Fast and easy installation without additional relays.
Extends Compressor Life – Reduces startup stress and electrical strain.
Ideal for Hard Starting Compressors – Excellent for older systems and low-voltage applications.

Product Details and Key Specifications

Part Number: ICM856
Manufacturer: ICM Controls
Part Type: PTCR Hard Start Kit
Capacitor Rating: 130-156 MFD
Maximum Capacitor Voltage: 330 VAC
Operating Voltage: 115-288 VAC
Horsepower Range: 1/2 HP to 10 HP
Recommended Range: 2 HP to 5 HP
Number of Wires: 2
Relay Type: Positive Temperature Coefficient (PTCR)
Application: Air Conditioners, Heat Pumps, Refrigeration Equipment
Dimensions: Approximately 5.75" H × 2.38" W × 2.00" D
Shipping Weight: Approximately 0.55 lbs

🛠️ HVAC Depot Pro Tip: Hard Starting Compressor?

If your compressor struggles to start, especially during hot weather or under low-voltage conditions, installing a hard start kit like the ICM856 can significantly reduce startup amperage and improve compressor reliability. Always verify that the compressor itself is mechanically sound before installing a hard start kit.

Cross-Reference & Compatibility

The ICM856 directly replaces several popular PTCR hard start kits.

OEM / Cross References:

A-1 Components: WXS-6
MARS: 32702
MARS: 35702
Supco: SPP-6
Wagner / DiversiTech: DST-6

Extensive Model Compatibility List

Compatible with most residential and light commercial:

Air Conditioning Systems
Heat Pump Systems
Refrigeration Equipment
Scroll Compressors
Reciprocating Compressors
Rotary Compressors

Supports compressors from 1/2 HP through 10 HP, with best performance on 2-5 HP systems. Always verify compressor specifications before installation.
