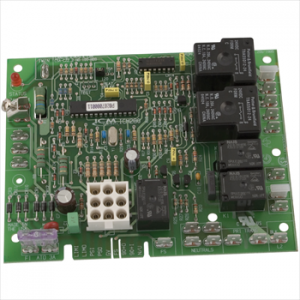

ICM282B Furnace Replacement Control Board | Carrier HK42FZ Direct Replacement

ICM282B Furnace Replacement Control Board | Carrier HK42FZ Direct Replacement

Out of stock

Regular price $261.92 USD
Regular price Sale price $261.92 USD
Sale Sold out
Shipping calculated at checkout.

Quick Specs & Compatibility Guide

  • Direct Replacement for Carrier HK42FZ Series. Replaces major OEM boards including HK42FZ004, HK42FZ011, and 325878-751. Ensures a wire-for-wire match for fast installation.

  • Voltage Range: 98–132 VAC @ 60 Hz. Designed for fixed-speed furnaces with high-capacity relays for cool blowers (10A @ 120 VAC) and ignitors (5A @ 120 VAC).

  • 100% Gas Shutoff Safety. Microprocessor-based control provides 100% gas shutoff upon ignition failure, plus built-in reverse polarity and secondary brownout protection.

  • Built-in LED Diagnostics. Features an onboard LED that provides clear flash codes for instant troubleshooting of ignition, flame-sense, or safety-switch issues.

  • Twinning Compatible. Allows two ICM282B boards to synchronize in dual-furnace setups. Compatible with all standard 24 VAC thermostats (non-communicating).

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Technical Specifications:

  • Feature: Rating / Detail
  • Input Voltage: 98-132 VAC @ 60 Hz
  • Ignitor Output: 5A @ 120 VAC
  • Cool Blower: 10A @ 120 VAC
  • Heat Blower: 5A @ 120 VAC
  • Inducer Motor: 4A @ 120 VAC
  • Gas Valve: 1.5A @ 24 VAC
  • Thermostat: Compatible with standard 24 VAC thermostats

description

ICM Controls ICM282B Furnace Control Board | Replaces Carrier HK42FZ Series

Is your furnace failing to ignite or experiencing blower motor issues? The ICM282B is a high-performance, microprocessor-based replacement board specifically engineered for Carrier, Bryant, and Payne fixed-speed furnaces. This American-made control module replaces the discontinued Carrier HK42FZ series, offering a cost-effective, plug-and-play repair solution. Fix your Carrier furnace fast with the ICM282B control board. Direct replacement for HK42FZ004, HK42FZ011, and more. Features diagnostic LEDs & easy 24V installation. Made in the USA.


Why the ICM282B is the Best Choice for Your Repair:

  • Precision Control: Manages the ignition sequence, gas valve, inducer motor, and blower speeds with microprocessor accuracy.
  • Advanced Troubleshooting: Integrated diagnostic LED provides flash codes for common furnace faults (like flame rollout or limit switch lockouts), saving you hours in repair time.
  • Enhanced Protection: Built-in reverse polarity and secondary brownout protection safeguard your furnace's electrical system from power spikes.
  • System Twinning: Fully compatible with twinned furnace setups, allowing two ICM282B boards to synchronize blower operation.


Carrier & Bryant Cross-Reference Guide

This board is a direct, wire-for-wire replacement for the following OEM part numbers:

Carrier / Bryant / Payne:

  • HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034

Model Codes:

  • CEBD431012-01A, CEPL1311012-01, 325878-751


Technical Specifications:

  • Feature: Rating / Detail
  • Input Voltage: 98-132 VAC @ 60 Hz
  • Ignitor Output: 5A @ 120 VAC
  • Cool Blower: 10A @ 120 VAC
  • Heat Blower: 5A @ 120 VAC
  • Inducer Motor: 4A @ 120 VAC
  • Gas Valve: 1.5A @ 24 VAC
  • Thermostat: Compatible with standard 24 VAC thermostats


Installation Tip:

Before removing your old Carrier board, take a photo of the wiring. The ICM282B includes a custom wiring harness adapter to ensure a secure fit for different HK42FZ configurations. Ensure the unit is powered off and grounded before installation to prevent electrostatic discharge (ESD)
