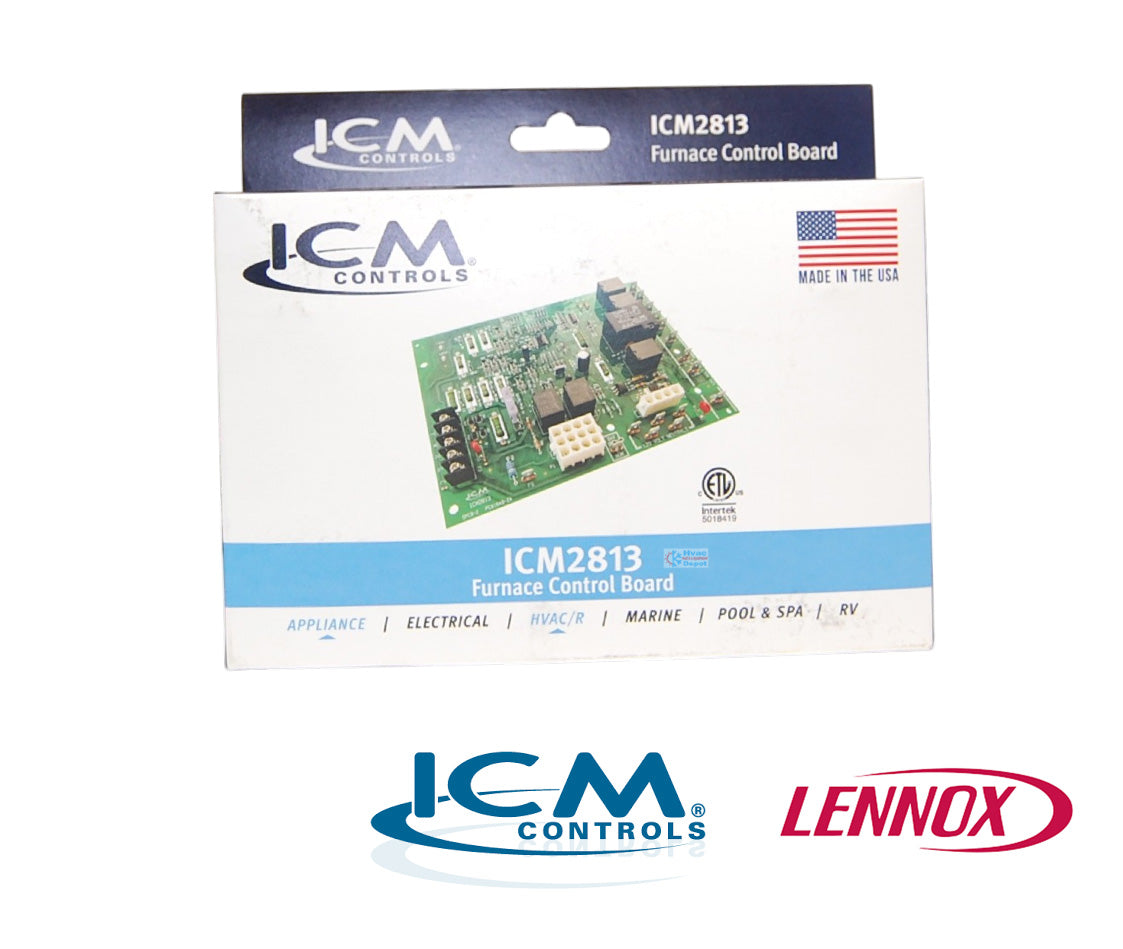

ICM2813 Lennox Furnace Control Replacement Board 10M9301 | 12L6901

Name: ICM2813 Lennox Furnace Control Replacement Board 10M9301 | 12L6901
Brand: HVAC Parts and Equipment Depot
SKU: ICM2813
Price: 174.99 USD
Availability: InStock

Low stock: 3 left

$174.99 USD

Sale Sold out

Shipping calculated at checkout.

Lennox SureLight Replacement Specs

Direct Lennox SureLight® Replacement. Specifically engineered to replace Lennox 10M9301 and the White-Rodgers 50A65 series. Ideal for restoring Hot Surface Ignition (HSI) systems.
Onboard Diagnostic LEDs. Simplifies troubleshooting by providing flash codes for system faults, safety switch trips, and ignition failures.
Full Safety Circuit Oversight. Continuously monitors high limit, rollout, and auxiliary limit switches to ensure 100% safe furnace operation.
Heavy-Duty Relays. Supports 2-speed circulating blowers (9.5 FLA) and inducer draft motors (2.2 FLA) with precision microprocessor timing.
Wide Temperature Tolerance. Built to operate in extreme environments ranging from -40°F to 176°F with a 5% to 95% non-condensing humidity range.

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Technical Specifications:

Input Voltage: 18-30 VAC, 60 Hz
Ignitor Current: 2.0 Amp @ 80 VAC, 60 Hz
Inducer Relay: 2.2 FLA / 3.5 LRA @ 120 VAC
Blower Relay: 9.5 FLA / 25.0 LRA @ 120 VAC (2-Speed)
Gas Valve Relay: 1.5 Amp @ 25 VAC
Operating Temp: -40°F to 176°F (-40°C to 80°C)
Electrical rating: @ 77°F (25°C)
Gas valve relay: 1.5 amp @ 25 VAC, 60 Hz 0.6 pf

description

ICM Controls Gas Furnace Control Board

The ICM Controls ICM2813 is an engineered direct-hire original equipment manufacturer (OEM) replacement furnace control board designed explicitly for single-stage gas systems. This microprocessor-based component regulates fundamental automated cycles, safely orchestrating the operation of the hot surface ignitor, gas valve, inducer draft motor, and the main circulating blower. Engineered for compatibility across specific Lennox equipment families, this module provides seamless form, fit, and functional execution within the Lennox SureLight platform. This replacement board utilizes advanced system software engineered to properly optimize safety timings and airflow controls for multi-speed circulating blower platforms.

Key Features

Direct OEM Replacements: Engineered to seamlessly drop into critical applications, the ICM2813 provides a standard physical and electrical profile to replace old or obsolete furnace control modules without modifications.
Noisy Relay Resolution: Features high-quality copper contacts and specialized heavy-duty relays designed to isolate electrical arc frequencies, permanently resolving humming, clicking, or chatter issues caused by aged components.
Comprehensive Safety Circuit Interlocks: Monitors safety devices continuously, actively assessing rollout switches, limit controls, and pressure parameters to guarantee 100% immediate gas shutoff upon an ignition safety failure.
Onboard Self Diagnostics: Integrates a clear red diagnostic LED array to accelerate troubleshooting by generating explicit error flash codes to signal lockouts, flame sensing faults, or incorrect supply polarity.

Product Details

Brand: ICM Controls
Manufacturer: ICM Controls
Part Number: ICM2813
SKU: ICM2813
UPC: 800442016337
Shipping Weight: 2.5 lbs
Low Voltage Input: 18-30 VAC @ 50/60 Hz
Gas Valve Output Rating: 1.5A @ 25 VAC
Inducer Relay Rating: 2.2 FLA / 3.5 LRA @ 120 VAC
Hot Surface Ignitor Output: 2.0A @ 80 VAC
Circulating Blower Relay Contact: 14.5 FLA / 25.0 LRA @ 120 VAC
Operating Temperature Limit Range: -40°F to 176°F
Relative Humidity Operating Range: 5% to 95% non-condensing
Ignition Type: Hot Surface Ignition (HSI)

🛠️ HVAC Depot Pro Tip

Always remember to disconnect the master circuit breaker or high-voltage emergency service switch before accessing the furnace vestibule blower section. Take a clear digital picture of all the existing field wiring connections and multi-pin molex harnesses on your original board before separating any terminals. Transfer each terminal wire individually to the matching terminal point on the replacement board to avoid cross-wiring the line and neutral polarity. Once safely installed, apply power and perform a visual check using your multimeter across terminals R and C to verify a stable 24 VAC secondary transformer output voltage before initiating a thermostat heating demand.

Cross-Reference

Lennox Factory Part Number: 23W5101
Lennox Alternate Part Number: 30W2501
Lennox SureLight Series Module: 10M9301
Lennox Legacy Assembly Profile: 12L6901
Lennox Automated Production Run: 56L8401
White-Rodgers Replacement Equivalent: 50M56U-843

Model Compatibility

G24M Series (Suffixes: ALL, 045, 060, 075)
G32V Series (Suffixes: 035, 045, 060, 075)
G51MP Series (Suffixes: ALL, E-035, E-045, E-060)
G61MPV Series (Suffixes: 035C, 045C, 060C, 075C)
ML180 Series (Suffixes: A-045, A-060, A-075, A-090)
ML195 Series (Suffixes: ALL, 045, 060, 075, 090)
