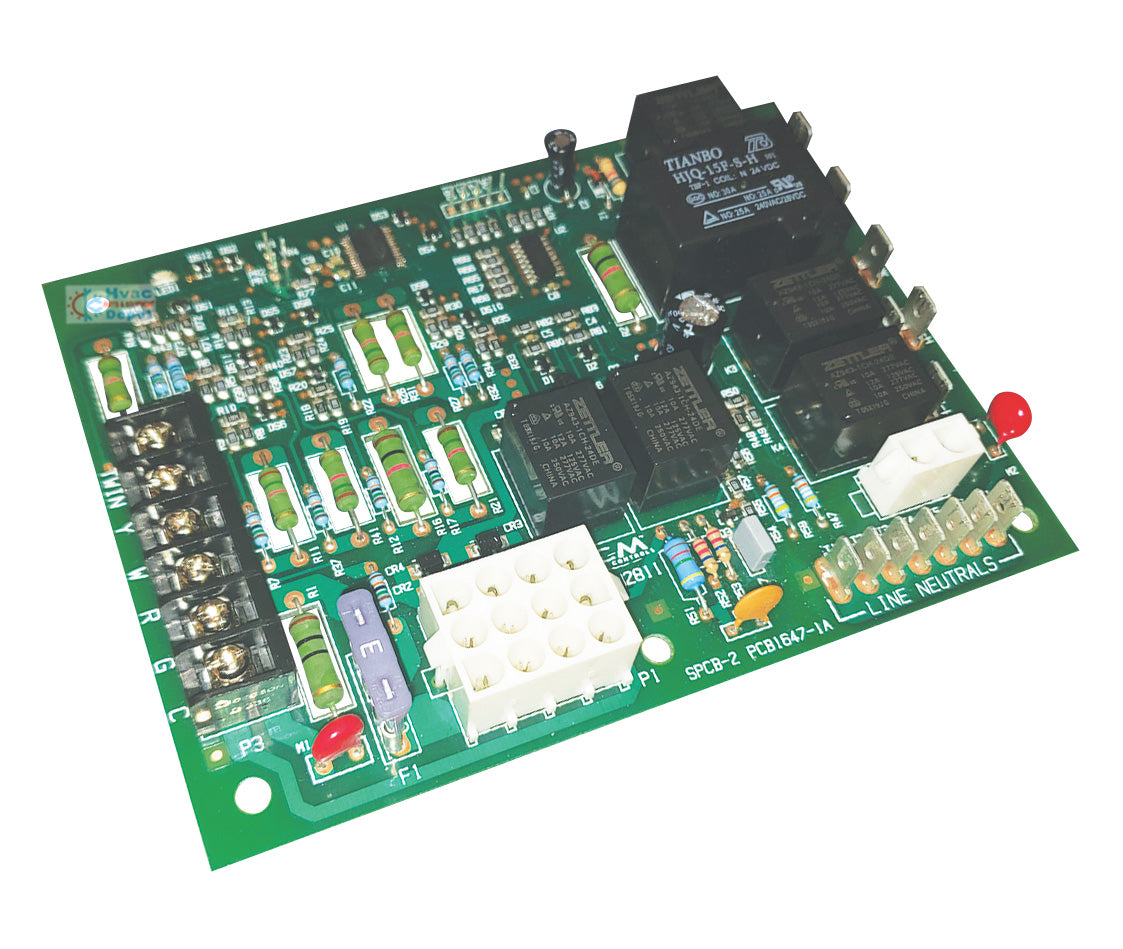

ICM2811 Furnace Control Board | Goodman & Amana PCBBF112 Replacement | Replaces 0130F00005
ICM2811 Furnace Control Board | Goodman & Amana PCBBF112 Replacement | Replaces 0130F00005
Out of stock
Goodman & Amana Technical Highlights
-
Direct Goodman PCBBF Replacement. Engineered to replace Goodman PCBBF112, PCBBF123, and White-Rodgers 50A55-743 controls.
-
Onboard Fault Code LEDs. Includes a diagnostic LED that provides clear flash codes for fast troubleshooting of system and safety switches.
-
Built-in Circuit Protection. Features reverse polarity protection and 100% gas shutoff safety for maximum system security.
-
Twinning Compatible. Capable of working in tandem with another ICM2811 board for synchronized operation in twinned furnace systems.
-
Heavy-Duty Output. Rated to handle up to 6.0A for ignitors and 14.5A for two-speed circulating blower motors.
Please visit our store for pick up.
Couldn't load pickup availability
safe & secure Checkout
Specifications
Specifications
Technical Specifications:
- Control Voltage: 18-30 VAC, 60 Hz
- Ignitor Current: 6.0 Amp @ 120 VAC
- Inducer Relay: 2.2 FLA / 3.5 LRA @ 120 VAC
- Blower Relay: 14.5 FLA / 25.0 LRA @ 120 VAC (2-Speed)
- Gas Valve Relay: 1.5 Amp @ 25 VAC
- Operating Temp: -40°F to 176°F
- Input Voltage: 120 VAC
- Humidity Range: 5 to 95% relative humidity (non-condensing)
- Electrical Ratings were made at 77°F (25°C)
description
description
Reliable Control for Your Goodman or Amana Furnace
Stop your furnace from blowing cold air or failing to ignite with the ICM2811. This American-made, microprocessor-based control board is a direct form, fit, and functional replacement for Goodman, Amana, and Janitrol OEM parts. Specifically designed for Hot Surface Ignition (HSI) systems, it manages the gas valve, inducer draft motor, and circulating blower with precision.
Why the ICM2811 is the Smart Choice for Repairs:
- Direct OEM Replacement: Seamlessly replaces common Goodman part numbers like PCBBF112, PCBBF123, and 0130F00005.
- Advanced Diagnostics: Features a built-in diagnostic LED that illuminates specific flash codes, allowing you or a technician to troubleshoot pressure switches, limit switches, or flame sense issues in seconds.
- Safety & Reliability: Includes a 100% gas shutoff feature in case of ignition failure and integrated reverse polarity protection to safeguard your system's electronics.
- Twinning Compatible: Ready for dual-furnace setups, this board can be twinned with another ICM2811 to synchronize blower operation across two units.
Goodman & White-Rodgers Cross-Reference:
This board is a wire-for-wire replacement for the following part numbers:
Goodman / Amana / Janitrol:
- PCBBF110
- PCBBF110S
- PCBBF112
- PCBBF112S
- PCBBF123
- PCBBF123S
- 0130F00005
- 0130F00005S
- B18099-26
- B18099-26S
White-Rodgers:
- 50A55-743
- 50A55-289
- 50T55-289
Technical Specifications:
- Control Voltage: 18-30 VAC, 60 Hz
- Ignitor Current: 6.0 Amp @ 120 VAC
- Inducer Relay: 2.2 FLA / 3.5 LRA @ 120 VAC
- Blower Relay: 14.5 FLA / 25.0 LRA @ 120 VAC (2-Speed)
- Gas Valve Relay: 1.5 Amp @ 25 VAC
- Operating Temp: -40°F to 176°F
- Input Voltage: 120 VAC
- Humidity Range: 5 to 95% relative humidity (non-condensing)
- Electrical Ratings were made at 77°F (25°C)
Pro-Tip: Solve the "No Ignition" Mystery
When installing the ICM2811, ensure your furnace has a solid, clean ground connection. Because this board uses a microprocessor for "Flame Sensing," a weak ground is the #1 reason for a "No Flame Detected" fault code—even if your ignitor is glowing. Before finalizing your install, take a piece of steel wool or sandpaper to the ground screw area to ensure metal-to-metal contact. This small step often solves intermittent ignition failures that look like a "bad board" but are actually just a ground loop issue!
