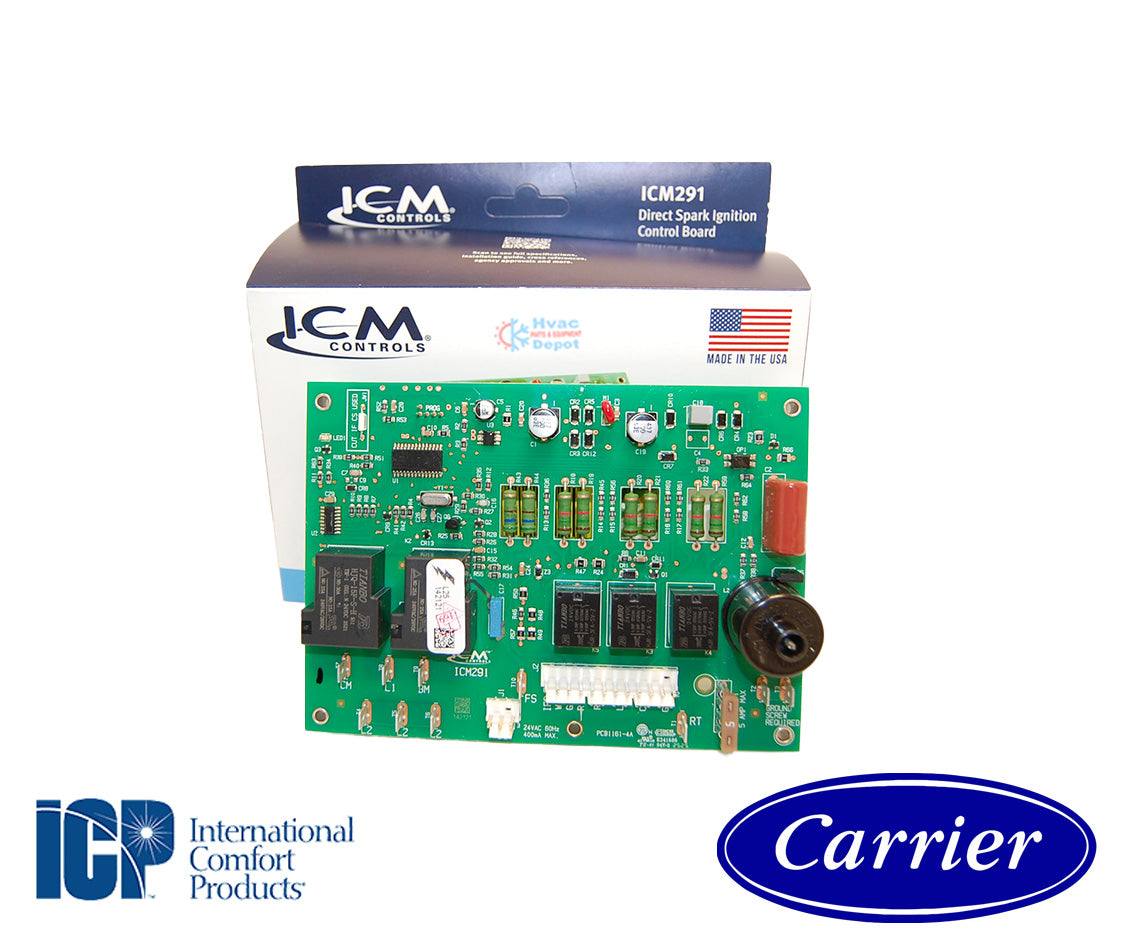

ICM291 Two-Speed Furnace Control Board – Replacement for ICP 1171166 & Carrier 1010738

Name: ICM291 Two-Speed Furnace Control Board – Replacement for ICP 1171166 & Carrier 1010738
Brand: HVAC Depot
SKU: ICM291-LH33WP003A
Price: 295.00 USD
Availability: InStock

Low stock: 2 left

$295.00 USD

Sale Sold out

Shipping calculated at checkout.

Carrier/Bryant/Payne 208/230V Specs

Direct Carrier LH33WP003A Replacement. Engineered as a form, fit, and functional direct
replacement for specific 208/230 VAC Carrier, Bryant, and Payne furnaces
208/230 VAC Line Voltage. Crucial: This board is for high-voltage systems only, not standard 115 VAC furnaces
Integrated LED Fault Codes. Onboard LED provides clear flash codes for fast troubleshooting of safety limits, pressure switches, and ignition sequence faults.
100% Lockout Safety Feature. Monitors timing and flame sensing, requiring a manual reset after a fault condition is detected.
Controls 2-Speed Blower Motors. Manages the combustion motor (using Hall Effect sensor feedback) and both indoor fan heat/cool speeds.

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Technical Specifications:

Ignition Type: Direct Spark Ignition (DSI)
Line Voltage: 208/230 VAC, 60 Hz
Control Voltage: 24 VAC (18-30 VAC), 60 Hz
Pre-Purge Time: 45 seconds
Trial for Ignition: 5 seconds ignition activation, 2 seconds flame establishing
Post-Purge Time: 45 seconds
Retry Period: Every 20 seconds for 15 minutes
Lockout: Manual reset
Post-Purge: 45 seconds
Power: RT and C
Thermostat Interface: R,W, and G
Safety Switches: RS, LS, and CS
Operating Temp: -40°F to 176°F (-40°C to 75°C)
Shipping Weight: 3.5
Height: 1.875
Width: 7
Length: 5

description

A Reliable 2-Speed Solution for ICP International Comfort Products Furnaces:

Is your high-efficiency furnace experiencing ignition lockouts or blower motor failures? The ICM291 is a robust, microprocessor-based control board designed as a direct, form, fit, and functional replacement for specific Carrier, Bryant, and Payne DSI (Direct Spark Ignition) systems operating on 208/230 VAC line voltage. This USA-made board manages all aspects of your system, including the two-speed blower motors and spark ignitor, ensuring safe and efficient operation. ICM 291 also monitors for safety issues like flame sensing and lockout. It features a status LED for fault diagnostics and is compatible with both natural and LP gas.

Why the ICM291 is the Right Choice for Your Repair:

DSI Technology: Manages the entire Direct Spark Ignition sequence, from pre-purge timing to flame sensing and lockout monitoring.
Dual Voltage Support: Designed specifically for 208/230 VAC line voltage applications (not 115V systems).
Two-Speed Motor Control: Features dedicated outputs for both heating (low speed) and cooling (high speed) blower motors, as well as the combustion motor hall effect sensor.
Advanced Diagnostics: An onboard status LED provides clear, flashing fault codes to simplify troubleshooting and maintenance.
100% Safety Lockout: Includes a robust 100% gas shutoff safety feature and manual reset lockout to prevent hazardous conditions.

Comprehensive Cross-Reference Guide

The ICM291 is a direct functional replacement for the following part numbers:

Carrier / Bryant / Payne:

LH33WP003A
LH33WP003
1171166

Technical Specifications:

Ignition Type: Direct Spark Ignition (DSI)
Line Voltage: 208/230 VAC, 60 Hz
Control Voltage: 24 VAC (18-30 VAC), 60 Hz
Pre-Purge Time: 45 seconds
Trial for Ignition: 5 seconds ignition activation, 2 seconds flame establishing
Post-Purge Time: 45 seconds
Retry Period: Every 20 seconds for 15 minutes
Lockout: Manual reset
Post-Purge: 45 seconds
Power: RT and C
Thermostat Interface: R,W, and G
Safety Switches: RS, LS, and CS
Operating Temp: -40°F to 176°F (-40°C to 75°C)
Shipping Weight: 3.5
Height: 1.875
Width: 7
Length: 5

Pro-Tip: Verify Your Voltage First

Before purchasing the ICM291, look at the wiring diagram inside your furnace access panel to confirm you have 208/230 VAC coming in. Installing this board in a standard 115 VAC system will cause immediate failure. This board is specifically for DSI (Direct Spark Ignition) Carrier systems that use higher line voltage.

Cross-Reference & Compatibility

The ICM291 is a direct functional replacement for the following part numbers

Carrier / Bryant / Payne: LH33WP003, LH33WP003A
ICP (Heil / Tempstar / Comfortmaker): 1171166
Goodman / Amana: 0130F00005S
Rheem / Ruud: 62-24140-04
