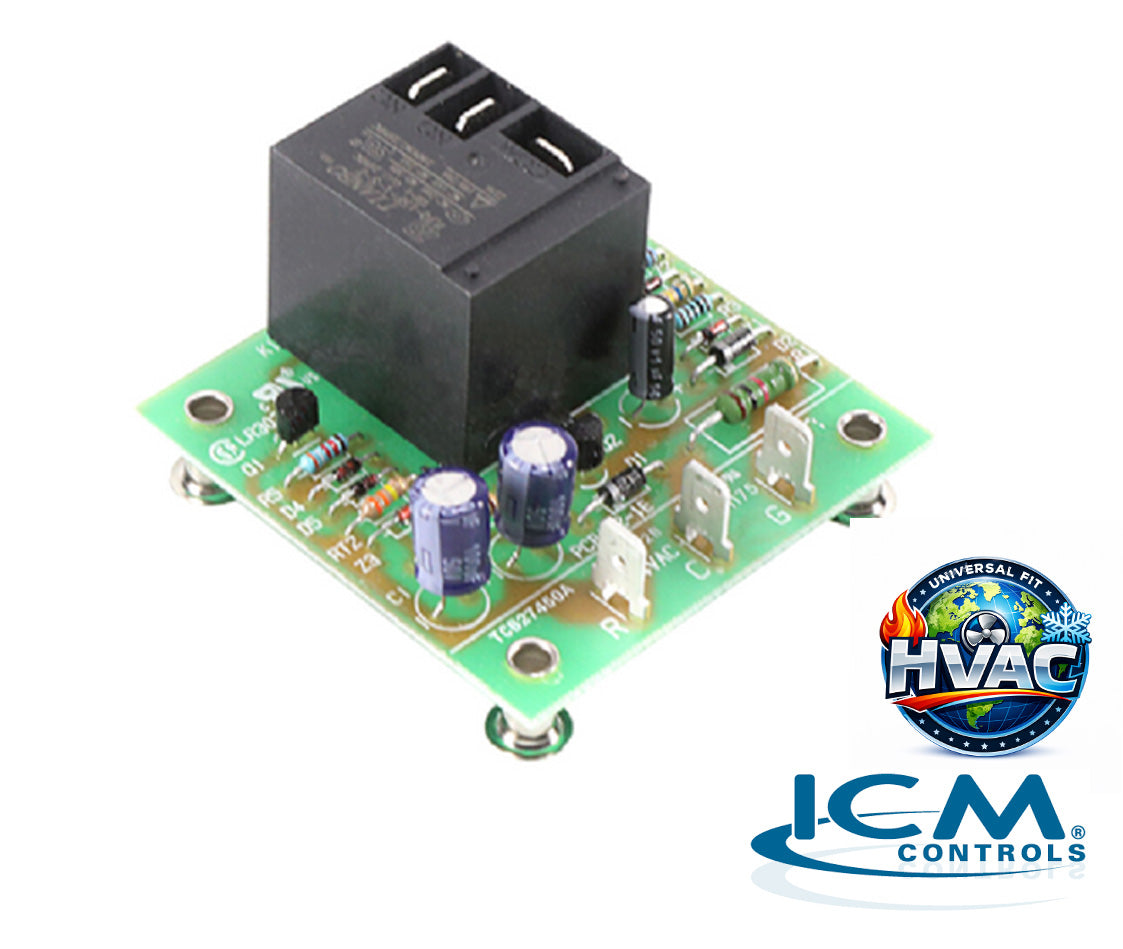

ICM255C Rheem Fan Blower Control | OEM Fixed Delay Timer
ICM255C Rheem Fan Blower Control | OEM Fixed Delay Timer
Low stock: 2 left
Item High-Level Highlights:
Please visit our store for pick up.
safe & secure Checkout
Specifications
Specifications
description
description
ICM255C – Genuine OEM Fan Blower Control (Dual On/Off Delay Timer, Fixed Time Delay)
The ICM ICM255C is a Genuine Original Equipment Manufacturer (OEM) dual-function fan delay timer in an open board design. It is engineered to control the circulating fan in heat pump, air conditioning, and forced air systems. This control ensures optimal comfort levels by providing a one-second on-delay to allow air to reach proper temperature before energizing the fan, and a fixed sixty-second off-delay to purge ducts of residual air, thereby increasing energy efficiency.
As an authentic OEM equivalent component, the ICM255C ensures reliable performance with a low-cost, open board design and high-power relay output. It operates on a standard 24 VAC control voltage (18 to 30 VAC input range) and is compatible with a wide range of residential and commercial HVAC equipment models, serving as a direct wire-for-wire replacement for many OEM control boards.
Key Features and Function:
- Dual Function Timer: Offers a 1-second on and 60-second off delay for heating and cooling cycles.
- Genuine OEM Quality: Meets or exceeds original manufacturer specifications for reliable timing and performance.
- Energy Efficiency: The 60-second off-delay clears ducts of residual conditioned air, increasing system efficiency.
- Wide Compatibility: Works with various HVAC models, including A-1, Bard, Mars, Rheem, and Snyder General/ICP systems.
Product Details and Key Specifications:
- Part Number: ICM255C
- Manufacturer: ICM Controls
- Part Type: Fan Blower Control / Fan Delay Timer
- Control Voltage: 24 VAC (18-30 VAC input range)
- Shipping Weight: 4 LB
- Frequency: 50/60 Hz
- Timing Range: 1-second ON delay; 60-second OFF delay (Fixed)
- Amperage Rating: 20 A
- Dimensions: 2.5 in L x 2.5 in W
- Material: Open board design
🛠️ HVAC Depot Pro Tip: Diagnosing Noisy Airflow
If the "On Delay" function is faulty, the system may produce cold air at startup during heating mode. If the fan shuts off immediately after the compressor stops cooling, the "Off Delay" function is likely the issue, resulting in wasted conditioned air. Test the function by ensuring the fan engages after a 1-second delay during heating and runs for exactly 60 seconds after the thermostat satisfies the call for heat.
Cross-Reference:
The ICM255C is a replacement for these OEM part numbers:
- OEM & Catalog Numbers: ICM255C, ICM255, 8201-056 (Bard), 1395336 (Snyder General/ICP).
- Brand Specific Replacements: Rheem 42-22515-01, 42-22515-02, 42-22515-03, 42-22515-04, Mars 32574.
