ICM Controls | Goodman Fan Blower Replacement Control Board | 18-30 VAC

ICM Controls | Goodman Fan Blower Replacement Control Board | 18-30 VAC

Low stock: 3 left

Regular price $88.50 USD
Regular price Sale price $88.50 USD
Sale Sold out
Shipping calculated at checkout.

Two-Stage Furnace Control Board Troubleshooting and Reliability

  • Replaces sticking heavy-duty fan relays to instantly silence structural humming noises, contact welding, and erratic fan startup speeds.

  • Incorporates a dedicated microprocessor architecture that retains factory-level 7-second start delays for consistent structural air temperature distribution.

  • Resolves high utility bills by managing post-cycle 65-second blower shutdowns to extract remaining residual thermal energy from ducted channels.

  • Prevents downstream transformer overloads and low-voltage shorts by leveraging an integrated, easily replaceable automotive-style safety fuse link.

  • Supports twin-furnace installations by allowing two separate control modules to coordinate air distribution perfectly across a shared duct network.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Details

  • Brand: ICM Controls
  • Manufacturer: ICM Controls
  • Part # / MPN: ICM277C
  • UPC / SKU: 602594611413
  • Shipping Weight: 0.60 lbs
  • Control Voltage Range: 18 to 30 VAC
  • Input Power Voltage: 18 to 30 VAC
  • Normally Open (N.O.) Contact Rating: 20 Amps
  • Normally Closed (N.C.) Contact Rating: 10 Amps
  • Blower On Time Delay: 7 Seconds
  • Blower Off Time Delay: 65 Seconds
  • Maximum Relative Operating Humidity: 95% Non-condensing
  • Country of Origin: United States

description

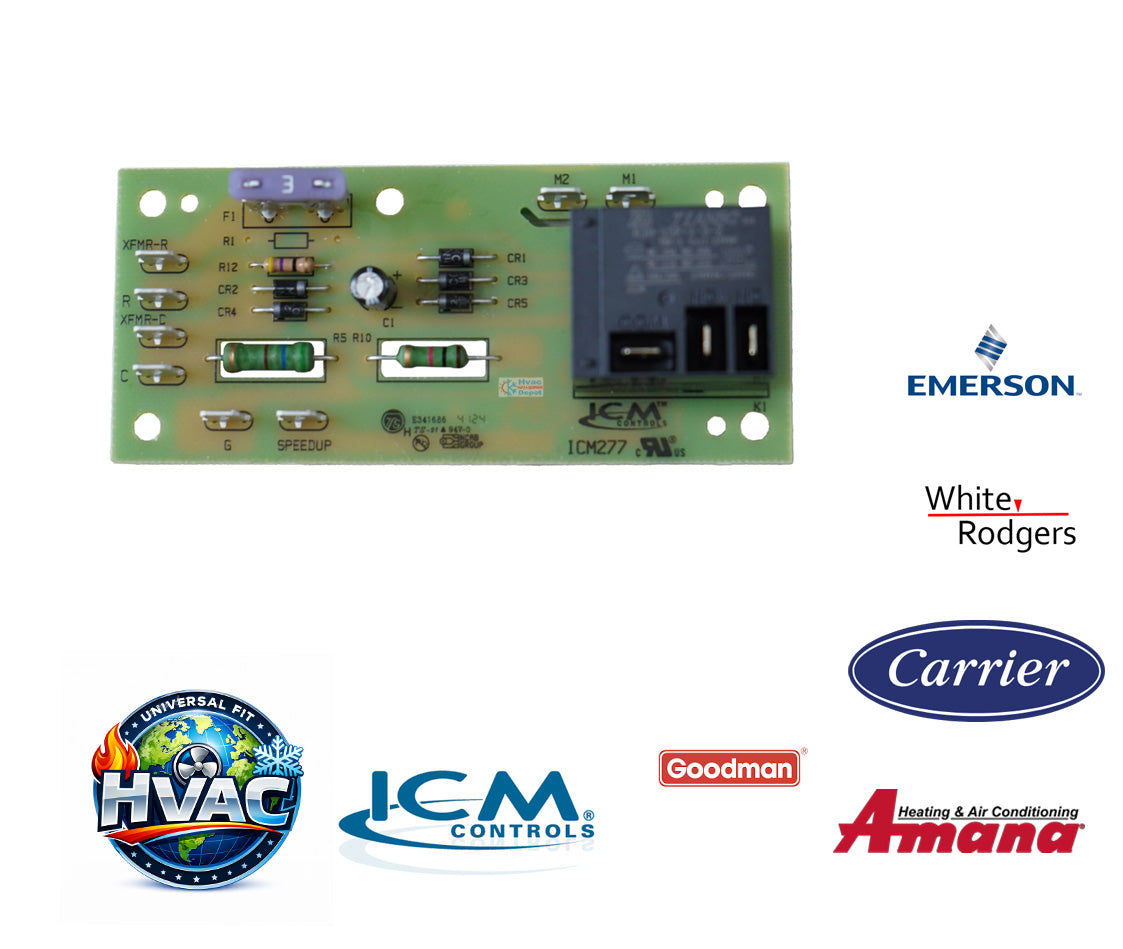

ICM Controls ICM277C Fan Blower Control Board 18-30 VAC


The ICM Controls ICM277C is an engineered, original equipment manufacturer (OEM) replacement fan blower control board designed for forced-air systems, air conditioners, and heat pumps. This microprocessor-based module governs duct sequencing and airflow distribution by establishing precise timed-activation cycles for the circulating indoor fan.
The module acts as a dedicated relay interface that communicates with standard low-voltage 24V thermostat signals. It monitors system safety switches while ensuring optimal energy efficiency during standard thermal demands. Designed as a direct swap for failing legacy fan centers, it supports specialized residential gas furnace and air handler series from Goodman, Amana, Carrier, and Bryant, eliminating timing discrepancies across multi-speed motor taps.

Key Features

  • Direct Form Factor Part Match: Tailored to fulfill exact physical constraints under part number ICM277C, aligning seamlessly with original factory board layouts and electrical terminals.
  • Broad OEM Specification Fit: Formulated to serve as a low-cost, wire-for-wire alternative replacing Goodman B1370735S, PCBFM103S, and Carrier CES0110017/18 series control modules without needing ductwork or cabinet modification.
  • Noise Mitigation & Relay Upgrades: Equipped with heavy-duty dual function inductive relays rated up to 20 Amps, permanently silencing clicking relay chatter, erratic motor humming, and voltage-induced line noise.
  • Advanced Voltage & Safety Upgrades: Replaces aged fan timers to restore structural security by implementing strict 7-second on-delays and 65-second off-delays alongside built-in safety circuit fuse protection to prevent system overheating.

Product Details

  • Brand: ICM Controls
  • Manufacturer: ICM Controls
  • Part # / MPN: ICM277C
  • UPC / SKU: 602594611413
  • Shipping Weight: 0.60 lbs
  • Control Voltage Range: 18 to 30 VAC
  • Input Power Voltage: 18 to 30 VAC
  • Normally Open (N.O.) Contact Rating: 20 Amps
  • Normally Closed (N.C.) Contact Rating: 10 Amps
  • Blower On Time Delay: 7 Seconds
  • Blower Off Time Delay: 65 Seconds
  • Maximum Relative Operating Humidity: 95% Non-condensing
  • Country of Origin: United States

🛠️ HVAC Depot Pro Tip

Take a Picture First! Prior to disconnecting any low-voltage thermostat lines or motor speed leads from the G, Y, or transformer terminals, record a clear visual layout of the existing wire orientation. Disconnect all primary building electrical power to the indoor handler center before handling the module to safeguard the solid-state microprocessor against electrostatic damage. Ensure that the integrated protection fuse is seated firmly in its socket during mounting, and verify that all wire crimp connections are locked tight to prevent high-resistance localized heating or premature circuit faults.

Cross-Reference

  • Superseded / Legacy Goodman Models: B1370735, B1370735S, PCBFM103, PCBFM103S, 0130F00005S
  • Superseded / Legacy Carrier Models: CES0110017, CES0110018, HH84AA-017, HH84AA-018
  • White-Rodgers / Emerson Equivalents: 50A50-110, 50A55-843 (Fan Timer Configurations)

Model Compatibility

  • GMP (Suffixes: 050-3, 075-3, 075-4, 100-3, 100-4, 125-5)
  • GMPN (Suffixes: 040-3, 060-3, 080-4, 100-4)
  • ARUF (Suffixes: 018-1, 024-1, 030-1, 032-1, 036-1, 042-1)
  • GMNPE (Suffixes: 060-3, 080-4, 100-5)
