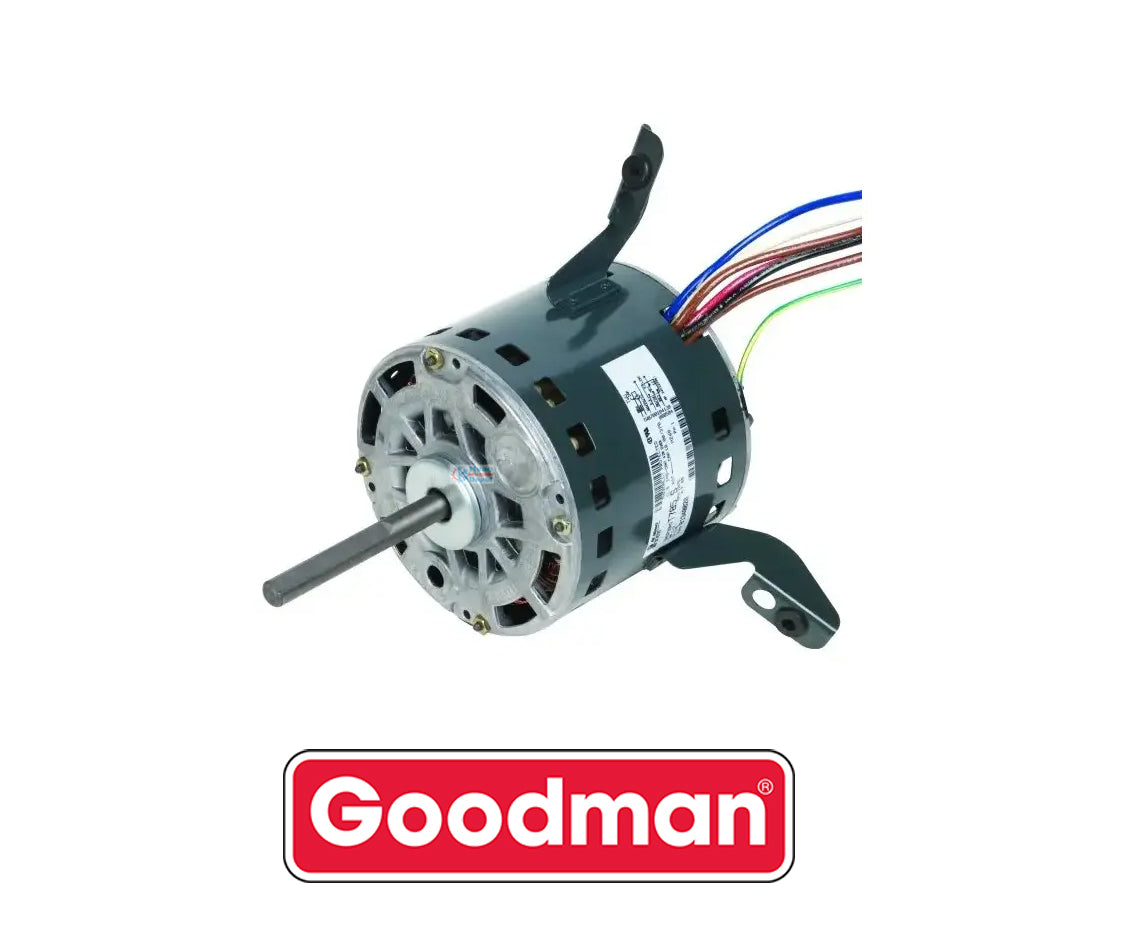

Goodman B1340020S – Genuine OEM Multi-Speed PSC Blower Motor (1/2 HP, 115V)

Name: Goodman B1340020S – Genuine OEM Multi-Speed PSC Blower Motor (1/2 HP, 115V)
Brand: Goodman
SKU: 193031101027
Price: 347.88 USD
Availability: InStock

In stock

$347.88 USD

Sale Sold out

Shipping calculated at checkout.

Key Features & Specifications

Genuine OEM Goodman/Amana 1/2 HP Replacement Motor
Multi-Speed Design for Variable Airflow and Fan Settings
High-Torque 8.0 Amp Rating for Consistent Performance
115V Single-Phase Operation with CCW Rotation
Durable 48-Frame Construction for Direct-Fit Installation

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Unit Type: Furnace Accessory
Product Class - (PIM): Blower Motors and Controllers
Power Voltage: 115 V
Min. Circuit Amps: 5.1
Power Phase: 1 Ph
Power Frequency: 60 Hz
Vendor: Nidec Motor Corporation
Country of Origin: Mexico
Drive: Direct Drive
Evaporator Motor RPM: 1075 r/min
Horsepower: 1/3
Insulation Class: B
Motor Type: Blower Motor
Shaft Diameter: 0.5 in
Shaft Length: 6 in
Universal Product Code (UPC): 193031101041

description

Goodman B1340020S – Genuine OEM Multi-Speed PSC Blower Motor (1/2 HP, 115V)

The Goodman B1340020S is a powerful and reliable Genuine OEM Multi-Speed PSC Blower Motor designed for Goodman, Amana, and Janitrol gas furnaces. As a Permanent Split Capacitor (PSC) motor, it serves as the heavy-duty mechanical driver for your system's airflow, ensuring consistent heat distribution and air circulation throughout your home’s ductwork.

Technical Performance:

Operating at 115V with a robust 1/2 HP output and an 8.0 Amp draw, this motor is built for high-static efficiency in 3-ton to 4-ton HVAC applications. The multi-speed design allows for precise CFM (Cubic Feet per Minute) adjustments, ensuring the furnace maintains the correct temperature rise across the heat exchanger. Built with a 48-frame diameter, it is engineered to provide years of dependable service in high-cycle residential environments.

Key Features and Function:

Feature 1: Multi-Speed Customization: Multiple speed taps (High, Med, Low) allow for optimized airflow during both heating and cooling stages.
Feature 2: High-Torque 8.0A Rating: Provides the necessary power to pull air through restrictive filters and push it through complex duct systems.
Feature 3: Resilient Mount Compatibility: Designed for standard "belly-band" or torsion-flex mounting brackets found in most Goodman furnace cabinets.
Feature 4: Genuine OEM Durability: Constructed with high-grade internal copper windings and heavy-duty bearings for longer motor life.

Product Details and Key Specifications:

Part Number: B1340020S (Replaces B1340020, 20046616)
Manufacturer: Goodman / Amana (Genuine OEM)
Part Type: PSC Blower Motor (Multi-Speed)
Horsepower: 1/2 HP
Voltage: 115V
Current: 8.0 Amps
Phase / Hertz: Single-phase (1PH) / 60 Hz
Rotation: CCW (Counter-Clockwise) Lead End
Shipping Weight: 15.2 lbs

🛠️ HVAC Depot Pro Tip: The "New Motor, New Capacitor" Rule

A weak run capacitor is the #1 cause of PSC motor failure. When installing your new B1340020S, always replace the capacitor (typically a 10 MFD or 12.5 MFD @ 370V). Reusing an old capacitor that has "drifted" in value will cause the new motor to run hot and draw excessive amps, leading to a premature burn-out of the internal windings.

Cross-Reference & Compatibility:

The B1340020S is a direct OEM replacement for the following part numbers:

OEM Numbers: B13400-20, B1340020, 20046616, 5KCP39LGP703S
Industry Refs: GE Genteq 3587, Emerson 1864, Mars 10587

Extensive Model Compatibility List:

Note: Use 'CTRL+F' to search for your specific model:

Goodman GMS8 Series: GMS80805CX, GMS81005CX, GMS80804AX
Goodman GDS8 Series: GDS80805CX, GDS81005CX
Goodman GMH8 Series: GMH80805CX, GMH81005CX
Amana AMH8 Series: AMH80805CX, AMH81005CX
