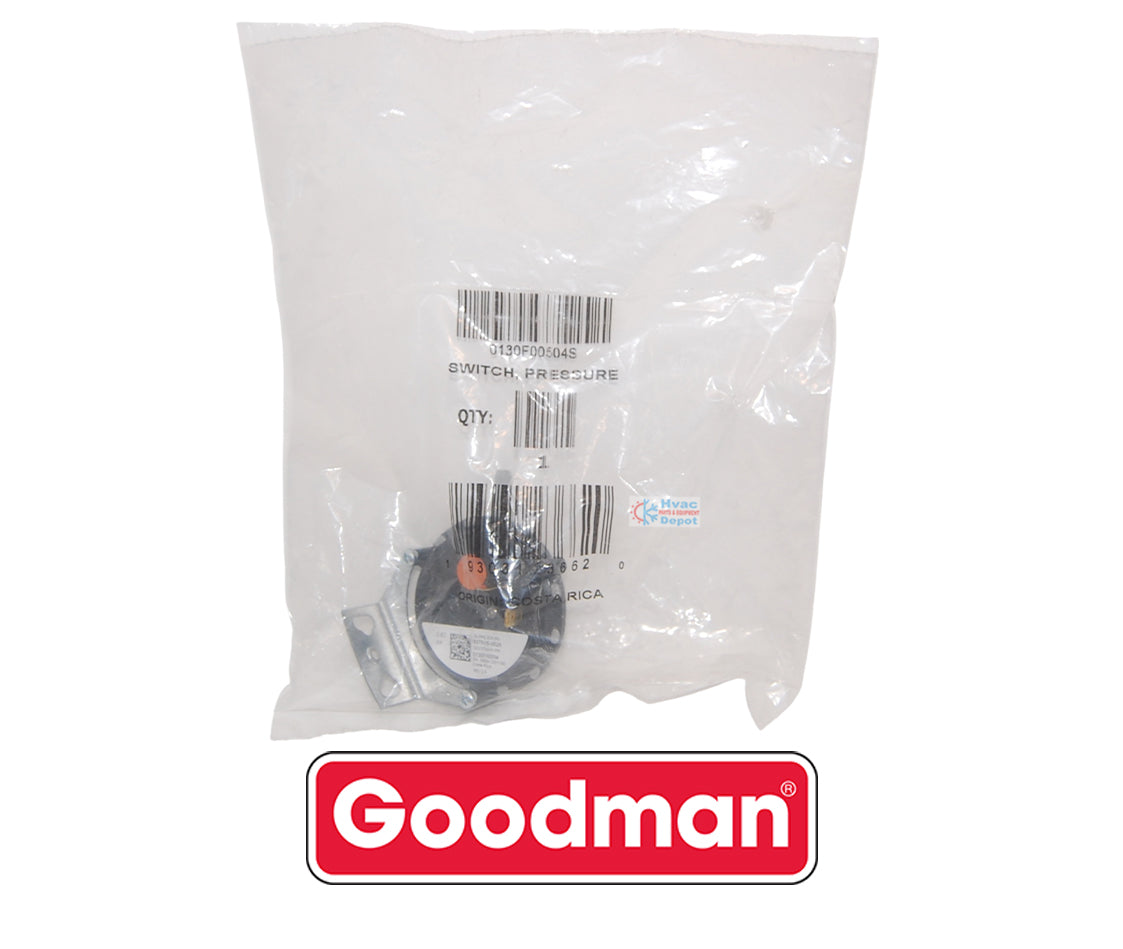

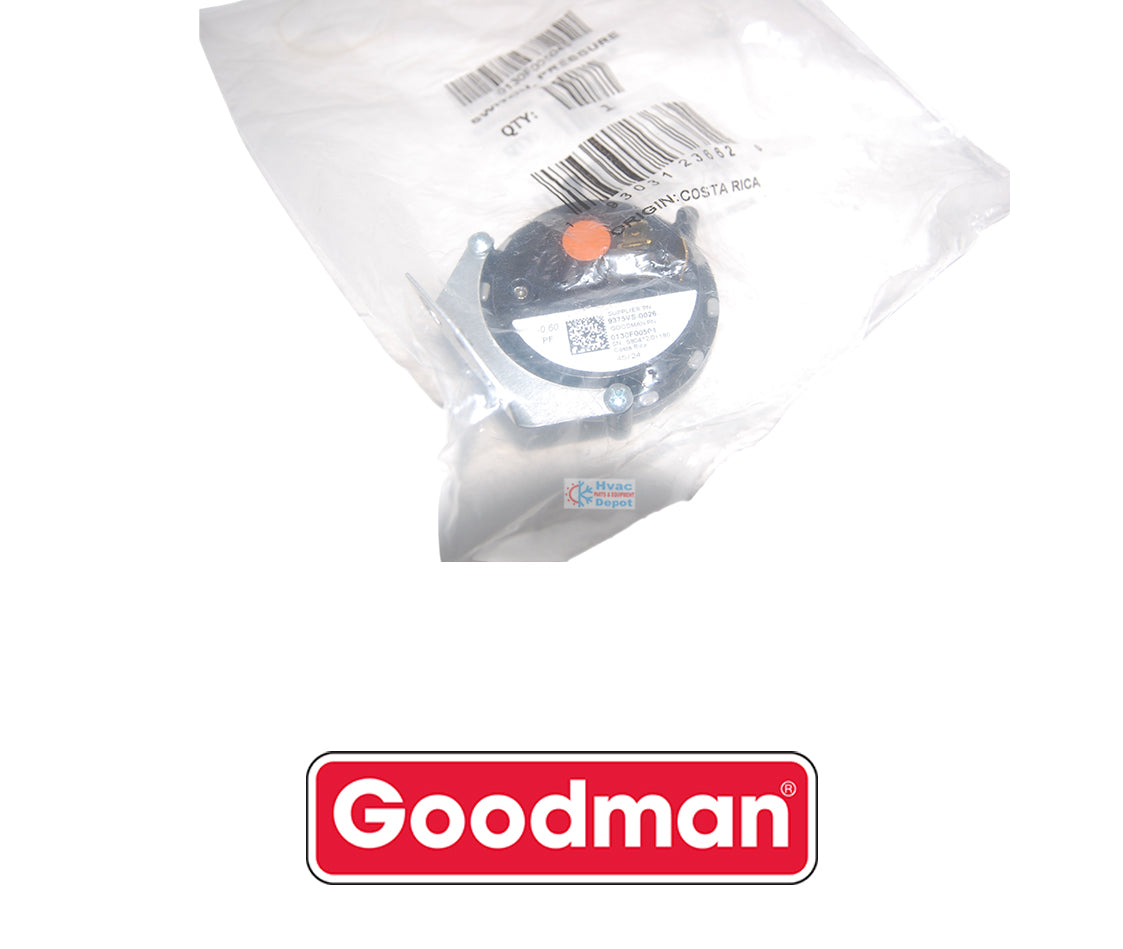

Goodman-Amana Air Pressure Switch (.60" WC), 0130F00504S

Name: Goodman-Amana Air Pressure Switch (.60" WC), 0130F00504S
Brand: Goodman
SKU: 193031196665
Price: 35.00 USD
Availability: InStock

Low stock: 2 left

$35.00 USD

Sale Sold out

Shipping calculated at checkout.

Key Features & Specifications

Genuine OEM Goodman/Amana Replacement Pressure Switch
Precision 0.60" WC Setpoint for Accurate Draft Sensing
SPST Normally-Open Contacts for 24V Control Systems
Standard 1/4" Barb Connection for Direct Tubing Fit
Verified Replacement for B13701-42 and 0130F00000P

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Details and Key Specifications:

Part Number: 0130F00504 (Replaces 0130F00000P, B13701-42)
Manufacturer: Goodman / Amana (Genuine OEM)
Part Type: Inducer Air Pressure Switch
Setpoint: 0.60" WC (PF)
Contact Arrangement: SPST (Normally Open)
Connection Type: 1/4" (0.25 in) Hose Barb
Electrical Rating: 24V / 60Hz Control Circuit
Shipping Weight: 0.3 lbs

description

Goodman-Amana Air Pressure Switch (.60" WC), 0130F00504S

The Goodman 0130F00504 is a high-sensitivity Genuine OEM Air Pressure Switch engineered for Goodman and Amana high-efficiency gas furnaces. This critical safety device monitors the "draft" created by the inducer motor, ensuring that combustion gases are being properly vented and that there is sufficient airflow for a safe, clean burn.

Technical Performance:

Factory-calibrated to a precise setpoint of 0.60" WC (Water Column), this Single-Pole Single-Throw (SPST) switch remains open until the inducer motor creates the required vacuum. Once the threshold is met, the internal diaphragm closes the electrical circuit to the ignition board. Its 0.25-inch barb connection ensures a leak-free seal with standard furnace pressure tubing, preventing the "intermittent ignition" errors common with failing aftermarket switches.

Key Features and Function:

Feature 1: Precision Draft Monitoring: Calibrated to 0.60" WC to match the specific static pressure requirements of Goodman 80% and 90%+ AFUE furnaces.
Feature 2: Snap-Action Safety: The SPST normally-open contact design ensures the furnace cannot ignite if the vent is blocked or the inducer fails.
Feature 3: Corrosion-Resistant Diaphragm: Built with high-grade silicone and plastic housing to resist the acidic condensate found in high-efficiency venting.
Feature 4: Direct-Fit Mounting: Features a universal mounting bracket for a "drop-in" replacement of older or superseded metal-body switches.

Product Details and Key Specifications:

Part Number: 0130F00504 (Replaces 0130F00000P, B13701-42)
Manufacturer: Goodman / Amana (Genuine OEM)
Part Type: Inducer Air Pressure Switch
Setpoint: 0.60" WC (PF)
Contact Arrangement: SPST (Normally Open)
Connection Type: 1/4" (0.25 in) Hose Barb
Electrical Rating: 24V / 60Hz Control Circuit
Shipping Weight: 0.3 lbs

🛠️ HVAC Depot Pro Tip: The "Paperclip" Port Check

Before replacing this switch, always check the plastic "vacuum port" on the inducer motor housing. These ports often get clogged with a tiny amount of corrosion or debris. If the port is blocked, the switch won't "see" the pressure, and the furnace won't fire. Use a small paperclip or a 1/16" drill bit to gently clear the port before installing the new 0130F00504.

Cross-Reference & Compatibility:

The 0130F00504 is a direct OEM replacement for the following part numbers:

OEM Numbers: 0130F00000P, 0130F00000, B13701-42, B1370142, 107321-02
Industry Refs: MPL-9300, IS20436-5471

Extensive Model Compatibility List:

Note: Use 'CTRL+F' to search for your specific model:

Goodman GMS8 Series: GMS80403AN, GMS80603AN, GMS80604BN, GMS80803AN, GMS80804BN
Goodman GDS8 Series: GDS80403AN, GDS80603AN, GDS80804BN, GDS81005CN
Amana AMES8 Series: AMES80403AN, AMES80603AN, AMES80804BN
Packaged Units: GPG, APG, GPC Series
