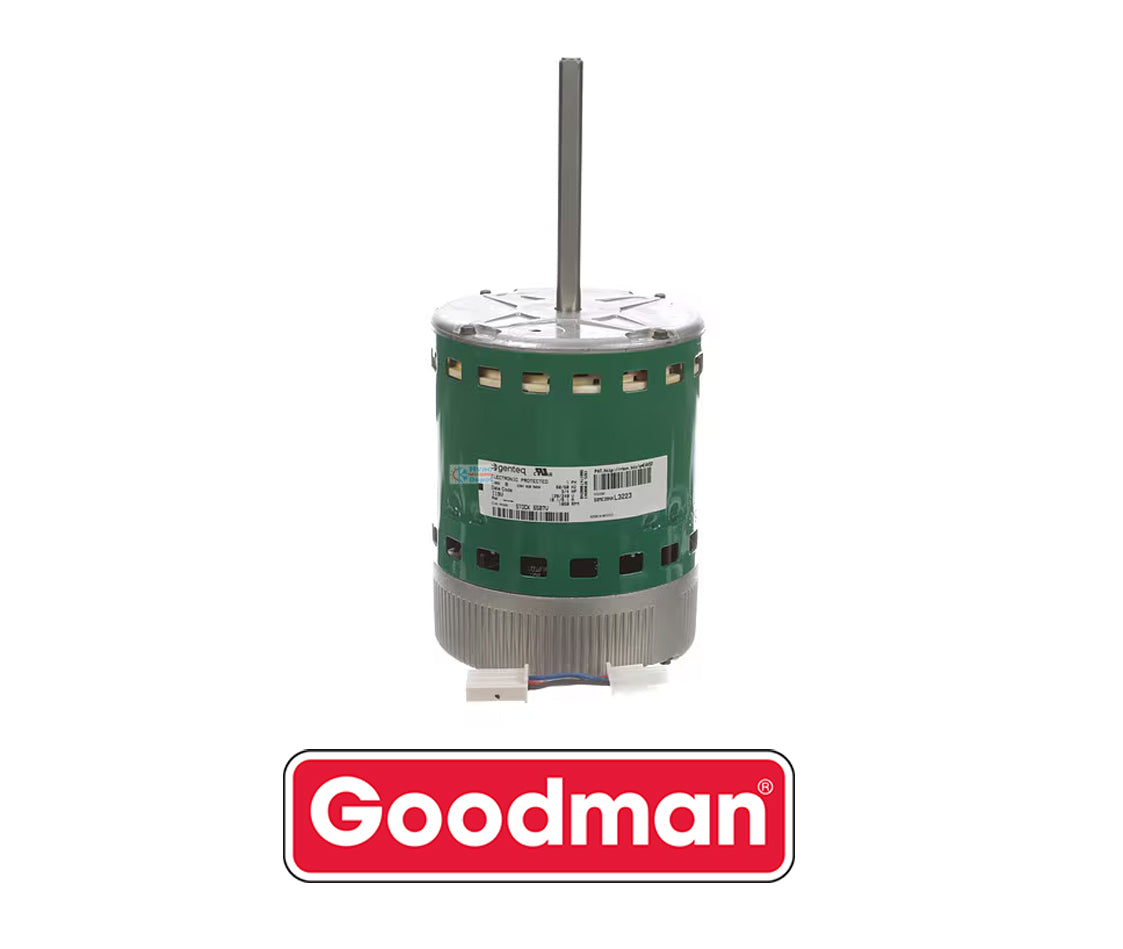

Goodman 6507V – Genuine OEM Fixed Speed ECM Blower Motor (3/4 HP, 120/240V)

Name: Goodman 6507V – Genuine OEM Fixed Speed ECM Blower Motor (3/4 HP, 120/240V)
Brand: Goodman
SKU: 818508024745
Price: 499.00 USD
Availability: InStock

Low stock: 2 left

$499.00 USD

Sale Sold out

Shipping calculated at checkout.

Key Features & Specifications

Genuine OEM Goodman/Amana 3/4 HP X13 ECM Motor
Dual-Voltage 120/240V Operation for Multi-System Fit
High-Efficiency Constant Torque for Stable Airflow
Durable 12-Pin Connector Interface for Direct Plug-In
Quiet Soft-Start Technology Reduces Ductwork Noise

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Unit Type: Accessory
Product Class - (PIM): Blower Motors and Controllers
Power Voltage: 120/240 V
Min. Circuit Amps: 6.1
Power Phase: 1 Ph
Power Frequency: 60 Hz
Dimensions - (Unit Depth): 5.6 in
Dimensions - (Unit Width): 5-19/32 in
Dimensions - (Unit Height): 11.96 in
Motor Speed Type: Fixed Speed ECM
Vendor: Regal Beloit America Inc
Diameter5.6 in
Drive: Direct Drive
Evap Motor RPM: 1050 r/min
Horsepower: 3/4
Insulation Class: B
Motor Enclosure Type: OAO
Motor Frame Size: 48
Motor Type: Blower Motor
Number of Poles: 12
Shaft Diameter: 0.5 in
Shaft Length: 5 in
Universal Product Code (UPC): 818508024745

description

Goodman 6507V – Genuine OEM Fixed Speed ECM Blower Motor (3/4 HP, 120/240V)

The Goodman 6507V is a high-efficiency Genuine OEM Fixed Speed ECM Blower Motor (also known as an X13 style motor) engineered for Goodman, Amana, and Daikin furnaces and air handlers. This motor combines the simple control of a standard PSC motor with the high-efficiency performance of an Electronically Commutated Motor (ECM), providing steady airflow and significant energy savings.

Technical Performance:

Featuring a robust 3/4 HP output, the 6507V is a dual-voltage powerhouse capable of operating at either 120V or 240V. The 12-pin (12P) connector interface allows the system's control board to trigger specific pre-programmed speed taps. Because it is a "constant torque" motor, it automatically adjusts its electrical consumption to maintain consistent RPM even as static pressure fluctuates due to a dirty air filter, ensuring your home remains comfortable year-round.

Key Features and Function:

Feature 1: Constant Torque Technology: Maintains programmed CFM output even as duct static pressure changes, preventing system performance drops.
Feature 2: Dual-Voltage Versatility: Auto-sensing 120V/240V compatibility makes it suitable for both gas furnaces and electric air handlers.
Feature 3: Integrated Control Module: Features a factory-mounted ECM power head that eliminates the need for external run capacitors.
Feature 4: Soft-Start Logic: Reduces the initial "thump" of the blower engaging, lengthening the life of the blower wheel and reducing duct noise.

Product Details and Key Specifications:

Part Number: 6507V (Replaces 0131M00435, 0131M00435S)
Manufacturer: Goodman / Amana / Daikin (Genuine OEM)
Part Type: Fixed Speed ECM (X13) Blower Motor
Horsepower: 3/4 HP
Voltage: 120/240V (Dual Voltage)
Phase / Hertz: Single-phase (1PH) / 50/60 Hz
Connector Type: 12-Pin (12P) Signal/Power Block
Shipping Weight: 15.8 lbs

🛠️ HVAC Depot Pro Tip: The "Voltage Spike" Protector

ECM motors like the 6507V are highly sensitive to electrical surges and lightning strikes, which usually blow the internal thermistor in the control module. We strongly recommend installing a high-quality surge protector at the furnace or air handler disconnect. A $50 surge protector can save you from a $500 motor replacement during the next summer thunderstorm.

Cross-Reference & Compatibility:

The 6507V is a direct OEM replacement for the following part numbers:

OEM Numbers: 0131M00435, 0131M00435S, 5VCW44GG0012, 6507
Industry Refs: Genteq X13, Regal Beloit, Broad Ocean

Extensive Model Compatibility List:

Note: Use 'CTRL+F' to search for your specific model:

Goodman ARUF/ASPT Series: ARUF4860, ASPT4860, ASPT42D14, ASPT49D14
Goodman CAPE/CHPF Series: CAPE4860, CHPF4860
Amana AVPTC Series: AVPTC4860, AVPTC42D14
Packaged Units: GPG1442, GPG1448, APG1442, APG1448
