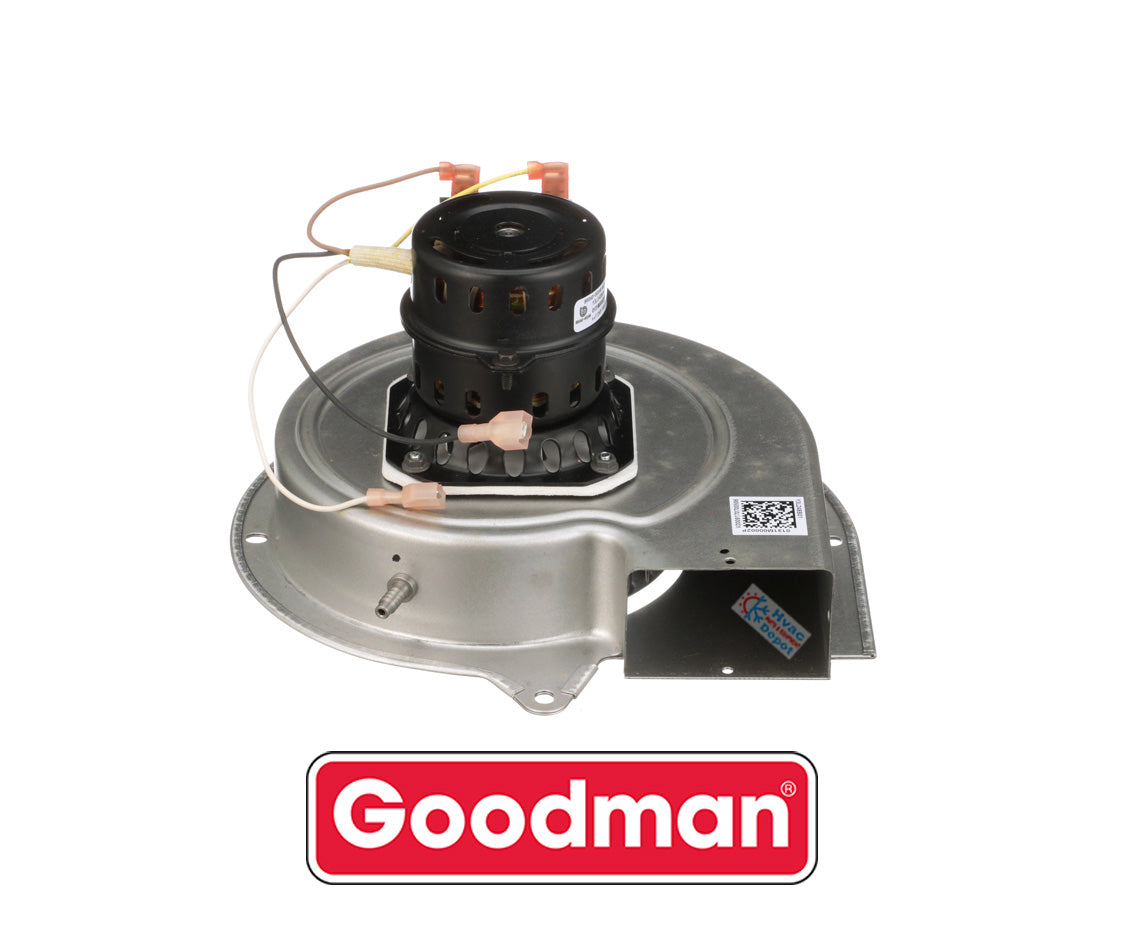

Goodman 0131M00002PSP Induced Motor | OEM 1/50 HP 115V | 1PH 60Hz 0.4A

The Goodman 0131M00002PSP Induced Draft Motor serves as the essential "venting brain" for your high-efficiency gas furnace. This genuine OEM component is a precision-calibrated combustion blower responsible for pulling air through the heat exchanger and safely exhausting flue gases out of your home. Engineered specifically for Goodman, Amana, and Janitrol furnace series, this 1/50 HP motor acts as a critical safety gatekeeper; it must achieve the correct static pressure to close the furnace pressure switch before the ignition sequence can begin. By replacing a failing inducer with this factory-authorized part, you ensure your heating system maintains the exact airflow requirements needed for a clean, safe, and efficient burn.

Key Features and Function:

• Precision Combustion Airflow: Calibrated to 115V requirements to ensure reliable venting and heat transfer in residential furnace applications.
• Genuine OEM Reliability/Fitment: Designed by Goodman Manufacturing as a direct-fit replacement, ensuring the mounting holes and electrical plug align perfectly with your original assembly.
• Ultra-Low 0.4A Power Draw: High-efficiency electrical design reduces stress on the furnace control board while providing consistent venting torque.
• Quiet & Balanced Operation: Features factory-balanced internal components to eliminate the grinding and vibrating noises common in aging or generic inducer motors.
• Direct-Fit Design/Plug-and-Play: Includes a pre-terminated wiring harness for a fast, secure connection without the need for wire splicing.

Product Details and Key Specifications:

• Part Number: 0131M00002PSP (Replaces 0131M00002P, 0131M00002S)
• Manufacturer: Goodman / Amana (Genuine OEM)
• Part Type: Induced Draft Motor / Combustion Blower
• Voltage: 115V
• Amperage: 0.4 Amps
• HP / RPM: 1/50 HP @ 3000-3400 RPM (Nominal)
• Phase / Hertz: Single-phase (1PH) / 60 Hz
• Insulation: Class B
• Shipping Weight: 3.6 lbs

🛠️ HVAC Depot Pro Tip: The Vacuum Port Test

Before mounting your new 0131M00002PSP, always inspect the small vacuum port on the motor housing or the collector box it attaches to. Use a small wire or paperclip to ensure the port is clear of debris or rust. Even a brand-new motor won't allow the furnace to fire if the pressure switch cannot "sense" the draft due to a clogged port. During your Diagnostic Check, verify that the inducer spins freely by hand before applying power; if the impeller is blocked by debris from the heat exchanger, the motor will hum and eventually fail.

Cross-Reference & Compatibility:

The 0131M00002PSP is a direct OEM replacement for the following part numbers:

• OEM Numbers: 0131M00002P, 0131M00002S, 0131M00002PS
• Fasco / Aftermarket: 7021-10931, 7021-10188, J238-150-15181
• Jakel / Rotom: 119255-00, RFB156

Extensive Model Compatibility List:

Note: Use 'CTRL+F' to search for your specific model:

• Goodman GMS8 Series:

   GMS80403AN, GMS80603AN, GMS80804BN, GMS81005CN

• Goodman GDS8 Series:

   GDS80403AX, GDS80603AX, GDS80804BX, GDS81005CX

• Amana AMES8 Series:

   AMES80403AN, AMES80603AN, AMES80804BN

• Goodman GME8 Series:

   GME80403AN, GME80603AN, GME80804BN

• Amana AMVC8 Series:

   AMVC80403BN, AMVC80603BN, AMVC80804CN

• Goodman GCH9 / GMH9 Series:

   GCH90453BX, GMH950453BX (Verify voltage requirement)
