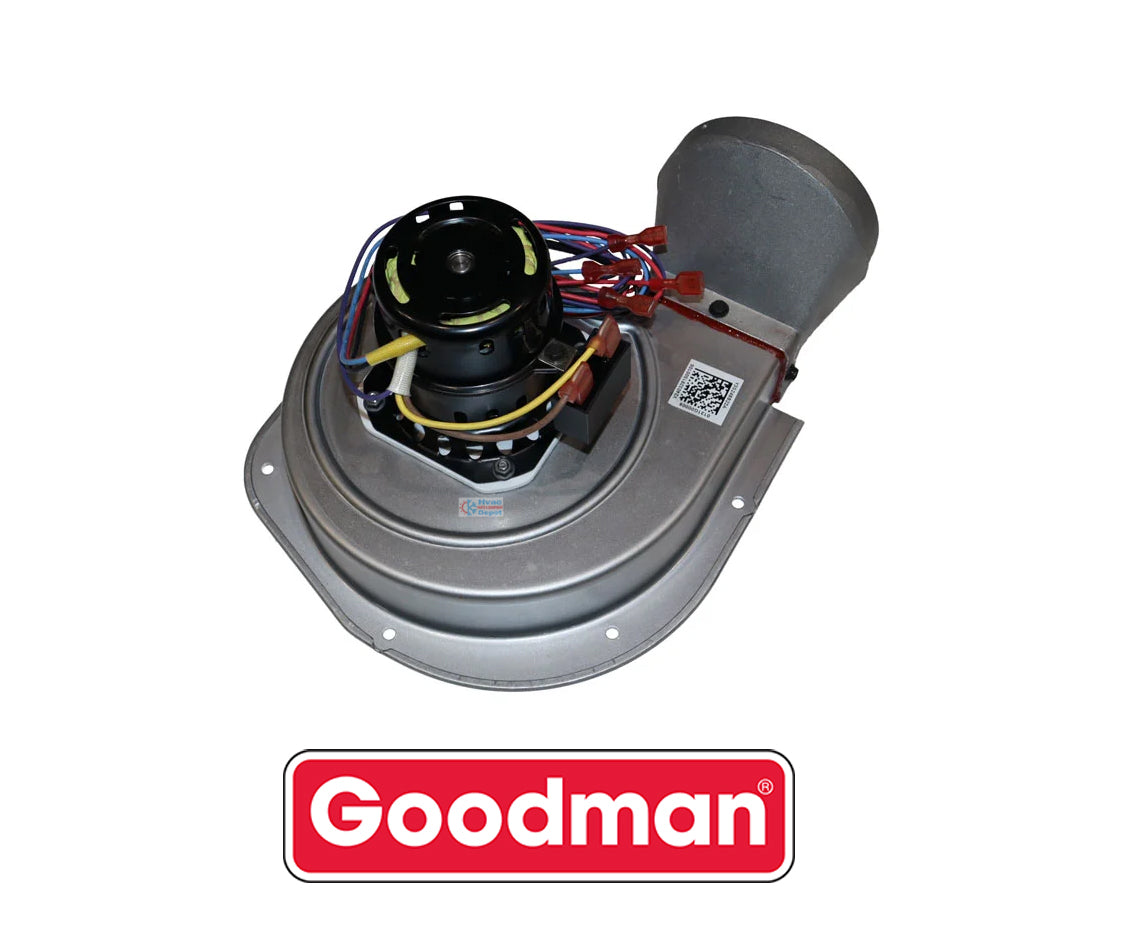

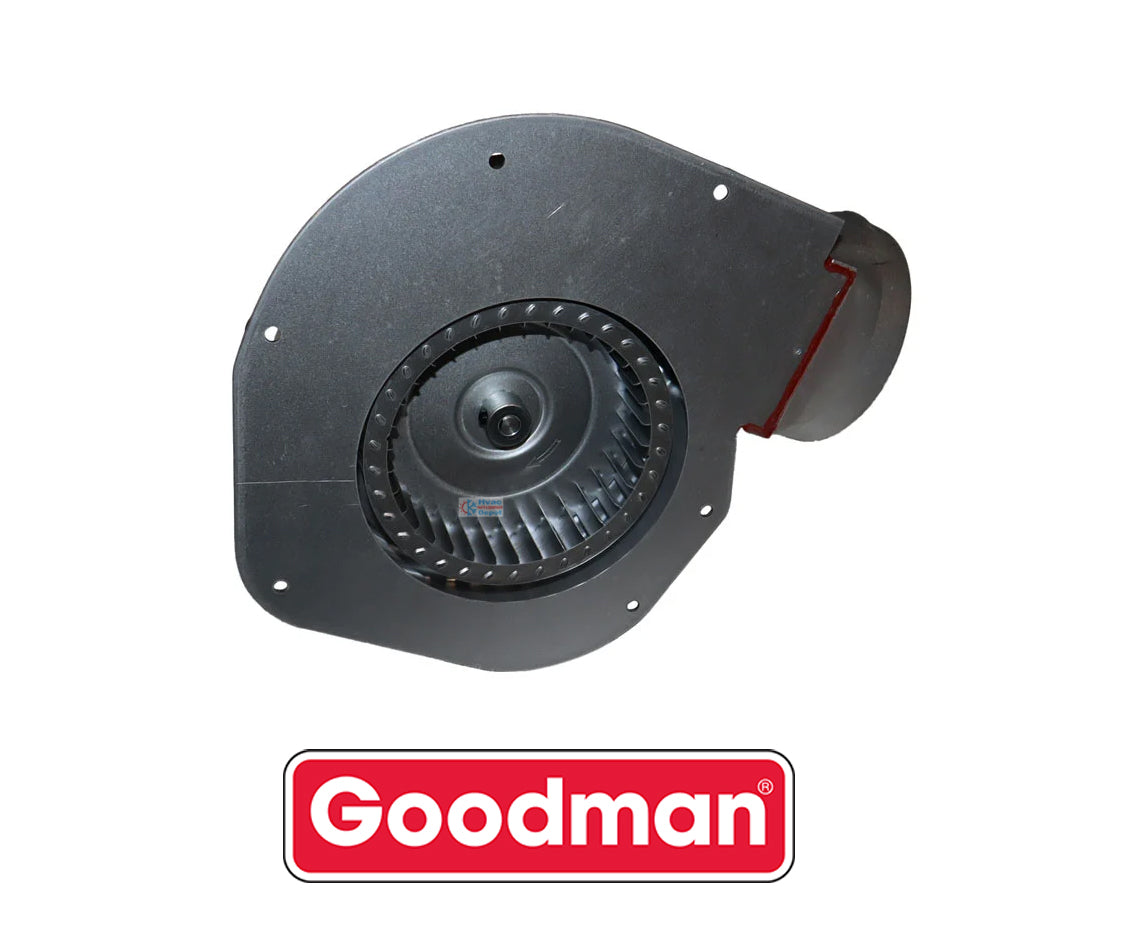

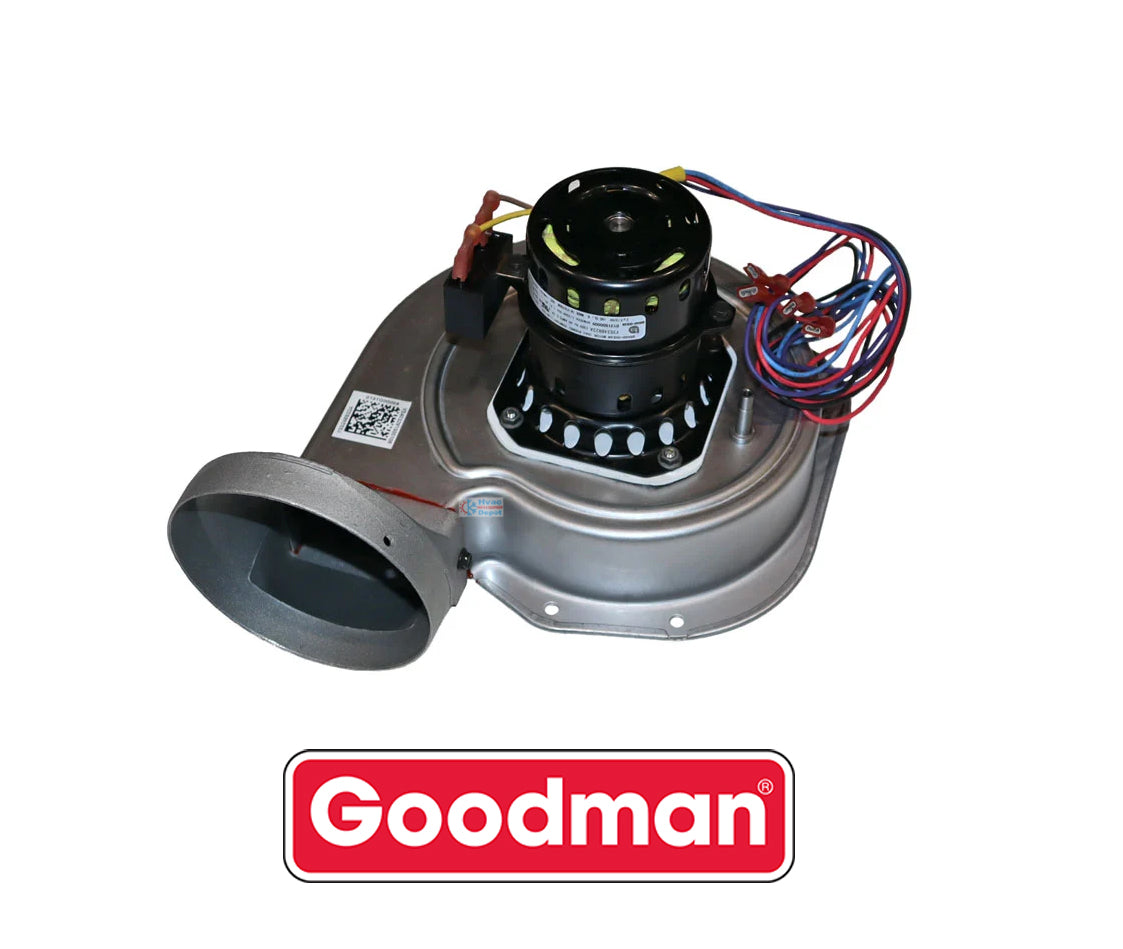

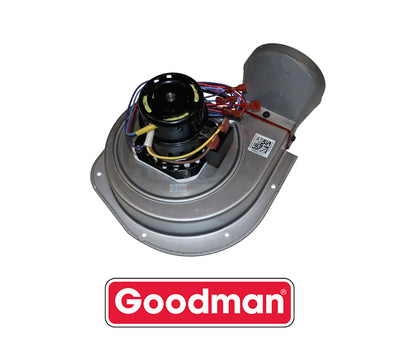

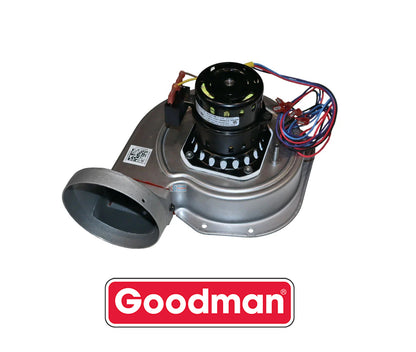

Goodman 0131G00000PS Induced Draft Motor – Genuine OEM 1/25 HP 230V 1PH 60Hz Class B

The Goodman 0131G00000PS Induced Draft Motor is the high-precision "lung" of your gas furnace's combustion system. As a genuine OEM component for Goodman, Amana, and Janitrol furnace series, this motor is responsible for creating the negative pressure required to draw combustion air through the heat exchanger. Operating at 230V, this 1/25 HP motor ensures that flue gases are safely and efficiently exhausted out of the home before and during the heating cycle. By maintaining the exact static pressure needed to close the system's safety pressure switches, it acts as a critical gatekeeper for the ignition sequence, ensuring your heating system operates at peak factory-rated safety and performance.

Key Features and Function:

• Precision Combustion Airflow: Calibrated to the exact RPM requirements of 230V furnace models to ensure a clean, efficient burn and reliable venting of exhaust gases.
• Genuine OEM Reliability/Fitment: Designed by Goodman Manufacturing as a direct-fit replacement, ensuring the mounting holes and electrical terminations align perfectly with the original blower housing.
• Quiet & Balanced Operation: Features factory-balanced internal components to eliminate the "droning" or vibrating noises commonly associated with worn-out or generic inducer motors.
• Class B Thermal Insulation: Engineered with high-grade Class B insulation to withstand the high ambient temperatures within the burner compartment without premature winding failure.

Product Details and Key Specifications:

• Part Number: 0131G00000PS (Replaces 0131G00000, 0131G00000S)
• Manufacturer: Goodman / Amana (Genuine OEM)
• Part Type: Induced Draft Motor / Combustion Blower
• Voltage: 230V
• HP / RPM: 1/25 HP (3000-3400 RPM Nominal)
• Phase / Hertz: Single-phase (1PH) / 60 Hz
• Insulation: Class B
• Shipping Weight: 3.5 lbs

🛠️ HVAC Depot Pro Tip: Check the Cooling Fan

When installing the 0131G00000PS, pay close attention to the small plastic cooling fan located on the back of the motor shaft. This fan is vital for drawing air over the motor windings to prevent overheating. During your Diagnostic Check, ensure this fan is free of dust or debris and has at least an inch of clearance from any wires or insulation. If the inducer motor runs but the furnace still won't fire, check the small vacuum hose leading to the pressure switch; these often become brittle or clogged with moisture when a motor begins to fail.

Cross-Reference & Compatibility:

The 0131G00000PS is a direct OEM replacement for the following part numbers:

• OEM Numbers: 0131G00000, 0131G00000S, 0131M00002P, 0131G00001
• Fasco / Aftermarket: 7021-10188, 7021-10931, J238-150-15181
• Jakel: 119255-00

Extensive Model Compatibility List:

Note: Use 'CTRL+F' to search for your specific model:

• Goodman GMS Series: GMS80403AX, GMS80603AX, GMS80804BX, GMS81005CX
• Goodman GDS Series: GDS80403AX, GDS80603AX, GDS80804BX, GDS81005CX
• Amana AMES Series: AMES80403AX, AMES80603AX, AMES80804BX
• Goodman GME Series: GME80403AN, GME80603AN, GME80804BN
• Amana AMVC Series: AMVC80403BN, AMVC80603BN, AMVC80804CN
• Package Units: GPG, GPH, APG series (Check voltage/HP requirements)
