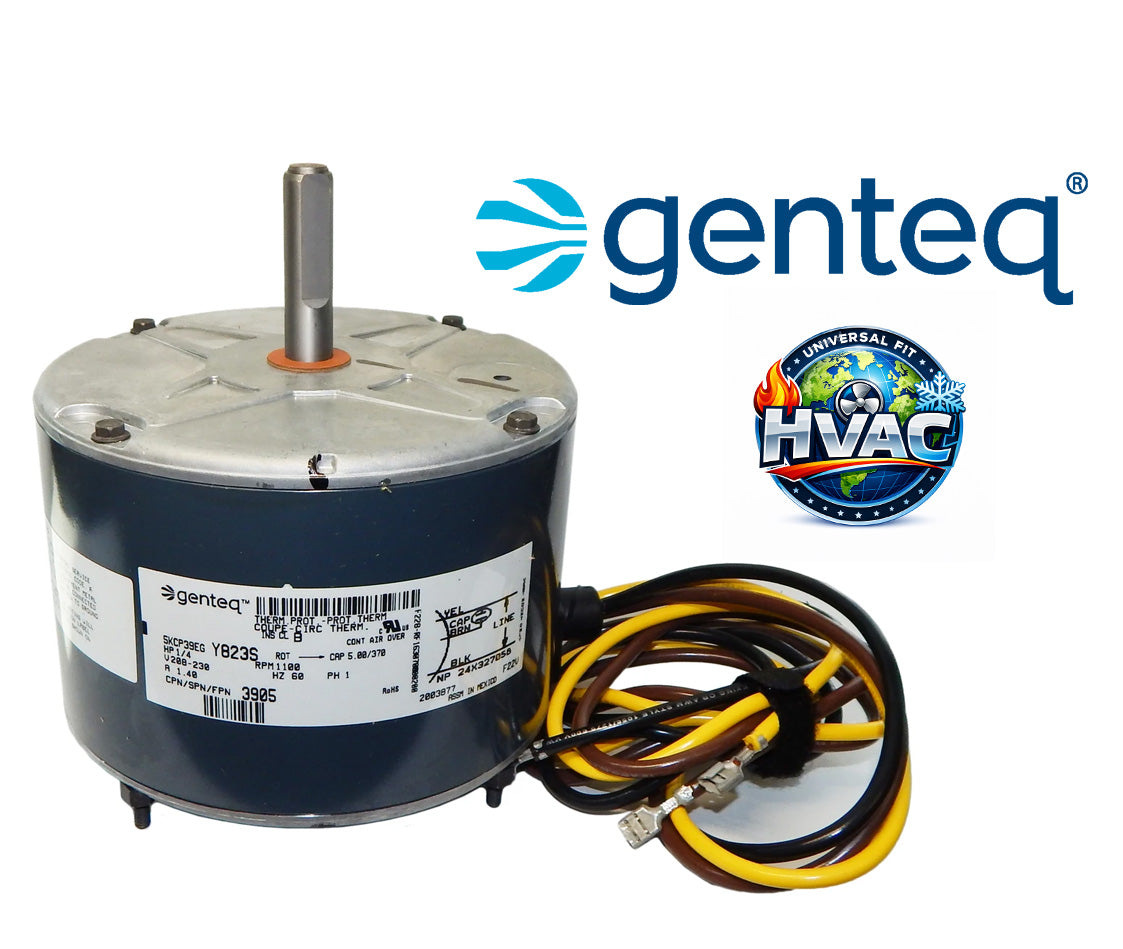

Genteq 3905 Carrier Condenser Fan Motor HC39GE237– 1/4 HP, 1100 RPM, 208-230V, CCW
Genteq 3905 Carrier Condenser Fan Motor HC39GE237– 1/4 HP, 1100 RPM, 208-230V, CCW
Low stock: 2 left
Genteq 3905 Carrier Condenser Fan Motor Specifications
Please visit our store for pick up.
safe & secure Checkout
Specifications
Specifications
description
description
Genteq 3905 Carrier Condenser Fan Motor – 1/4 HP, 1100 RPM, 208-230V, CCW
The Genteq 3905 Carrier Condenser Fan Motor, also identified as 5KCP39EGS070S, is a replacement condenser fan motor designed for compatible Carrier-family HVAC equipment. This motor is rated at 1/4 HP, 1100 RPM, 208-230V, and 1.4 amps, with a single-speed, single-phase configuration.
The 3905 features CCW rotation when viewed from the shaft end, a 48 NEMA frame, sleeve bearings, and a 2-inch x 1/2-inch shaft. It requires a 5 MFD / 370 VAC run capacitor, which is not included.
Key Features & Function
• 1/4 HP – Replacement condenser fan motor for compatible HVAC equipment
• 1100 RPM – Designed to match compatible condenser fan applications
• 208-230 Volts
• 1.4 Amps
• 60 Hz
• Single Phase
• 1-Speed Operation
• CCW Shaft-End Rotation – Counterclockwise when viewed from the shaft end
• 48 NEMA Frame
• Class B Insulation
• Sleeve Bearings
• VSD Mounting
• Band Base
• Continuous Air Over
• Automatic Overload Protector
• 2" Long x 1/2" Diameter Shaft
• 5 MFD / 370 VAC Run Capacitor Required
• Capacitor Not Included
Product Details & Key Specifications
| Specification | Details |
|---|---|
| Brand | Genteq |
| Model / Part Number | 3905 |
| Motor Number | 5KCP39EGS070S |
| Product Type | Condenser Fan Motor |
| Horsepower | 1/4 HP |
| Voltage | 208-230V |
| Amperage | 1.4 A |
| Frequency | 60 Hz |
| Phase | Single Phase |
| RPM | 1100 |
| Speeds | 1 |
| Rotation | CCW Shaft End |
| NEMA Frame | 48 |
| Insulation Class | Class B |
| Bearing Type | Sleeve |
| Mounting | VSD |
| Base | Band |
| Shaft Diameter | 1/2" |
| Shaft Length | 2" |
| Protection | Automatic Protector |
| Motor Cooling | Continuous Air Over |
| Required Capacitor | 5 MFD / 370 VAC |
| Capacitor Included | No |
| B Dimension | 1.50" |
| C Dimension | 5.95" |
🛠️ HVAC Depot Pro Tip: Pay Attention to the HP Cross-References
When replacing a condenser fan motor with the Genteq 3905, verify more than the cross-reference number. Match the voltage, RPM, rotation, shaft dimensions, mounting configuration, amperage, horsepower, and capacitor requirement.
Important Horsepower Note
Some cross-referenced OEM motors were originally rated at 1/5 HP, while the Genteq 3905 is rated at 1/4 HP.
This is especially important when replacing motors associated with 1086598, K55HXHDD-8562, HC37GZ003B, and 5KCP39BGZ256S. Verify the equipment and original motor specifications before installation rather than assuming interchangeability based only on a cross-reference.
The 3905 requires a 5 MFD / 370 VAC run capacitor. The capacitor is not included.
Cross-Reference & Replacement Numbers
The Genteq 3905 / 5KCP39EGS070S cross-references with:
• GE 3905
• 5KCP39EGY823S
• 5KCP39EGS070S
• HC39GE237
• 1086598*
• K55HXHDD-8562*
• HC37GZ003B*
• 5KCP39BGZ256S*
*Important: These OEM cross-reference applications may have originally used a 1/5 HP motor. Verify the original motor and equipment requirements before replacement.
