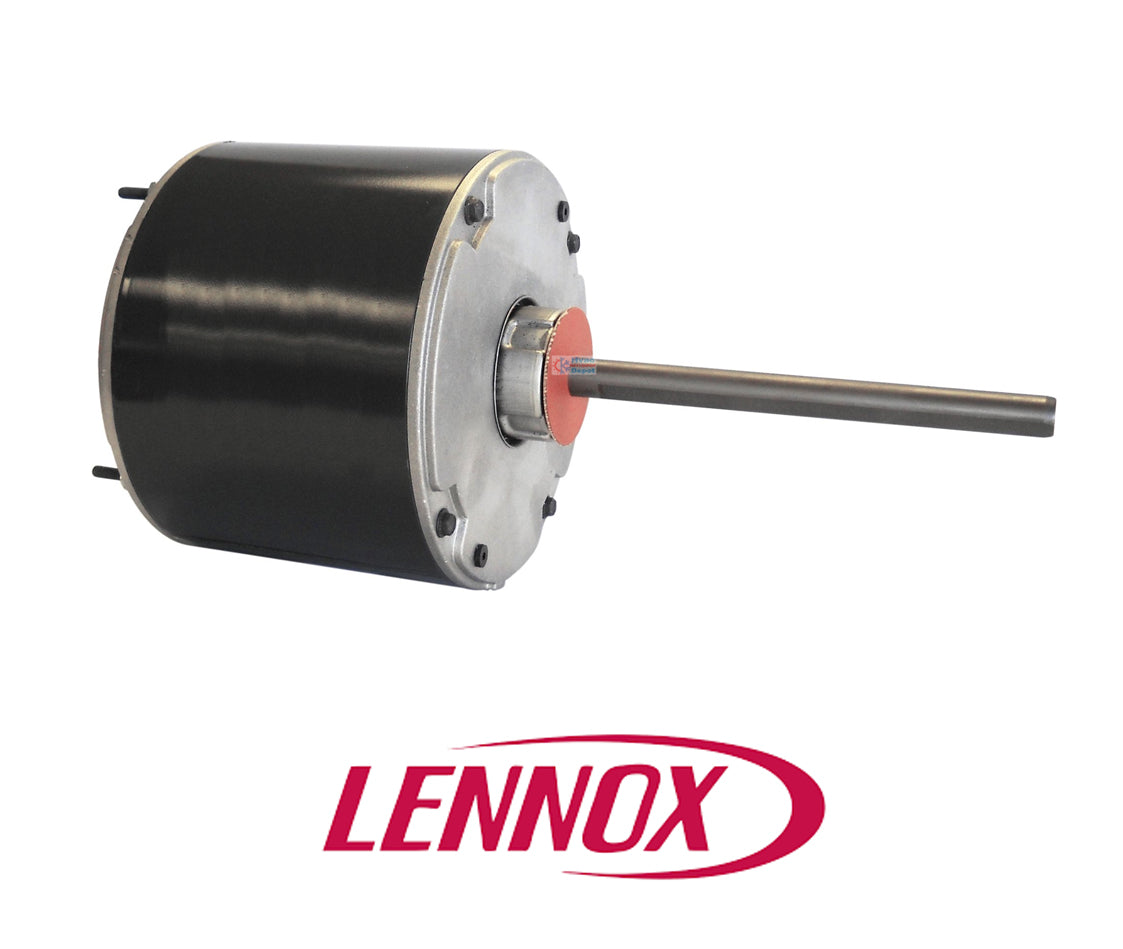

FirstChoice 19L32 Condenser Fan Motor - 1/2 HP 1075 RPM 460V 1PH 70C High Ambient

Name: FirstChoice 19L32 Condenser Fan Motor - 1/2 HP 1075 RPM 460V 1PH 70C High Ambient
Brand: Lennox
SKU: FC-19L32-460V-70C
Price: 192.55 USD
Availability: InStock

Low stock: 1 left

$192.55 USD

Sale Sold out

Shipping calculated at checkout.

FirstChoice, Condenser Fan Motor, 1/2 HP, 460V-1Ph, 1075 RPM, 70C

Industrial Grade Durability: Built to handle the rigorous duty cycles of 24/7 commercial HVAC operation.
Extreme Heat Resistance: The 70C ambient rating ensures consistent cooling even during extreme rooftop heatwaves.
Optimized Energy Usage: 1/2 HP 460V design provides high torque for large-diameter fan blades with minimal amperage draw.
Quiet Commercial Performance: Balanced rotor technology reduces vibration, extending the life of both the motor and the fan blade.
Weather-Resistant Housing: The totally enclosed casing protects internal windings from rain, dust, and corrosive salt air.

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Details

Brand: FirstChoice
Manufacturer: Allied Air / Lennox
Category Number: 19L32
Weight: 16.8 lbs
Horsepower: 1/2 HP
Voltage: 460V
Phase: 1 Phase (Single Phase)
RPM: 1075
Ambient Temperature: 70C (High Ambient)
Frequency: 60 Hz
Enclosure: Totally Enclosed Air Over (TEAO)

description

FirstChoice 19L32 Condenser Fan Motor - 1/2 HP 1075 RPM 460V 1PH 70C High Ambient

The 19L32 is a heavy-duty FirstChoice replacement motor engineered to function as the primary heat-rejection driver in high-voltage commercial condensing units. Functioning as the "heart" of the airflow system, this motor is specifically designed for 460V single-phase applications where standard residential voltages are insufficient. This motor is built to withstand extreme rooftop environments, featuring a 70C (158°F) high-ambient rating that prevents thermal tripping during record-breaking summer temperatures. By maintaining precise 1075 RPM cycles, it ensures the refrigerant in your commercial split system or rooftop unit is properly subcooled for maximum efficiency.

Key Features

High-Voltage Industrial Build: Specifically rated for 460V operation, ensuring compatibility with commercial power grids without the need for step-down transformers.
High-Ambient Thermal Rating: The 70C rating allows this motor to operate in the hottest "attic-style" or enclosed rooftop conditions where standard motors fail.
OEM Reliability: As a FirstChoice part, the 19L32 offers a precise mechanical fit for Lennox and Allied commercial platforms, maintaining factory airflow curves.
Maintenance-Free Bearings: Features permanently lubricated ball bearings designed to handle the vertical-shaft-down loads common in outdoor condenser fans.
Advanced Safety Circuitry: Integrated internal overload protection monitors winding temperature to prevent catastrophic motor failure during a fan blade blockage.

Product Details

Brand: FirstChoice
Manufacturer: Allied Air / Lennox
Category Number: 19L32
Weight: 16.8 lbs
Horsepower: 1/2 HP
Voltage: 460V
Phase: 1 Phase (Single Phase)
RPM: 1075
Ambient Temperature: 70C (High Ambient)
Frequency: 60 Hz
Enclosure: Totally Enclosed Air Over (TEAO)

🛠️ HVAC Depot Pro Tip

"Check the Rotation and Leads"—When installing the 19L32, verify the rotation direction before final assembly. Commercial 460V systems often use higher-gauge wiring; ensure all lead wires are secured away from the fan blade's path using UV-rated zip ties. Because this is a high-voltage component, always verify the grounding wire is securely bonded to the motor bracket to prevent stray voltage from damaging the unit’s control board or sensitive electronic expansion valves.

Cross-Reference

Direct Replacement: 19L3201
Superseded Numbers: 78M74, 78M7401
Drawing Numbers: MOT19L32
White-Rodgers/Emerson Equivalent: Emerson 1872, Genteq 3872

Model Compatibility

Lennox T-Class (Suffixes: 090, 102, 120, 150)
Lennox Landmark (Suffixes: LGC090, LGC102, LGC120, LGC150)
Allied Commercial (Suffixes: KGA090, KGA102, KGA120, KGA150)
