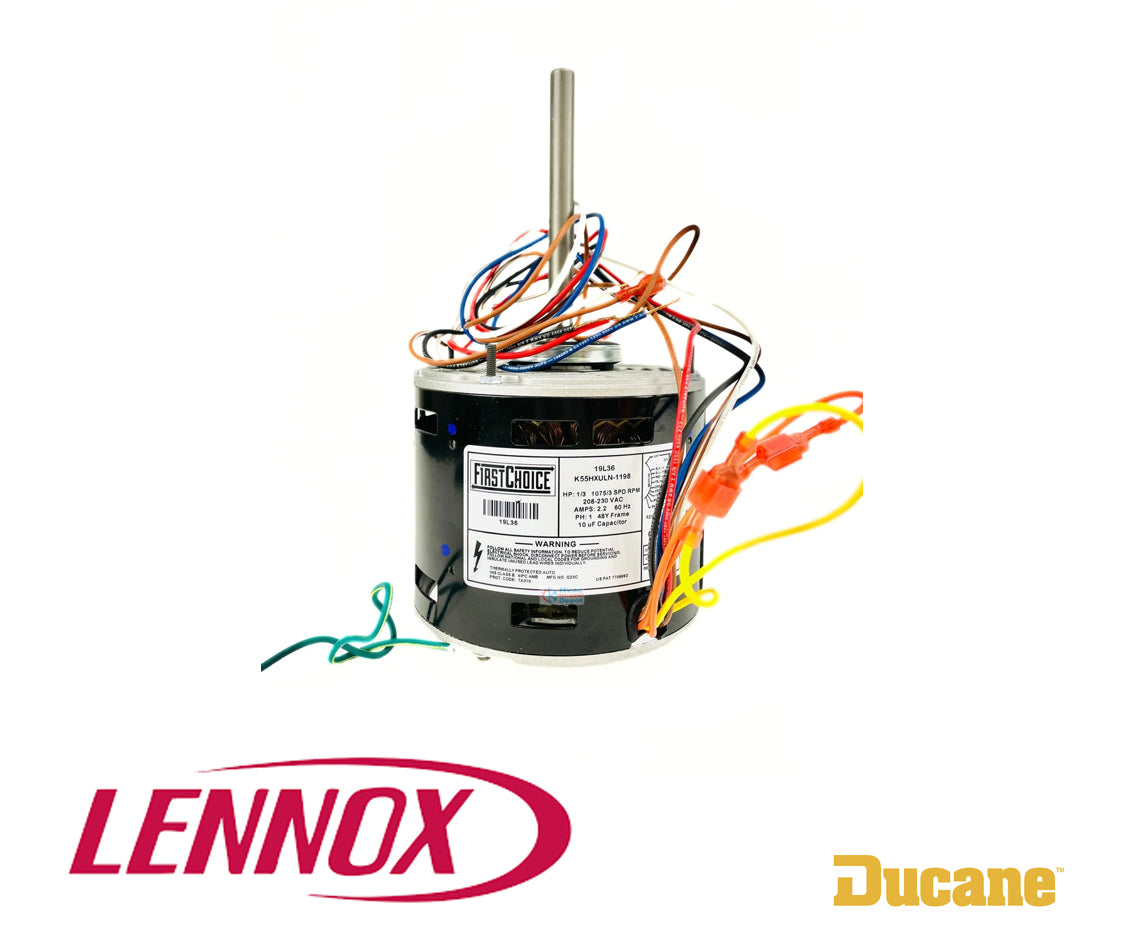

FirstChoice 19L32 Condenser Fan Motor - 1/2 HP 1075 RPM 208-230V 1PH OEM Replacement
FirstChoice 19L32 Condenser Fan Motor - 1/2 HP 1075 RPM 208-230V 1PH OEM Replacement
Low stock: 1 left
FirstChoice, Condenser Fan Motor, 1/2 HP, 208/230V-1Ph, 1075 RPM
Please visit our store for pick up.
safe & secure Checkout
Specifications
Specifications
description
description
FirstChoice 19L32 Condenser Fan Motor - 1/2 HP 1075 RPM 208-230V 1PH OEM Replacement
The 19L23 is a heavy-duty FirstChoice condenser fan motor specifically engineered to serve as the high-torque "muscle" for residential and light commercial condensing units. As the primary airflow driver, this motor is the "brain" behind your system's heat rejection, ensuring that the outdoor coil stays cool enough to prevent compressor liquid slugging or high-pressure trips. Designed to support a wide array of Lennox, Allied, and Concord platforms, this motor provides the exact 1075 RPM rotational speed required to maintain factory SEER ratings. By choosing a FirstChoice OEM-spec motor, you ensure that the internal winding resistance and thermal curves match your system's original design for maximum longevity.
Key Features
- Exact OEM Specification: The 19L23 is a direct-fit replacement for the 19L2301, ensuring 100% compatibility with existing motor mounts and fan blade hubs.
- High-Torque 1/2 HP Design: Provides superior starting and running torque compared to lower-horsepower alternatives, specifically for 3.5 to 5-ton AC units.
- Sealed Ball Bearing System: Features permanently lubricated bearings engineered to handle the vertical-shaft-down loads common in outdoor condenser fans.
- Internal Safety Monitoring: Built with a specialized automatic reset thermal overload protector that guards against winding failure during extreme 100°F+ ambient spikes.
- Whisper-Quiet Performance: Precisely balanced to eliminate the harmonic "motor hum" and vibration issues common in aging or universal aftermarket motors.
Product Details
- Brand: FirstChoice
- Manufacturer: Lennox / Allied Air
- Part Number: 19L23 (19L2301)
- Weight: 15.6 lbs
- Horsepower: 1/2 HP
- Voltage: 208-230V
- Phase: 1 Phase (Single Phase)
- RPM: 1075
- Frequency: 60 Hz
- Frame Size: 48 Frame (5.6-inch diameter)
- Capacitor Required: 10 MFD / 370V (Sold Separately)
🛠️ HVAC Depot Pro Tip
"Take a Picture First"—Before disconnecting your old motor, snap a photo of the wire colors on the contactor and capacitor. The 19L23 typically utilizes a 4-wire setup (2 for power, 2 for the capacitor). When installing, ensure you replace the 10 MFD run capacitor simultaneously. A weakened capacitor will cause the motor to run hot and cycle on its internal thermal limit, which is the leading cause of premature motor failure and can void the manufacturer warranty.
Cross-Reference
- Direct Replacement: 19L2301, 100483-14
- Superseded / Legacy: 78M73, 78M7301, 100483-09
- Drawing / Factory Number: MOT19L23, 5KCP39SGM178S
- Equivalent Models: Emerson 1860, Genteq 3860
Model Compatibility
- Lennox HS26 (Suffixes: 042, 048, 060)
- Lennox HS29 (Suffixes: 042, 048, 060)
- Allied 4AC13L (Suffixes: 42P, 48P, 60P)
- Concord 4AC13B (Suffixes: 42, 48, 60)
- Lennox 13ACX (Suffixes: 042, 048, 060)
