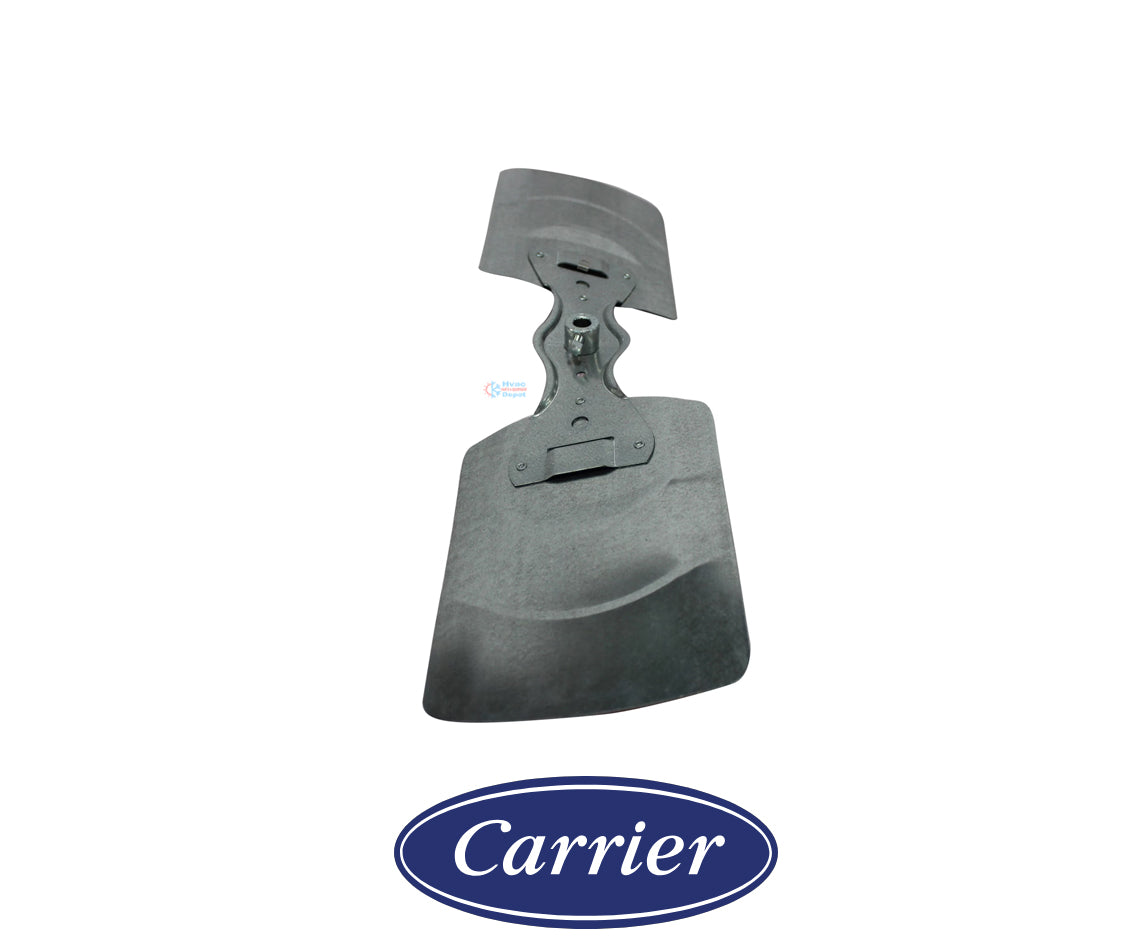

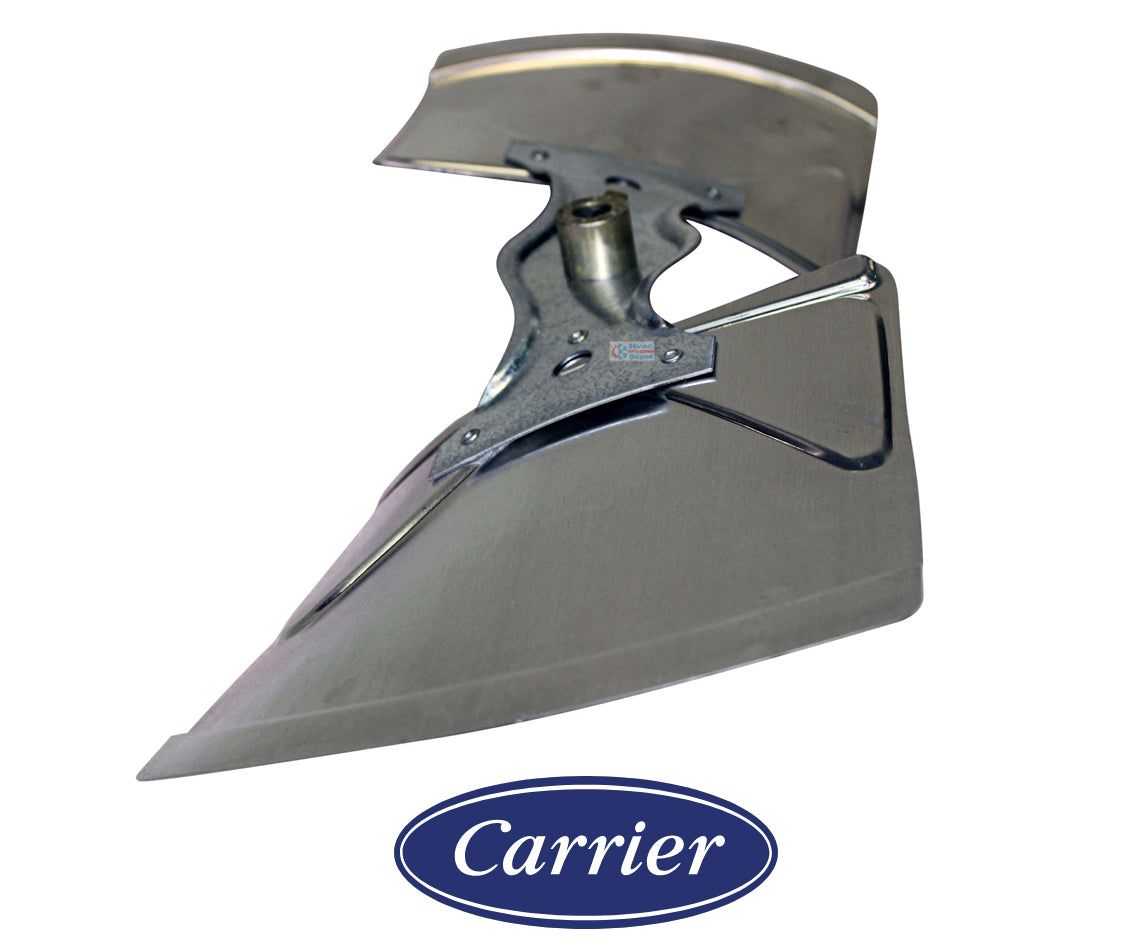

Factory Authorized Parts™ LA01RA222 Condenser Propeller Fan Blade 22" Diameter 2-Blade 20° Pitch 1/2" Bore

The High-Static Airflow Specialist

The LA01RA222 is a precision-engineered 22-inch axial fan blade acting as the primary aerodynamic "engine" for mid-sized Carrier, Bryant, and Payne outdoor units. As a genuine Factory Authorized Part, this propeller serves as the mechanical heart of the heat rejection system, pulling high volumes of ambient air through the condenser coils to maintain critical refrigerant pressures. It is specifically designed for residential air conditioners and heat pumps to ensure the system operates within its engineered SEER2 performance window. By utilizing a specialized 2-blade design with a 20-degree pitch, this propeller ensures your compressor stays cool and operates within its safe thermal range while minimizing the electrical load and decibel output of the condenser fan motor.

Key Features:

• Genuine OEM Aerodynamics: Engineered as part number LA01RA222 to meet the exact CFM-to-RPM ratios required by Carrier Corporation’s residential equipment line.
• Optimized 20° Pitch: Features a 20-degree blade angle designed for high-efficiency air movement even in high-ambient outdoor temperatures.
• Factory-Balanced Precision: Each 2-blade assembly is balanced at the factory to eliminate shaft "wobble," preventing premature wear on motor bearings and reducing cabinet vibration.
• Durable Performance Construction: Fabricated from high-grade, corrosion-resistant materials to withstand the thermal cycles and environmental exposure common in outdoor installations.
• Standard 1/2" Bore Hub: Features a reinforced center hub specifically sized for a 1/2-inch motor shaft, ensuring a slip-free mechanical connection for high-torque startups.

Product Details:

• Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
• Manufacturer: Carrier Corporation
• Part Number: LA01RA222
• Weight: 2.4 lbs
• Diameter: 22 Inches
• Number of Blades: 2
• Pitch: 20 Degrees
• Hub Bore Size: 1/2 Inch
• Rotation: CW (Clockwise) Facing Discharge

🛠️ HVAC Depot Pro Tip: Practical Installation Advice

"Check the Hub Depth!" Before removing the old LA01RA222, measure the exact distance from the motor body to the hub face using a tape measure. The blade must be centered vertically within the fan shroud orifice to prevent "air bypass," which can raise head pressure and trip safety switches. Take a Picture of the original set screw placement. Always ensure the set screw is tightened securely against the "flat" side of the motor shaft to prevent the blade from spinning loose or becoming permanently seized to the shaft during high-torque startups.

Cross-Reference:

• Superseded Numbers: LA01RA222A, LA01RA335
• Legacy / Brand Equivalents: Revcor XW2202-20RA, Revcor 609931, Revcor 609804
• Alternative Identifiers: Packard R22201, Johnstone Supply W89-222, NBK Parts 20485

Model Compatibility:

24ABC6 Series (Suffixes: 30A003, 30A00310, 36A003)

25HCE4 Series (Suffixes: 30A003, 30A00310, 36A003)

114ANA/116BNA Series (Suffixes: 030000, 036000)

BA14NA/BA16NA Series (Suffixes: 030, 036)

PA14NC/PA16NW Series (Suffixes: 030, 036)

561CJ/563BN Series (Suffixes: 030, 036)
