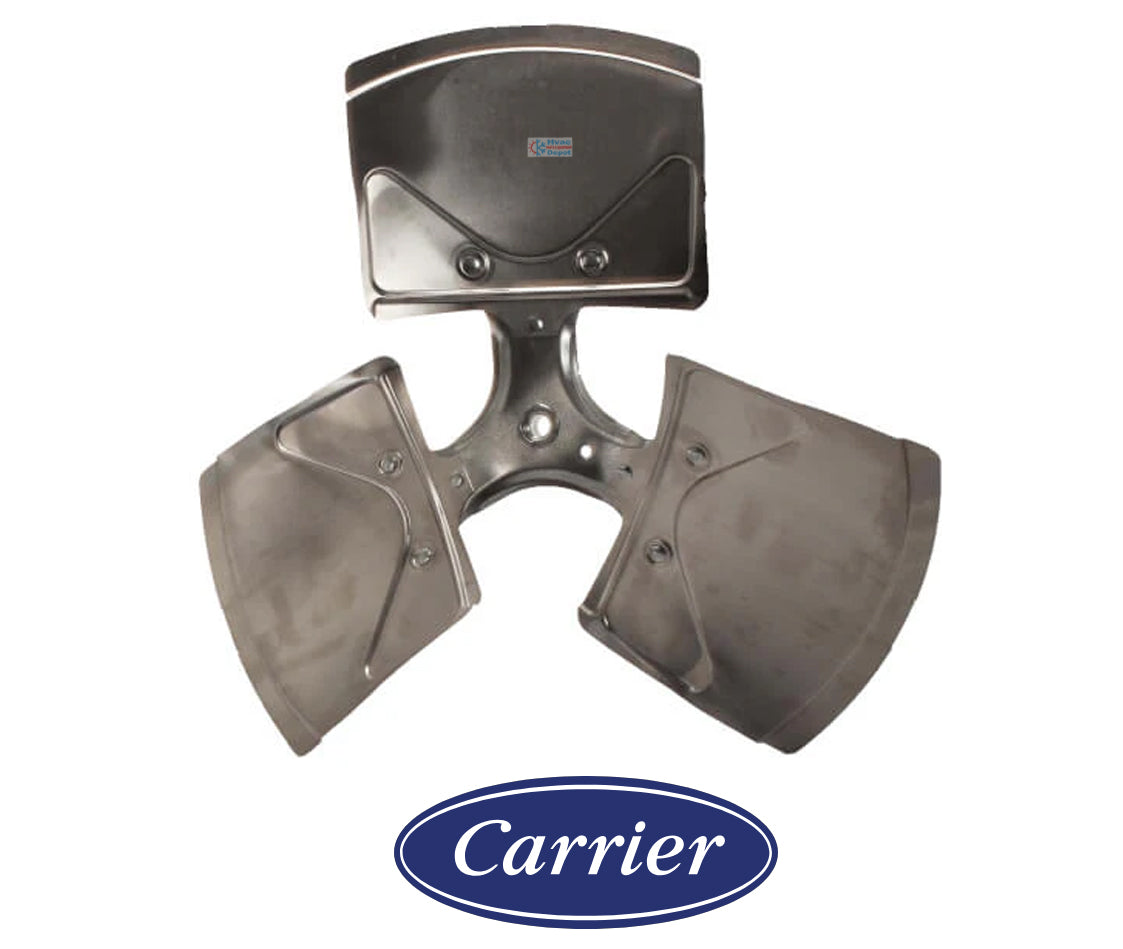

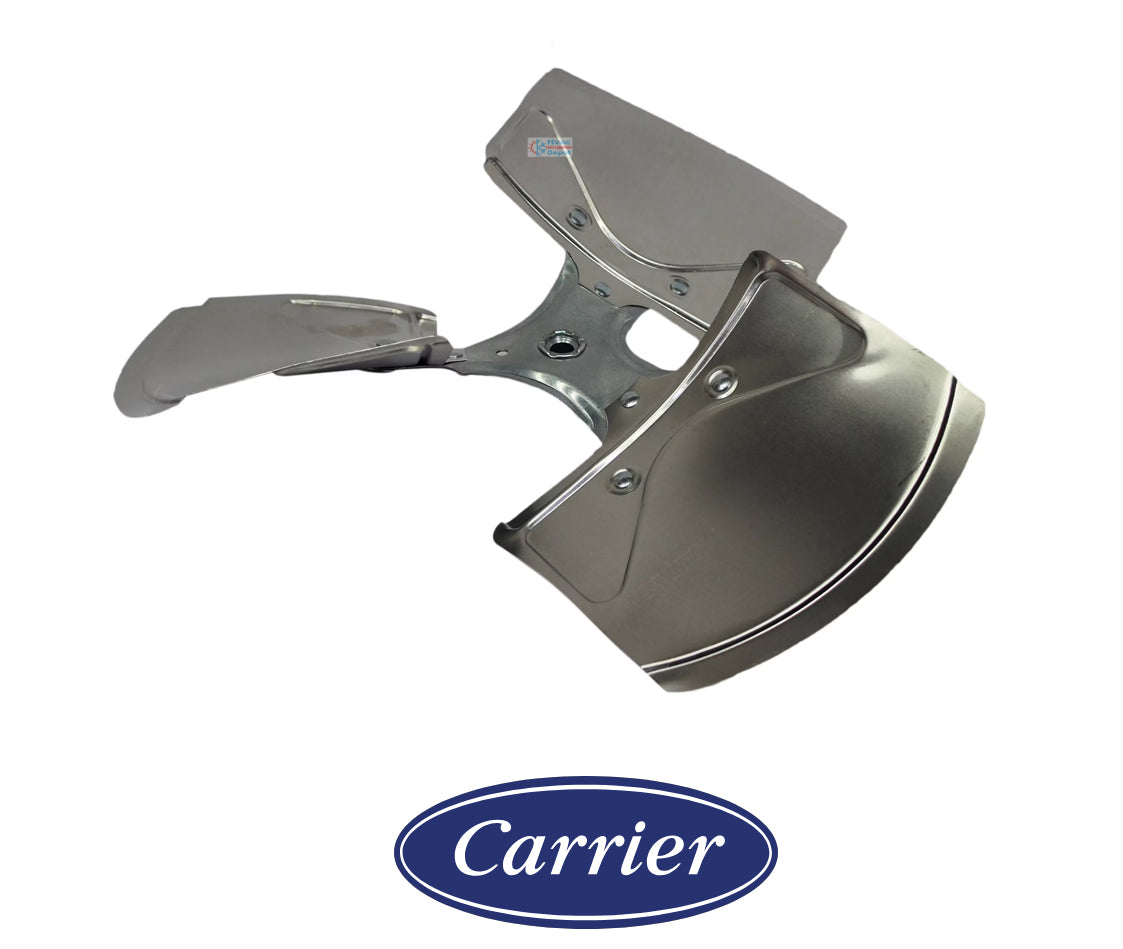

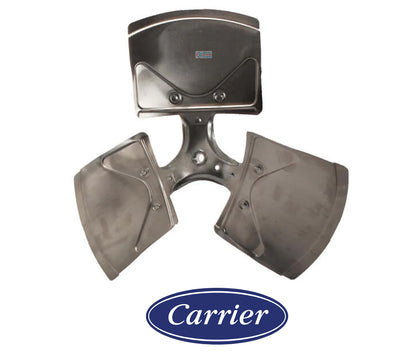

Factory Authorized Parts™ LA01RA015 Condenser Propeller Fan Blade 18" Diameter 3-Blade 26° Pitch 1/2" Bore

The High-Static Cooling Specialist

The LA01RA015 is a precision-engineered 18-inch condenser fan blade acting as the primary aerodynamic "engine" for compact Carrier, Bryant, and Payne outdoor units. As a genuine Factory Authorized Part, this propeller is the mechanical heart of the heat rejection system, pulling high volumes of ambient air through the condenser coils to maintain optimal refrigerant pressures. It is specifically designed for residential air conditioners and heat pumps where cabinet space is tight but airflow demands are high. By utilizing a steep 26-degree pitch, this 3-blade propeller generates the high static pressure required to overcome coil resistance, ensuring your compressor stays cool and operates within its engineered efficiency range even during peak summer temperatures.

Key Features:

• Genuine OEM Aerodynamics: Engineered as part number LA01RA015 to meet the exact CFM-to-RPM ratios required by Carrier Corporation’s compact outdoor series.
• Optimized 26° Pitch: Features a deep blade angle designed to move maximum air volume at lower RPMs, reducing electrical load on the fan motor.
• Factory-Balanced Precision: Each 3-blade assembly is balanced at the factory to eliminate shaft "wobble," which prevents premature wear on condenser fan motor bearings.
• Weather-Shield Construction: Fabricated from high-grade, corrosion-resistant materials designed to withstand the pitting and oxidation common in salt-air or high-humidity environments.
• Standard 1/2" Bore Hub: Features a reinforced center hub specifically sized for a 1/2-inch motor shaft, providing a slip-free mechanical connection for high-torque startups.

Product Details:

• Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
• Manufacturer: Carrier Corporation / Lau Industries
• Part Number: LA01RA015
• Diameter: 18 Inches
• Number of Blades: 3
• Pitch: 26 Degrees
• Hub Bore Size: 1/2 Inch
• Rotation: CW (Clockwise) Facing Discharge
• Weight: 2.8 lbs

🛠️ HVAC Depot Pro Tip: Practical Installation Advice

"Check the Hub Position!" Before sliding the old blade off the motor shaft, use a permanent marker to record the exact distance the hub sits from the motor body. The LA01RA015 must be centered perfectly within the fan shroud orifice; if it is set too deep or too shallow, you will create "air bypass," which can raise your head pressure and trip the high-pressure switch. Take a Picture of the set screw location. Always ensure the set screw is tightened onto the "flat" side of the motor shaft to prevent the blade from spinning loose or becoming permanently seized.

Cross-Reference:

• Superseded Numbers: LA01RA007, LA01RA012, P251-1803
• Legacy Numbers: 322610-701, 50YC501704
• Drawing Numbers: 00662441142279
• Equivalent Brands: Lau Industries, Revcor (Carrier Certified)

Model Compatibility:

38BYC Series (Suffixes: 018, 024, 030, 036)

38CKC Series (Suffixes: 018, 024, 030)

561CJ Series (Suffixes: 018, 024, 030)

661CJ Series (Suffixes: 018, 024)

PA3A/PH3A Series (Suffixes: 018000, 024000, 030000)
