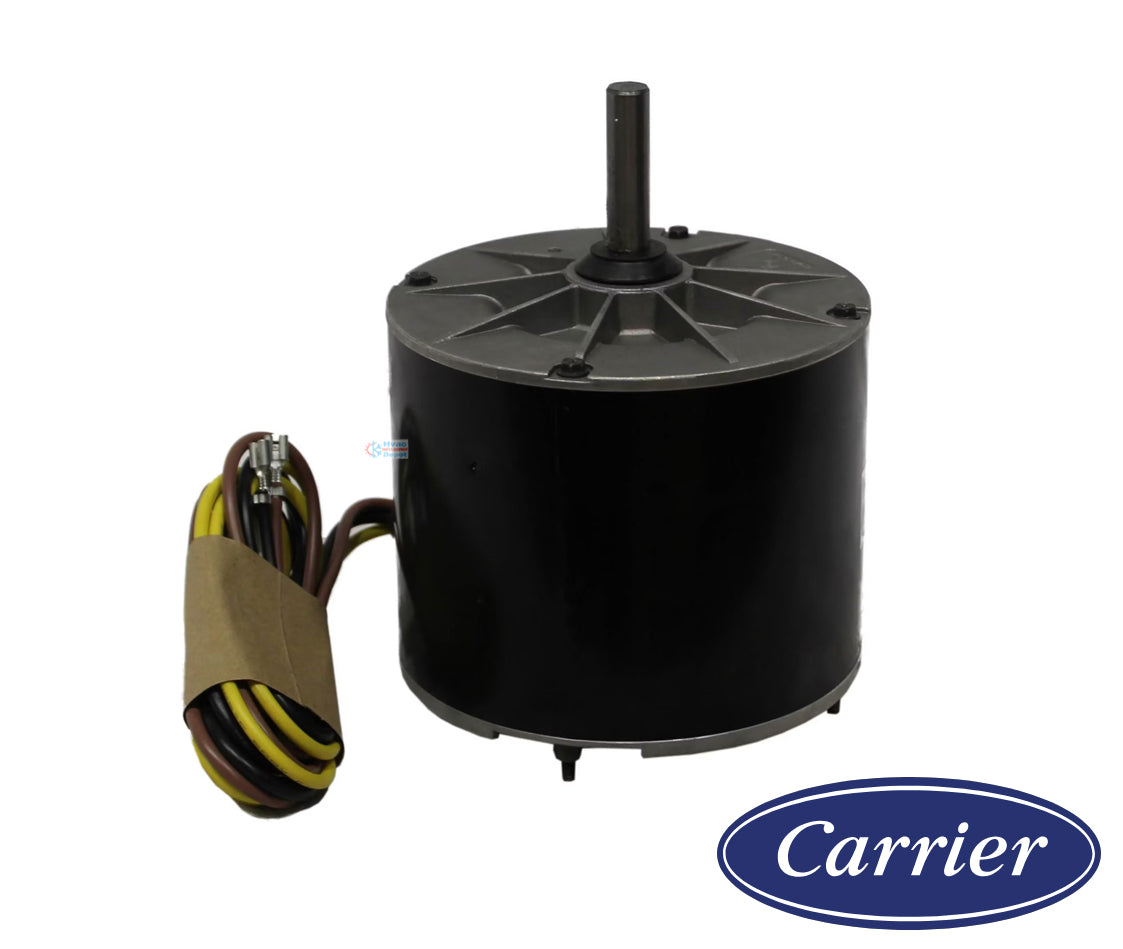

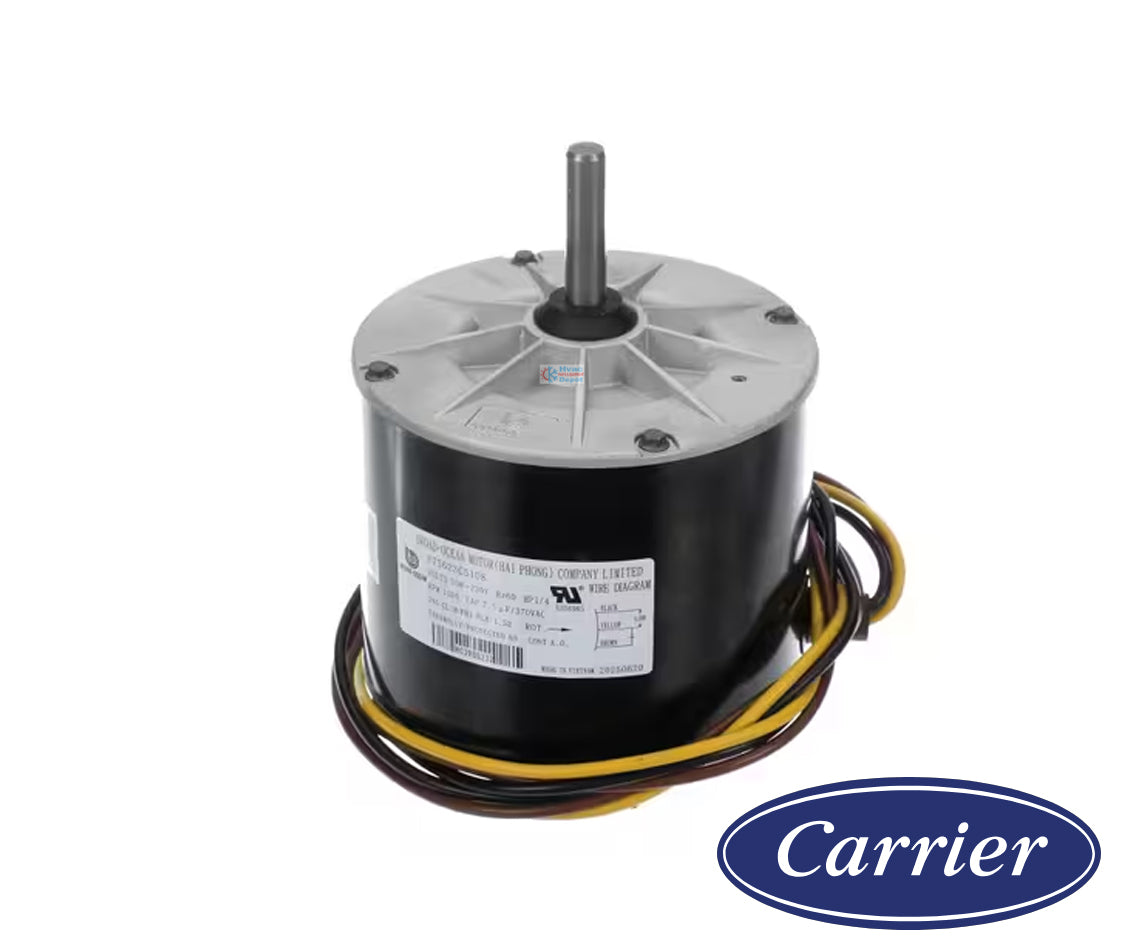

Factory Authorized Parts™ HC39GQ232 Condenser Fan Motor | 1/4 HP | 208-230V | 1075 RPM | 48-Frame | CCW Rotation

The Factory Authorized Parts™ HC39GQ232 serves as the primary "body" of your residential cooling system’s heat rejection cycle, functioning as the dedicated drive for the outdoor condenser fan. This OEM-focused motor is specifically engineered for Carrier, Bryant, and Payne air conditioners and heat pumps, ensuring the system's "brain" (the head pressure control) can effectively dissipate heat from the refrigerant coils even during peak summer temperatures. Operating at a steady 1075 RPM, this 1/4 HP motor provides the precise torque required for factory-spec propeller blades. Designed to replace failing or seized motors, the HC39GQ232 restores quiet, high-efficiency airflow, preventing high-pressure safety trips and protecting the compressor from thermal stress.

Key Features

• Genuine OEM Performance: Specifically engineered to replace part number HC39GQ232, ensuring exact electrical matching with Carrier-family 208/230V control circuits.
• Standardized 1075 RPM Operation: Calibrated for high-efficiency air movement while maintaining the whisper-quiet factory sound profile of your outdoor unit.
• Dynamic Vibration Resolution: Precision-balanced internal rotor fixes issues with cabinet shaking and fan-shroud rattling that lead to premature motor mount and blade failure.
• Sealed Ball Bearing Design: Features permanently lubricated bearings designed for all-angle mounting in outdoor environments, significantly reducing mechanical friction.
• Safety & Thermal Protection: Equipped with internal thermal overload protection to automatically shut down the motor in the event of overheating, preventing electrical shorts and motor burnout.

Product Details

• Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
• Manufacturer: Carrier Global Corporation
• Part #: HC39GQ232
• Weight: 11.45 lbs
• Horsepower: 1/4 HP
• Voltage: 208-230 VAC
• Speed: 1075 RPM
• Phase: Single Phase (1PH)
• Frequency: 60 Hz
• Frame Size: 48 Frame
• Rotation: Counter-Clockwise (CCW) as viewed from the lead end
• Enclosure: Totally Enclosed Air Over (TEAO)

🛠️ HVAC Depot Pro Tip

Take a Picture First: Before disconnecting the old motor wires from the contactor or defrost board, photograph the wire colors and their corresponding terminals. This ensures you correctly identify the Common, Start, and Run leads for the new HC39GQ232. Conduct a diagnostic check by inspecting the fan blade for any hairline cracks or pitch warpage while it is removed; an imbalanced blade is the leading cause of bearing failure in new motors. Always replace the run capacitor (check the motor nameplate for the specific MFD rating) to ensure the motor starts under its intended electrical load.

Cross-Reference

• Superseded / Legacy: HC39GQ231, P251-2404, 5H075110000
• Drawing / OEM Equivalents: 00PPG000014800, K55HXGGE-8086
• Brand Equivalents: Carrier, Bryant, Payne, Totaline, Day & Night
• Standard Equivalents: 48-Frame 1/4 HP 230V PSC Motor

Model Compatibility

• Carrier Performance/Comfort Series (Suffixes: 24ABB, 24ABC, 24ACC, 38BRC, 38CKC, 38EZG)
• Bryant Legacy Series (Suffixes: 113A, 113R, 114A, 114R, 123A, 124A)
• Payne PA Series (Suffixes: PA13NA030, PA13NA036, PA13NA042, PH13NA)
• Condensing Units (Suffixes: 38TRA, 38TZA, 38YRA, 38YZA)
