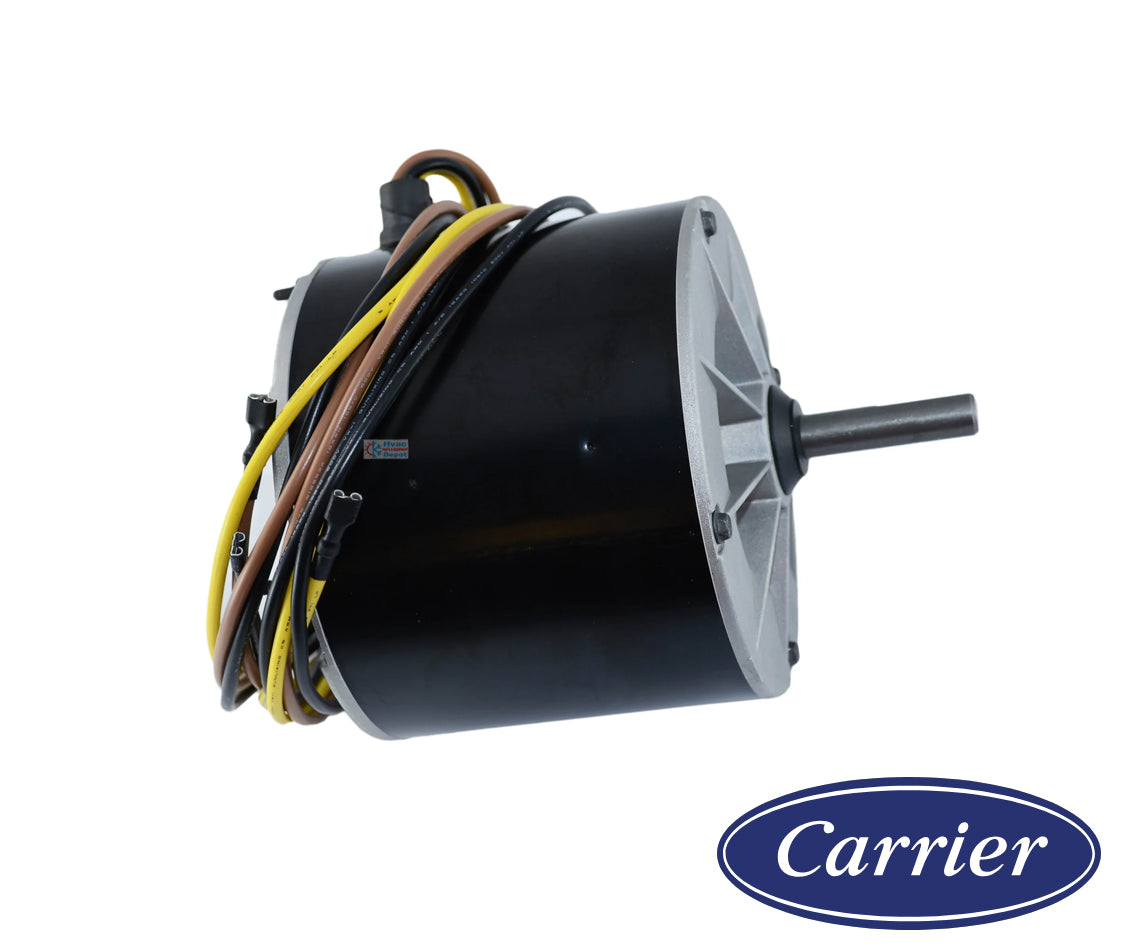

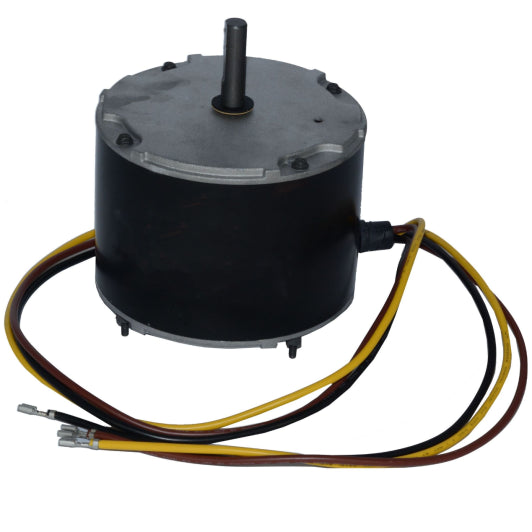

Factory Authorized Parts™ HB32GQ231 Condenser Fan Motor | 1/12 HP | 208-230V | 1075 RPM | 42-Frame | CCW Rotation

Factory Authorized Parts™ HB32GQ231 Condenser Fan Motor | 1/12 HP | 208-230V | 1075 RPM | 42-Frame | CCW Rotation

Low stock: 1 left

Regular price $385.75 USD
Regular price Sale price $385.75 USD
Sale Sold out
Shipping calculated at checkout.

Factory Authorized Parts™ - Fan Motor 1/12 HP

  • Restore Cooling Efficiency: Maintain optimal head pressure in your AC system by replacing a seized or weak 1/12 HP condenser motor.

  • Whisper-Quiet Performance: 1075 RPM speed rating and precision balancing eliminate the humming and rattling of aging motors.

  • Weather-Resistant Durability: The TEAO enclosure protects internal windings from rain, UV exposure, and outdoor debris.

  • Maintenance-Free Longevity: Permanently lubricated bearings eliminate the need for seasonal oiling and reduce service calls.

  • Standardized 42-Frame Fit: Designed for a 1:1 replacement in Carrier-family units, fitting original mounting brackets perfectly.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Details

  • Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
  • Manufacturer: Carrier Global Corporation
  • Part #: HB32GQ231
  • Weight: 8.40 lbs
  • Horsepower: 1/12 HP
  • Voltage: 208-230 VAC
  • Speed: 1075 RPM
  • Phase: Single Phase (1PH)
  • Frequency: 60 Hz
  • Frame Size: 42 Frame
  • Rotation: Counter-Clockwise (CCW) as viewed from the lead end
  • Enclosure: Totally Enclosed Air Over (TEAO)

description

Factory Authorized Parts™ HB32GQ231 Condenser Fan Motor | 1/12 HP | 208-230V | 1075 RPM | 42-Frame | CCW Rotation

The Factory Authorized Parts™ HB32GQ231 serves as the primary "body" of your outdoor unit’s heat rejection system, functioning as the dedicated drive for the condenser fan. This OEM-focused motor is specifically engineered for Carrier, Bryant, and Payne residential air conditioners and heat pumps, ensuring the system's "brain" (the head pressure control) can effectively dissipate heat from the refrigerant coils. Operating at a steady 1075 RPM, this 1/12 HP motor provides the precise torque required for factory-spec propeller blades. Designed to replace failing motors in compact outdoor sections, the HB32GQ231 restores quiet, efficient airflow, preventing high-pressure safety trips and protecting the compressor from thermal stress.

Key Features

  • Genuine OEM Performance: Specifically engineered to replace part number HB32GQ231, ensuring exact electrical matching with Carrier-family 208/230V control circuits.
  • Quiet 1075 RPM Operation: Calibrated for low-noise, high-efficiency air movement, maintaining the factory-standard sound profile of your outdoor unit.
  • Dynamic Vibration Resolution: Precision-balanced internal rotor fixes issues with cabinet shaking and rattling that lead to premature motor mount and blade failure.
  • Sealed Ball Bearing Design: Features permanently lubricated bearings designed for vertical shaft-up or shaft-down outdoor applications, reducing mechanical friction.
  • Safety & Thermal Protection: Equipped with internal thermal overload protection to automatically shut down the motor in the event of overheating, preventing electrical fires.

Product Details

  • Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
  • Manufacturer: Carrier Global Corporation
  • Part #: HB32GQ231
  • Weight: 8.40 lbs
  • Horsepower: 1/12 HP
  • Voltage: 208-230 VAC
  • Speed: 1075 RPM
  • Phase: Single Phase (1PH)
  • Frequency: 60 Hz
  • Frame Size: 42 Frame
  • Rotation: Counter-Clockwise (CCW) as viewed from the lead end
  • Enclosure: Totally Enclosed Air Over (TEAO)

🛠️ HVAC Depot Pro Tip

Take a Picture First: Before disconnecting the old motor wires from the defrost board or capacitor, photograph the terminal colors. This ensures you correctly identify the Common, Start, and Run leads for the new HB32GQ231. Conduct a diagnostic check by inspecting the fan blade for any hairline cracks or warpage while it is off the shaft; an imbalanced blade will ruin a new motor's bearings within weeks. Always replace the run capacitor (check the motor label for MFD rating) at the same time to ensure the motor starts under its intended electrical load.

Cross-Reference

  • Superseded / Legacy: HB32GQ230, P251-2402, 5H075010000
  • Drawing / OEM Equivalents: HC31GE231, HC31GE230, 00PPG000013900
  • Brand Equivalents: Carrier, Bryant, Payne, Totaline, Day & Night
  • Standard Equivalents: 42-Frame 1/12 HP 230V PSC Motor

Model Compatibility

  • Carrier Base Series (Suffixes: 24ABB, 24ABC, 24ACC, 38BRC, 38CKC, 38EZG)
  • Bryant Legacy Series (Suffixes: 113A, 113R, 114A, 114R, 123A, 124A)
  • Payne PA13 Series (Suffixes: PA13NA018, PA13NA024, PA13NA030, PH13NA)
  • Compact Air Handlers (Suffixes: Check specific blower assembly dimensions)



Specification
