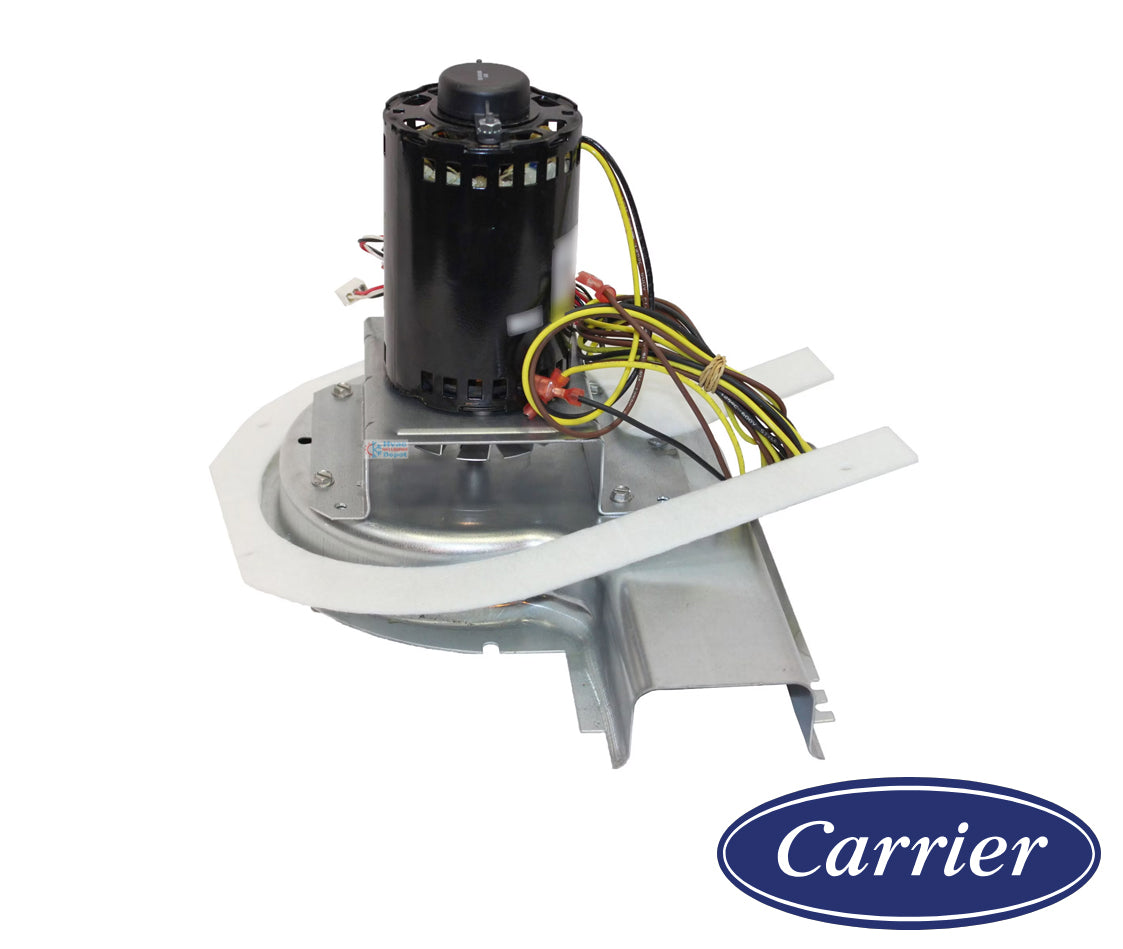

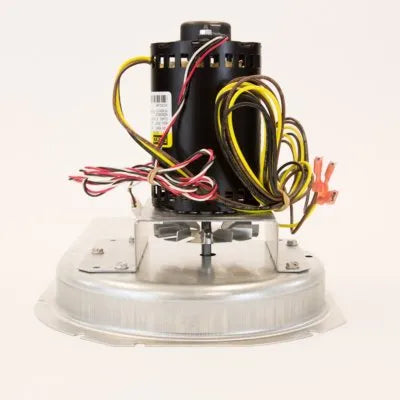

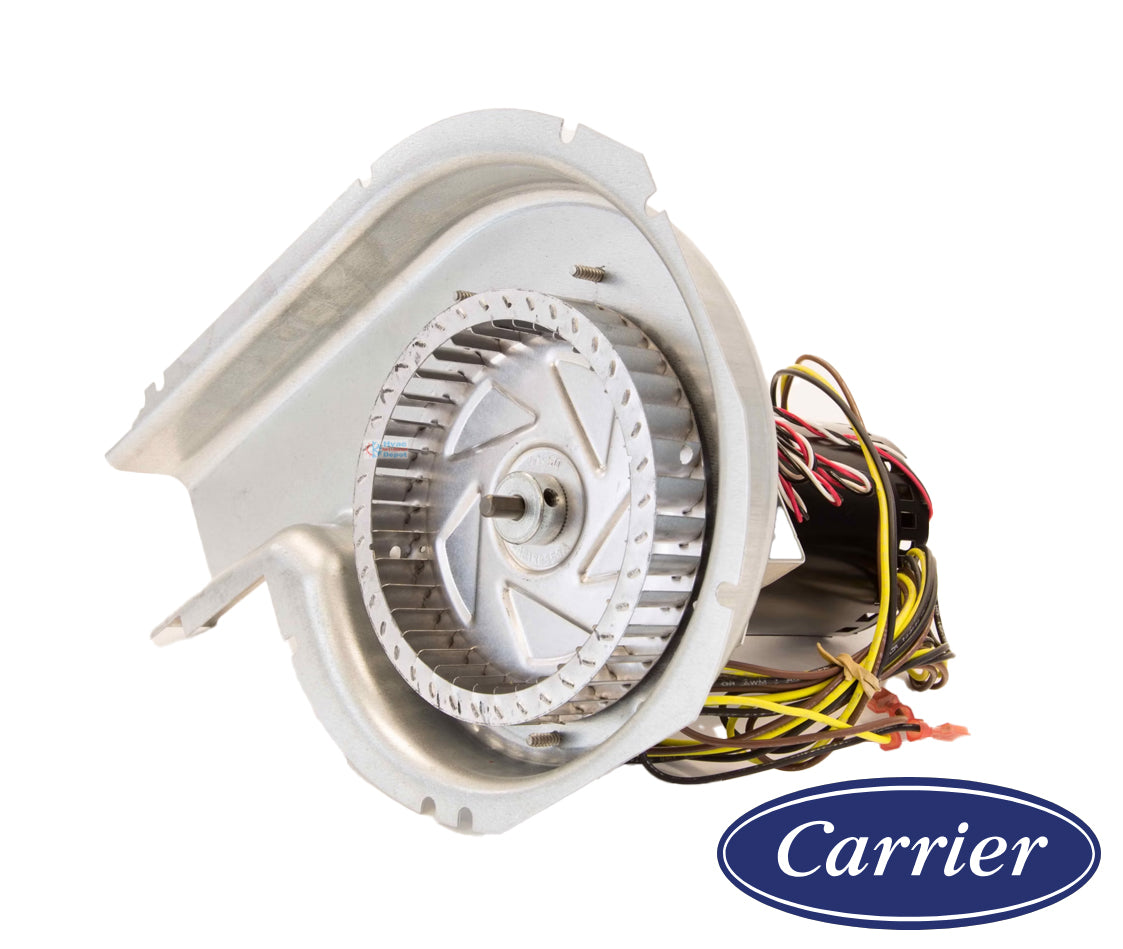

Factory Authorized Parts™ 50DK406816 Inducer Blower Assembly | 460V | 3450 RPM | 1/16 HP | 3-Phase | OEM Draft Inducer

The Factory Authorized Parts™ 50DK406816 serves as the critical "lungs" of your commercial furnace's combustion cycle, acting as the primary draft inducer assembly. This OEM-focused module is the specific component responsible for pulling air through the burners and exhausting combustion gases safely out of the vent pipe. Engineered for high-voltage Carrier and Bryant commercial rooftop units, this assembly ensures the system's "brain" (the pressure switch) can maintain the precise negative pressure required to initiate the ignition sequence. Replacing a failing or noisy motor with this genuine 460V assembly restores factory-spec airflow, ensuring an optimal air-to-fuel ratio and preventing safety lockouts.

Key Features

• Complete OEM Inducer Kit: Specifically engineered to replace part number 50DK406816, including the motor, blower wheel, housing, and gasket for a seamless "drop-in" installation.
• High-Voltage 460V Performance: Purpose-built for industrial 460V power systems, delivering the high-torque start required for heavy-duty commercial heating cycles.
• Dynamic Vibration Resolution: Factory-balanced to eliminate grinding, humming, or screeching noises that indicate worn bearings or a failing combustion blower.
• Sealed Ball Bearing Design: Features a permanently lubricated motor rated for continuous duty, reducing friction and extending the operational life in demanding rooftop environments.
• Advanced Combustion Safety: Precision-calibrated to maintain the draft required to close safety pressure switches, ensuring the system only ignites when exhaust gases are moving safely.

Product Details

• Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
• Manufacturer: Carrier Global Corporation
• Part #: 50DK406816
• Weight: 9.14 lbs
• Horsepower: 1/16 HP
• Voltage: 460 VAC (Also rated for 400V at 50Hz)
• Speed: 3450 RPM
• Phase: 3-Phase (Also fits specific 1-Phase applications)
• Amperage: 0.25 Amps
• Included Components: Inducer motor, blower wheel, fan housing, and gasket kit

🛠️ HVAC Depot Pro Tip

Take a Picture First: Before removing the old inducer, photograph the wiring harness and the vacuum tubing connections to the pressure switch. Because 460V commercial units often use complex wiring, a visual reference ensures the new 50DK406816 is phased correctly. Conduct a diagnostic check by inspecting the collector box for cracks or debris before mounting the new assembly; always use the included high-temp gasket to ensure an airtight seal, as even a minor air leak can prevent the pressure switch from closing.

Cross-Reference

• Superseded / Legacy: 48SS400607, 48SS400381, 50DK406182
• Drawing / OEM Equivalents: HC30GL460, JF1H143N, U62B1
• Packard / Aftermarket: Packard 66816
• Brand Equivalents: Carrier AquaSnap, Bryant Commercial, Daikin, Totaline

Model Compatibility

• Carrier 581B Series (Suffixes: 581BTV060115AA, 581BTV060115AH, 581BTV060115AD)
• Carrier Rooftop Units (Suffixes: 48HJ, 48TF, 48TJ, 48TM, 50HJ, 50TF, 50TJ)
• Bryant Commercial (Suffixes: 580C, 580D, 581B, 548F)
• Amana / Goodman (Suffixes: Cross-check with original equipment manufacturer specs)
