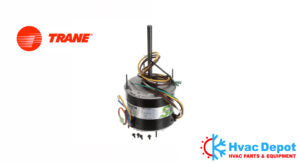

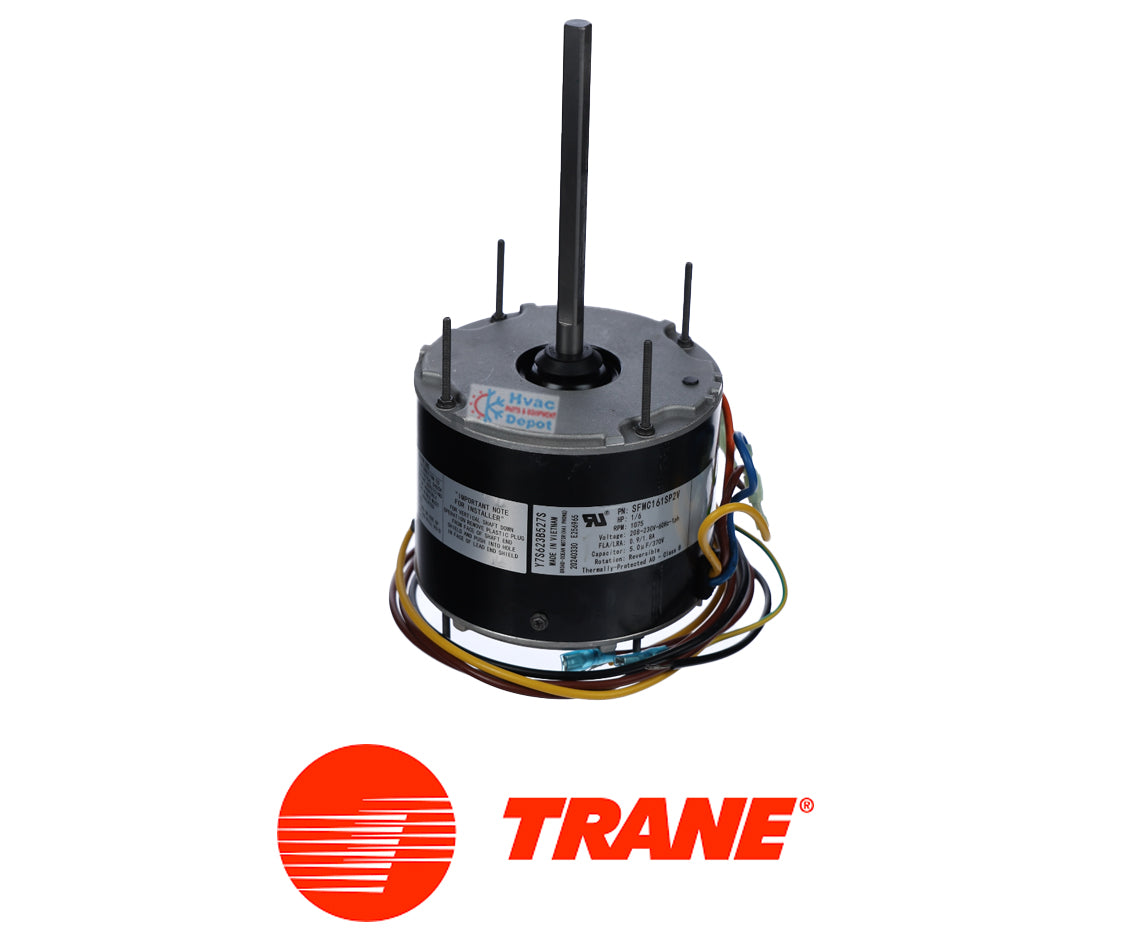

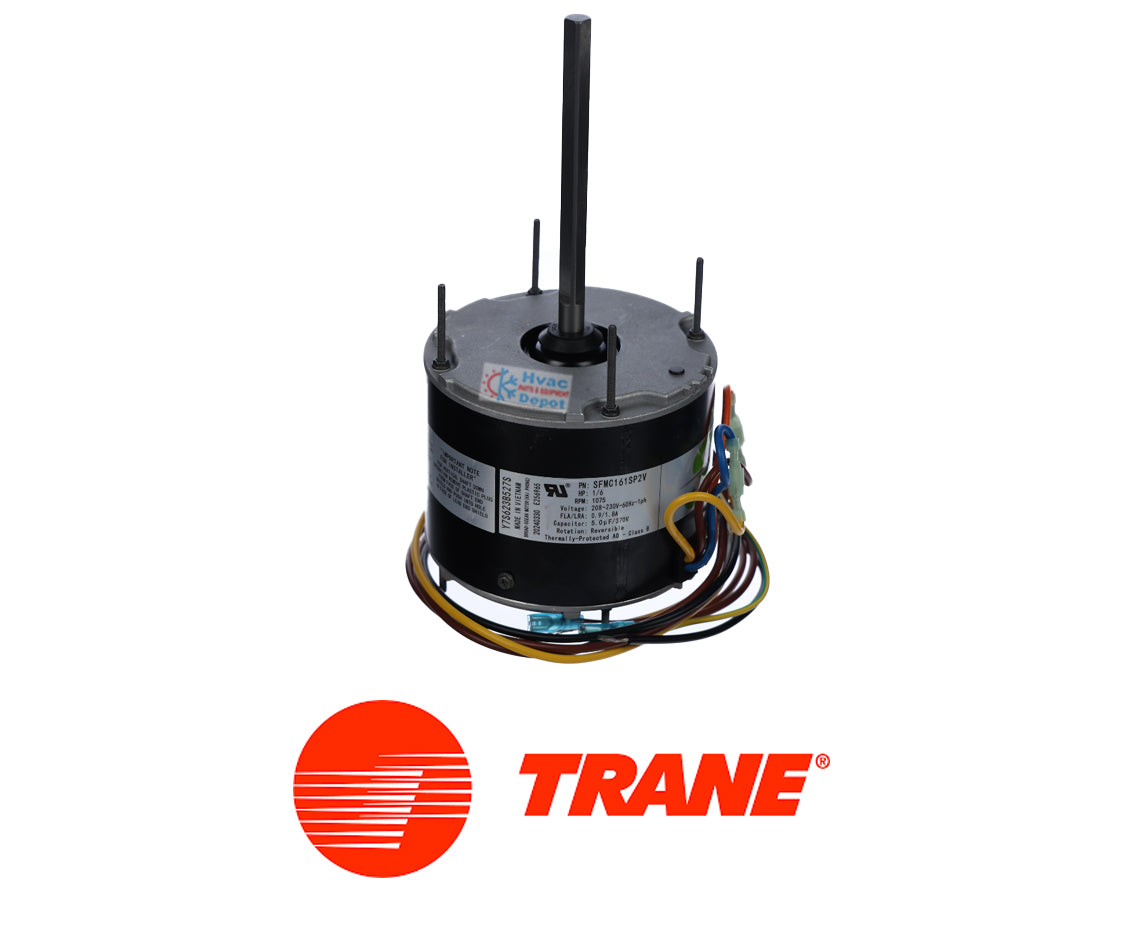

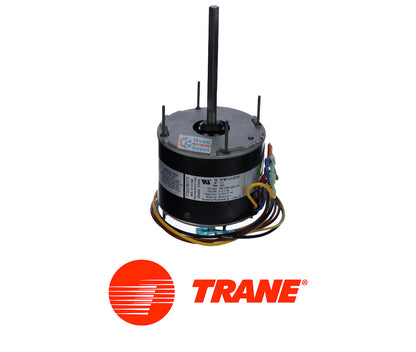

Trane SFMC161SP2V Condenser Fan Motor | 1/6 HP 208-230V 1075 RPM
Trane SFMC161SP2V Condenser Fan Motor | 1/6 HP 208-230V 1075 RPM
Quick Feature Highlights
-
Direct OEM Replacement: Ensures a perfect fit and function for original Trane specifications.
-
Standard 48Y Frame: Compatible with existing mounting plates and brackets in most Trane outdoor units.
-
Quiet Sleeve Bearings: Designed for low noise operation in residential areas.
-
Quiet Sleeve Bearings: Designed for low noise operation in residential areas.
-
Universal Wiring: Electrically reversible rotation handles both CW and CCW factory requirements.
Please visit our store for pick up.
Couldn't load pickup availability
safe & secure Checkout
Specifications
Specifications
Product Specification Details
- Brand: Trane / Service First (OEM)
- Horsepower (HP): 1/6 HP
- Voltage: 208–230 VAC
- RPM: 1075 RPM
- Amperage (FLA): 1.1A
- Frame Size: 48Y Frame
- Rotation: Electrically Reversible (CW/CCW)
- Phase / Freq: 1-Phase / 60 Hz
- Bearing Type: Sleeve Bearing
- Shaft Dimensions: 1/2 Inch Diameter x 4.2 Inch Long
- Capacitor Required: 5.0 MFD / 370V-440V (Sold Separately)
description
description
Trane SFMC161SP2V Condenser Fan Motor Is 1/6 HP 208-230V 1075 RPM
The Trane SFMC161SP2V is a genuine OEM Approved "Service First" replacement condenser fan motor designed for outdoor Trane air conditioning and heat pump systems. This 1/6 HP, single-phase motor operates at a precise 1075 RPM, providing essential airflow to cool the refrigerant coils and protect the compressor from overheating. As a factory-authorized part, it ensures an exact physical fit and the correct electrical specifications needed for reliable system operation.
Key Features
- Genuine OEM Component: Manufactured by Trane's Service First division for an exact physical and electrical match to the original factory motor.
- Optimal Airflow: 1075 RPM speed ensures efficient heat transfer and cooling in condenser units.
- Electrically Reversible: Can be wired for Clockwise (CW) or Counter-Clockwise (CCW) rotation for universal installation flexibility.
-
Thermally Protected: Features built-in thermal overload protection to prevent motor burnout and ensure safe operation.
Product Specification Details
- Brand: Trane / Service First (OEM)
- Horsepower (HP): 1/6 HP
- Voltage: 208–230 VAC
- RPM: 1075 RPM
- Amperage (FLA): 1.1A
- Frame Size: 48Y Frame
- Rotation: Electrically Reversible (CW/CCW)
- Phase / Freq: 1-Phase / 60 Hz
- Bearing Type: Sleeve Bearing
- Shaft Dimensions: 1/2 Inch Diameter x 4.2 Inch Long
- Capacitor Required: 5.0 MFD / 370V-440V (Sold Separately)
🛠️ HVAC Depot Pro Tip
This motor requires a 5 MFD capacitor. Always replace the run capacitor when replacing the motor; an old capacitor is the most common reason for premature motor failure. Mounting Check: This motor utilizes a standard 48Y frame and can be mounted vertically or horizontally, fitting existing Trane mounting plates easily.
Cross-Reference
-
Legacy & Equivalent P/Ns:
MOT12082, MOT09170, MOT13133, MOT16967, MOT08804, MOT12213 -
Drawing / X Numbers:
X70370245000 -
Manufacturer Model Numbers:
K55HXHWM-8900
Model Compatibility
This motor is a direct replacement for various Trane models. Consult your existing motor label or unit manual for exact compatibility.
- Fits Trane units using 1/6 HP, 1075 RPM, 208-230V condenser fan motors, including many XR and XB series models.
