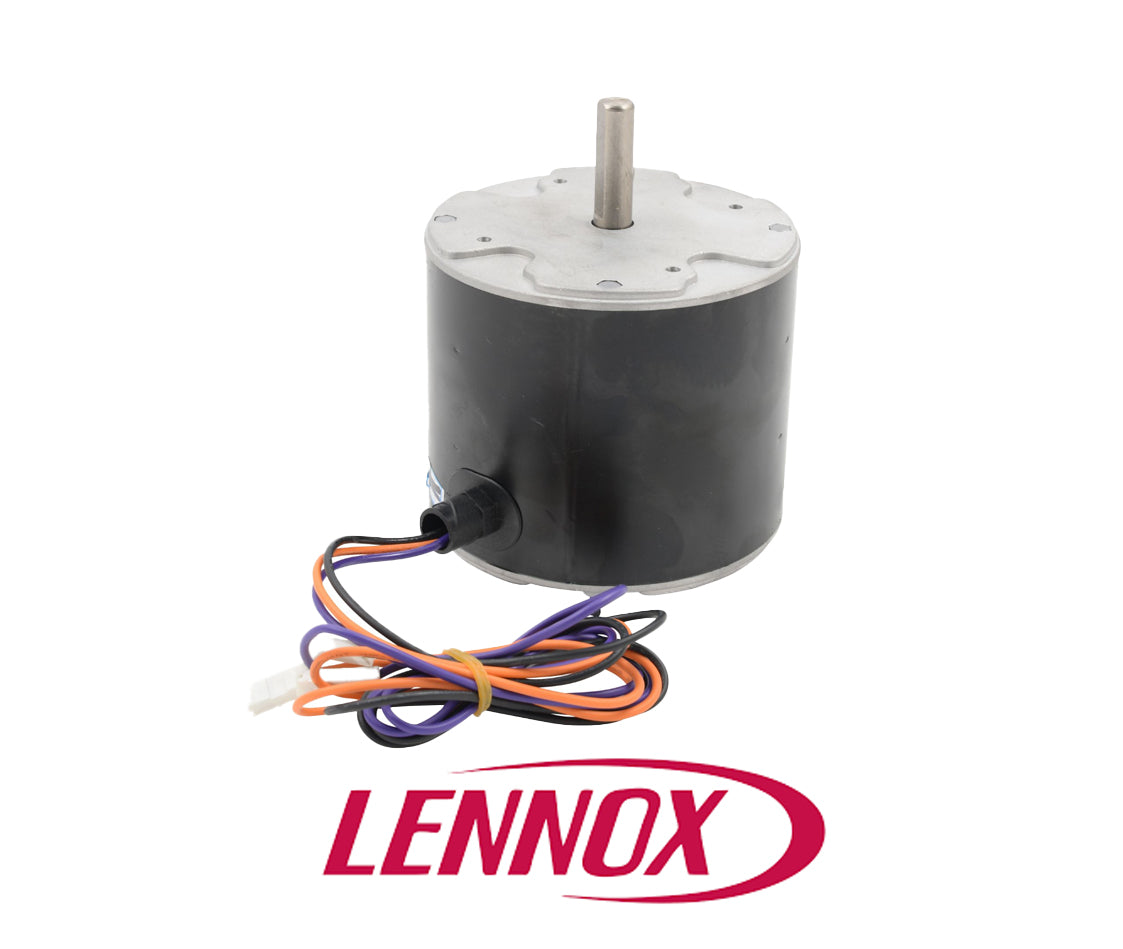

FirstChoice 19L30 Condenser Fan Motor - 1/4 HP 1075 RPM 460V 1PH 70C High Ambient

FirstChoice 19L30 Condenser Fan Motor - 1/4 HP 1075 RPM 460V 1PH 70C High Ambient

Regular price $169.20 USD
Regular price Sale price $169.20 USD
Sale Sold out
Shipping calculated at checkout.

FirstChoice, Condenser Fan Motor, 1/4 HP, 460V-1Ph, 1075 RPM, 70C

  • Commercial High-Voltage Reliability: Optimized for 460V single-phase systems found in industrial and retail rooftop applications.

  • Extreme Heat Endurance: The 70C rating ensures your AC stays running during peak afternoon heat when standard motors fail.

  • Genuine FirstChoice Fit: Avoid the frustration of universal motors with a direct-fit 48-frame and standard 1/2-inch flat-edge shaft.

  • Maintenance-Free Design: Permanently lubricated ball bearings eliminate the need for annual oiling or grease service.

  • Safety Integrated: Internal thermal overload protection automatically guards against motor burnout during airflow blockages.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Details

  • Brand: FirstChoice
  • Manufacturer: Lennox / Allied Air
  • Part Number: 19L30 (19L3001)
  • Weight: 14.8 lbs
  • Horsepower: 1/4 HP
  • Voltage: 460V
  • Phase: 1 Phase (Single Phase)
  • RPM: 1075
  • Ambient Temperature: 70C (High Ambient)
  • Frequency: 60 Hz
  • Frame Size: 48 Frame (5.6-inch diameter)
  • Capacitor Required: 5 MFD / 370V or 440V (Sold Separately)

description

The 19L30 is an industrial-grade FirstChoice condenser fan motor specifically engineered for high-voltage commercial HVAC systems. Functioning as the thermal "regulator" for the outdoor unit, this motor drives the fan blades to pull air through the condenser coil, managing the critical heat rejection process. This model is built to support Lennox and Allied commercial units that utilize a 460V single-phase power supply, common in industrial parks and large-scale rooftops. With its rigorous 70C (158°F) high-ambient rating, it is specifically designed to prevent thermal tripping in sun-drenched environments where standard 40C or 60C motors fail.

Key Features

  • Exact OEM Specification: The 19L30 is the direct factory replacement for catalog number 19L3001, ensuring 100% mechanical compatibility with existing factory motor mounts.
  • 460V Commercial Voltage: Specifically wound for high-voltage single-phase operation, eliminating the need for step-down transformers in commercial buildings.
  • 70C High-Ambient Endurance: Engineered with specialized insulation that allows continuous operation in temperatures up to 158°F, ideal for record-breaking summer heat.
  • Maintenance-Free Ball Bearings: Features permanently lubricated, double-sealed ball bearings designed to handle vertical-shaft-down loads without the need for manual oiling.
  • Integrated Safety Monitoring: Built-in automatic reset thermal overload protection monitors winding temperature to prevent catastrophic motor failure during airflow obstructions.

Product Details

  • Brand: FirstChoice
  • Manufacturer: Lennox / Allied Air
  • Part Number: 19L30 (19L3001)
  • Weight: 14.8 lbs
  • Horsepower: 1/4 HP
  • Voltage: 460V
  • Phase: 1 Phase (Single Phase)
  • RPM: 1075
  • Ambient Temperature: 70C (High Ambient)
  • Frequency: 60 Hz
  • Frame Size: 48 Frame (5.6-inch diameter)
  • Capacitor Required: 5 MFD / 370V or 440V (Sold Separately)

🛠️ HVAC Depot Pro Tip

"Check the Voltage"—The 19L30 is a 460V motor. Never attempt to test or run this motor on a standard 208-230V circuit, as it will not achieve torque and will likely damage the windings. When installing on a rooftop, ensure you install a fresh 440V-rated 5 MFD run capacitor. In commercial 460V systems, capacitors are under higher electrical stress; using an old or "weak" capacitor is the leading cause of new motor burnout. Always verify that the motor leads are secured with UV-resistant ties to prevent them from drooping into the fan blade path.

Cross-Reference

  • Direct Replacement: 19L3001, 100483-17
  • Superseded / Legacy: 78M72, 78M7201, 100483-04
  • Drawing / Factory Number: MOT19L30, 5KCP39FGM174S
  • Equivalent Models: Emerson 1860, Genteq 3860

Model Compatibility

  • Lennox T-Class (Suffixes: 036, 048, 060, 072)
  • Lennox Landmark LGC (Suffixes: 036, 048, 060)
  • Allied Commercial KGA (Suffixes: 036, 048, 060)
  • Lennox Rooftop (Suffixes: LGA036, LGA048, LGA060)
