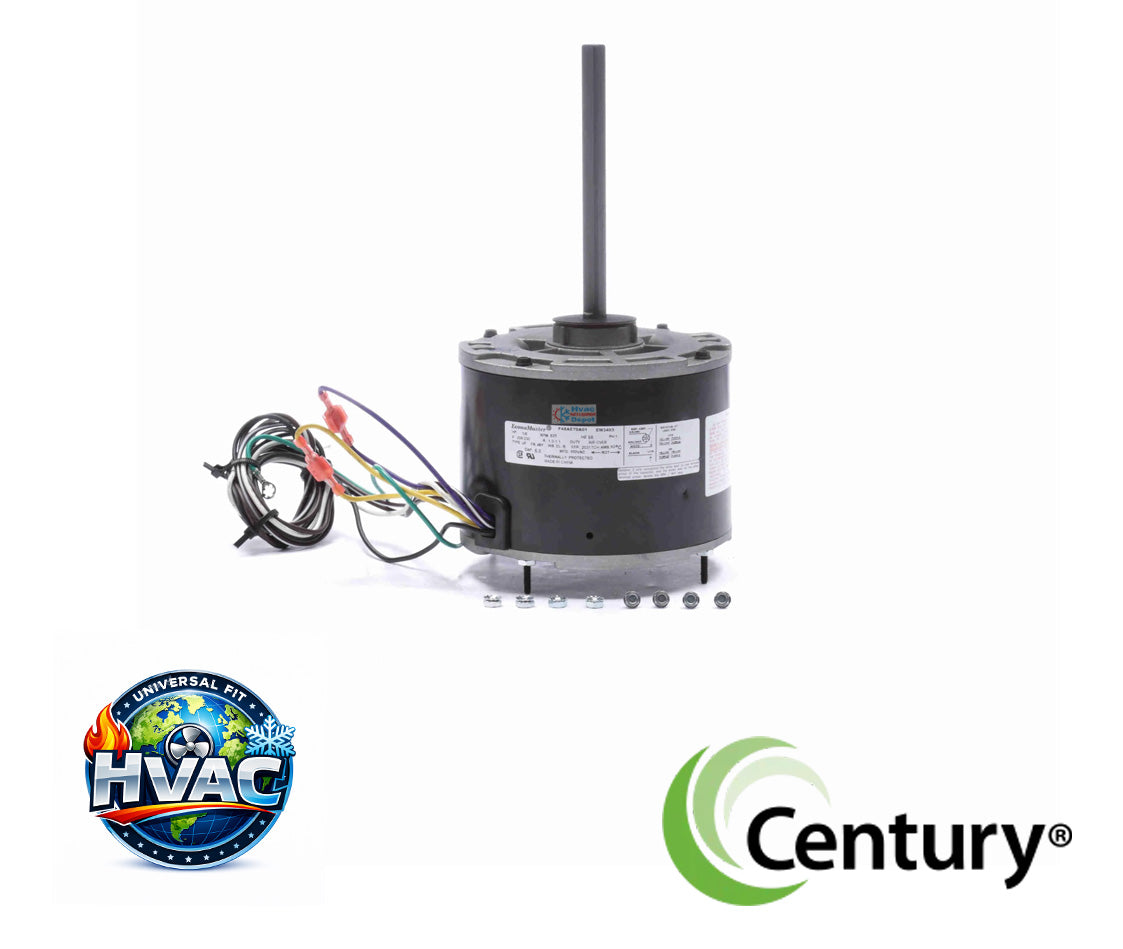

Condenser Fan Motor – 1/6 HP 208-230V 825 RPM Single-Speed TEAO Motor

Condenser Fan Motor – 1/6 HP 208-230V 825 RPM Single-Speed TEAO Motor

Low stock: 3 left

Regular price $180.00 USD
Regular price Sale price $180.00 USD
Sale Sold out
Shipping calculated at checkout.

Key Features & Specifications

  • Century PRO-E Series 1/6 HP condenser fan motor

  • 208-230V single-phase operation with 825 RPM performance

  • TEAO enclosure protects against outdoor contaminants

  • Ball bearing construction for long motor life

  • Requires 5 MFD 370V run capacitor for operation

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Details and Key Specifications:

Part Number: EM3403F
Manufacturer: Century / Regal Rexnord
Series: PRO-E Series®
Part Type: Condenser Fan Motor
Horsepower: 1/6 HP
Voltage: 208-230V
Phase: Single Phase (1PH)
Frequency: 60 Hz
Speed: Single Speed
RPM: 825 RPM
Frame: 48 Frame (48Y)
Motor Type: PSC (Permanent Split Capacitor)
Enclosure: TEAO (Totally Enclosed Air Over)
Rotation: Reversible
Amperage: 1.0 – 1.1 A
Capacitor Required: 5 MFD / 370V (Not Included)
Shaft Diameter: 1/2"
Shaft Length: 6"
Bearings: Ball Bearing
Thermal Protection: Automatic Overload Protection
Insulation Class: Class F
Application: Air Conditioner & Heat Pump Condensing Units
Shipping Weight: Approx. 10-12 lbs

description

Century PRO-E Series® EM3403F Condenser Fan Motor – 1/6 HP 208-230V 825 RPM Single-Speed TEAO Motor

The Century PRO-E Series® EM3403F Condenser Fan Motor is a premium replacement condenser fan motor engineered for reliable outdoor airflow performance in residential and light commercial air conditioning and heat pump systems. Designed with a 1/6 horsepower rating, 208-230V operation, and 825 RPM performance, this motor helps maintain proper condenser airflow for efficient heat rejection and cooling system operation.

Built with a Totally Enclosed Air Over (TEAO) design, ball bearings, and thermally protected PSC construction, the EM3403F delivers dependable performance in demanding outdoor HVAC environments. Its 48 frame design, reversible rotation capability, and heavy-duty construction make it a versatile replacement option for many condenser fan applications.


Key Features and Function:

Efficient Condenser Airflow Performance – Maintains proper heat transfer and cooling efficiency
PRO-E Series Reliability – Designed for demanding HVAC condenser applications
TEAO Enclosure Design – Protects against outdoor contaminants and moisture exposure
Ball Bearing Construction – Provides smooth operation and extended motor life





🛠️ HVAC Depot Pro Tip: Replace the Capacitor During Motor Installation

The EM3403F requires a 5 MFD 370V run capacitor for proper operation. Always test or replace the capacitor when installing a new condenser fan motor. A weak capacitor can cause overheating, slow startup, excessive amp draw, and premature motor failure.


Cross-Reference & Compatibility:

The Century EM3403F is commonly used as a replacement condenser fan motor for:

OEM Number: EM3403F
Series: Century PRO-E Series®
Motor Type: PSC Condenser Fan Motor
Capacitor Requirement: 5 MFD / 370V
Application: Residential & Light Commercial Condensing Units


Extensive Model Compatibility List:

Compatible HVAC Applications:

• Air Conditioning Condensing Units
• Heat Pump Condensing Units
• Residential Split Systems
• Rooftop HVAC Units
• Commercial Condensers
• Outdoor Fan Assemblies
• Refrigeration Condensing Units
• Universal 1/6 HP Condenser Fan Motor Applications

Always verify horsepower, voltage, RPM, shaft dimensions, rotation, mounting style, and capacitor requirements before ordering.
