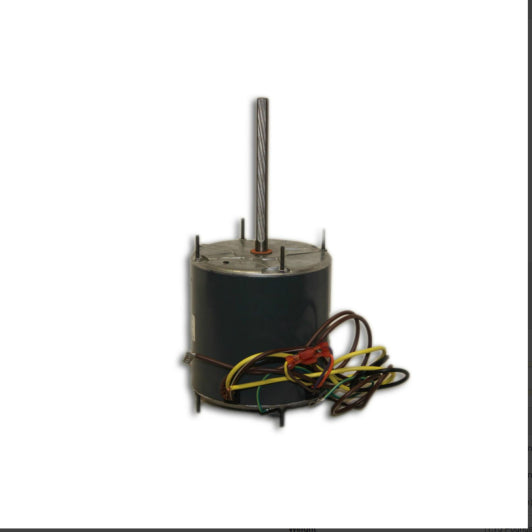

Totaline® P257-8254 Condenser Fan Motor | 1/4 HP 825 RPM 208-230V | Carrier Bryant Payne OEM Replacement

Totaline® P257-8254 Condenser Fan Motor | 1/4 HP 825 RPM 208-230V | Carrier Bryant Payne OEM Replacement

Regular price $365.00 USD
Regular price Sale price $365.00 USD
Sale Sold out
Shipping calculated at checkout.

Quick Details & Specifications

  • Unmatched Performance: The 825 RPM rating provides the high torque needed for standard Carrier-family fan blades.

  • Standard OEM Reliability: Genuine Totaline construction ensures long-term durability and factory-spec safety.

  • Restored System Quiet: Replaces loud, failing motors to bring back the original, smooth operation of your outdoor unit.

  • Thermal Safety Monitoring: Built-in protector prevents overheating, shielding your investment from electrical surges.

  • Universal 48Y Frame: Standard mounting pattern fits existing brackets perfectly with zero field modification.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Details

  • Brand: Totaline®
  • Manufacturer: Carrier Manufacturing
  • Part Number: P257-8254
  • UPC: 00822529538105
  • Horsepower: 1/4 HP
  • Voltage: 208-230 VAC
  • Speed: 825 RPM (1-Speed)
  • Amperage: 2.0 - 2.1 Amps (FLA)
  • Frame Size: 48Y NEMA Frame (5-5/8" Diameter)
  • Bearing Type: Ball Bearing / Sleeve (Series Dependent)
  • Enclosure: Totally Enclosed Air Over (TEAO)
  • Rotation: Reversible (REV)
  • Capacitor Required: 5 MFD / 370V (Standard)
  • Shipping Weight: 12.3 lbs



description

Totaline® P257-8254 Condenser Fan Motor | 1/4 HP 825 RPM 208-230V | Carrier Bryant Payne OEM Replacement


The Totaline P257-8254 is a high-performance, heavy-duty condenser fan motor that serves as the "mechanical heart" of outdoor cooling systems for Carrier, Bryant, and Payne units. As a genuine Factory Authorized component, it is designed to execute the critical task of heat rejection with factory-certified precision. This motor acts as the primary tool for the system's "brain," maintaining optimal head pressure to ensure the compressor operates within safe thermal limits. Engineered for a long service life in harsh outdoor environments, the P257-8254 is the standard for restoring original system efficiency and cooling capacity.


Key Features

  • Genuine Part Number P257-8254: A direct OEM fit that matches the exact electrical and mounting specifications of the original Carrier-family motor.
  • Precision 825 RPM Speed: Optimized for low-speed, high-torque operation to provide maximum airflow while maintaining a whisper-quiet outdoor environment.
  • Eliminates Vibration & Startup Issues: Replaces aging motors with worn bearings that cause "growling" noises, excessive cabinet vibration, or intermittent thermal tripping.
  • Integrated Safety Protection: Features an internal automatic reset thermal overload protector that guards the motor windings against burnout during extreme summer heat spikes.
  • Electrically Reversible Rotation: Offers total flexibility for various system configurations, ensuring the fan blade pulls air through the coils regardless of the unit's design.


Product Details

  • Brand: Totaline®
  • Manufacturer: Carrier Manufacturing
  • Part Number: P257-8254
  • UPC: 00822529538105
  • Horsepower: 1/4 HP
  • Voltage: 208-230 VAC
  • Speed: 825 RPM (1-Speed)
  • Amperage: 2.0 - 2.1 Amps (FLA)
  • Frame Size: 48Y NEMA Frame (5-5/8" Diameter)
  • Bearing Type: Ball Bearing / Sleeve (Series Dependent)
  • Enclosure: Totally Enclosed Air Over (TEAO)
  • Rotation: Reversible (REV)
  • Capacitor Required: 5 MFD / 370V (Standard)
  • Shipping Weight: 12.3 lbs


🛠️ HVAC Depot Pro Tip

"Take a Picture First" — Before you begin the teardown, photograph the wiring leads connected to the dual-run capacitor and contactor. Since the P257-8254 is a reversible motor, having a visual record of the original rotation setup (CW or CCW) is vital for a quick installation. When mounting, ensure the motor's drain plugs are facing down to prevent moisture buildup inside the shell. Always replace your 5 MFD capacitor during the swap—a weak capacitor is the leading cause of new motor "humming" and premature failure.


Cross-Reference

  • Superseded Parts:

    P257-3204, P257-3204HS, HB39GQ232
  • Legacy / Drawing Numbers:

    5KCP39BGS162S, 5KCP39BGY542S
  • White-Rodgers / Emerson Equivalents:

    Emerson 1860, Packard 40825, US Motors 1874


Model Compatibility

  • 24ACC (Suffixes: 430, 436, 448)
  • 38CKC (Suffixes: 030, 036, 042)
  • 561CJ (Suffixes: 030, 036, 042)
  • PA13NA (Suffixes: 030, 036, 042)
  • PH13NR (Suffixes: 030, 036)
