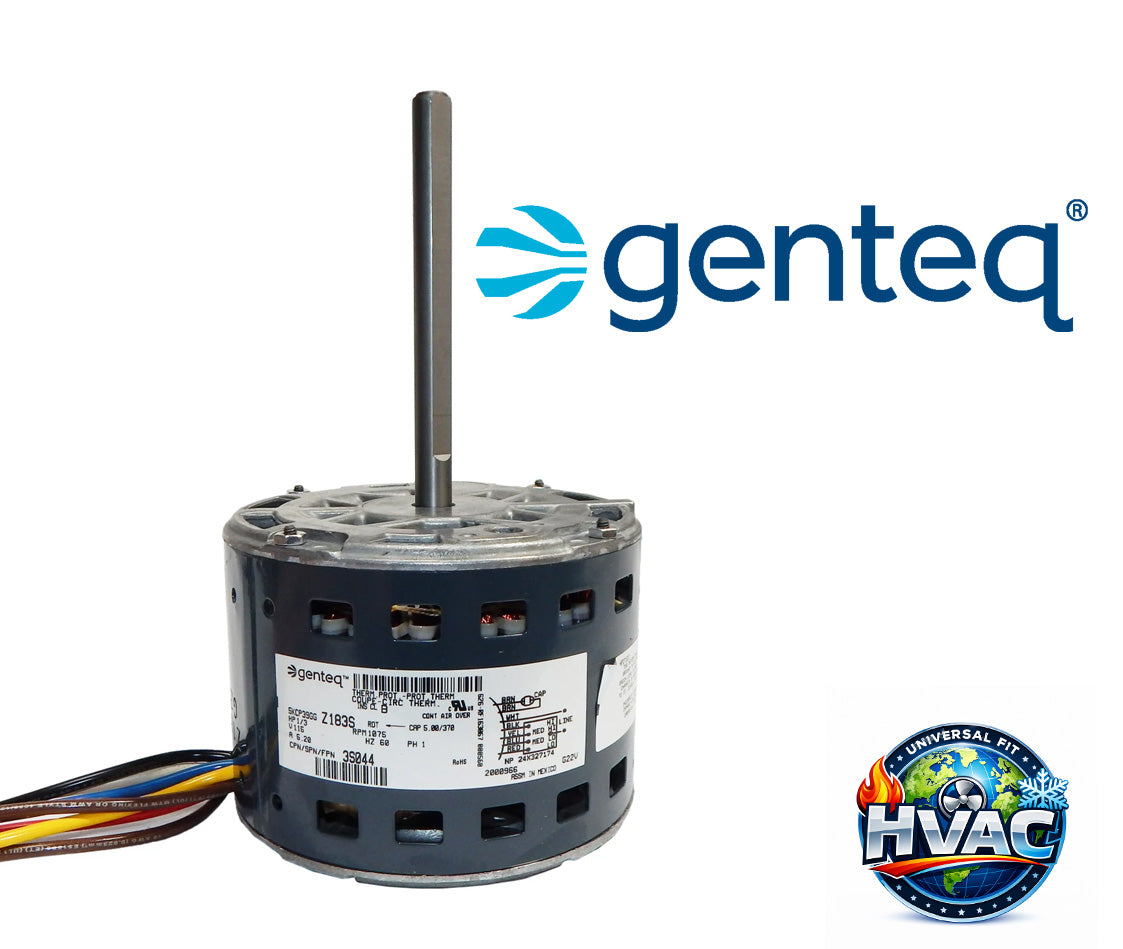

Carrier Replacement Condenser Fan Motor HC37GE210– 1/5 HP, 825 RPM, 208-230V, 1-Speed PSC 3S003
Carrier Replacement Condenser Fan Motor HC37GE210– 1/5 HP, 825 RPM, 208-230V, 1-Speed PSC 3S003
Low stock: 2 left
Carrier Condenser Fan Motor Specifications
Please visit our store for pick up.
safe & secure Checkout
Specifications
Specifications
description
description
Carrier Condenser Fan Motor Replacement – 1/5 HP, 825 RPM, 208-230V, 0.95A, PSC
The Carrier Replacement Condenser Fan Motor is designed for compatible Carrier, Bryant, and Payne air-conditioning condenser applications. This motor delivers 1/5 HP at 825 RPM, operates on 208-230 volts, and features a single-speed PSC (Permanent Split Capacitor) design.
Featuring CCWSE rotation, a 5-5/8-inch diameter 48 frame, and a 1/2-inch diameter keyed shaft, this motor is an excellent replacement option when the original motor specifications match. Common cross-reference numbers include 5KCP39GFY917S, 5KCP39GFS166S, 6DLL2, 3S002, and G3S003.
Key Features & Function
• 1/5 HP Motor – Designed for compatible condenser fan applications
• 825 RPM – Provides proper operating speed for compatible condenser fan assemblies
• 208-230 Volt Operation – Common residential and light-commercial HVAC voltage
• 0.95 Amp Rating
• 60 Hz Frequency
• PSC Motor – Permanent Split Capacitor design
• 1-Speed Operation
• CCWSE Rotation – Counterclockwise rotation when viewed from the shaft end
• 48 Frame
• 5-5/8" Motor Diameter
• 1/2" Diameter Keyed Shaft
• 1-1/2" Shaft Length
• 4-15/16" Motor Case Length
• Sleeve Bearing Construction
• 7.5 MFD Run Capacitor Required
• Run Capacitor Not Included
Product Details & Key Specifications
Specification
Details
Product Type
Condenser Fan Motor
Application
Carrier Replacement
Horsepower
1/5 HP
Voltage
208-230V
Frequency
60 Hz
Amperage
0.95 A
RPM
825
Number of Speeds
1
Motor Type
PSC
Rotation
CCWSE
Frame Size
48
Motor Diameter
5-5/8"
Shaft Diameter
1/2"
Shaft Length
1-1/2"
Shaft Type
Keyed
Motor Case Length
4-15/16"
Bearing Type
Sleeve
Run Capacitor
7.5 MFD
Capacitor Included
No
Application Type
Outdoor Condenser Fan
🛠️ HVAC Depot Pro Tip: Match the Entire Motor Specification
Do not replace a condenser fan motor based only on horsepower and RPM. Before ordering, compare the original motor nameplate with the replacement and verify:
• 1/5 HP
• 825 RPM
• 208-230V
• 0.95 Amps
• 60 Hz
• Single Speed
• PSC Design
• CCWSE Rotation
• 48 Frame / 5-5/8" Diameter
• 1/2" x 1-1/2" Keyed Shaft
• Mounting Configuration
• 7.5 MFD Capacitor Requirement
When installing a new PSC condenser fan motor, inspect the run capacitor and replace it if necessary. Always use the MFD and voltage rating specified by the replacement motor manufacturer.
Cross-Reference & Replacement Numbers
This Carrier replacement condenser fan motor cross-references with:
5KCP39GFY917S
5KCP39GFS166S
6DLL2
3S002
G3S003
These numbers are valuable for customers searching by the number printed on their original condenser fan motor.
Equipment & Brand Compatibility
Designed for select applications from:
• Carrier
• Bryant
• Payne
• Carrier-family residential air conditioners
• Carrier-family heat pump systems
• Outdoor condensing units
• Residential HVAC equipment
• Light-commercial HVAC equipment
Important Compatibility Note
Motor cross-reference numbers are helpful, but the original motor specifications should always be compared before ordering. Equipment within the same model family can sometimes use different motors depending on production date and serial number.
