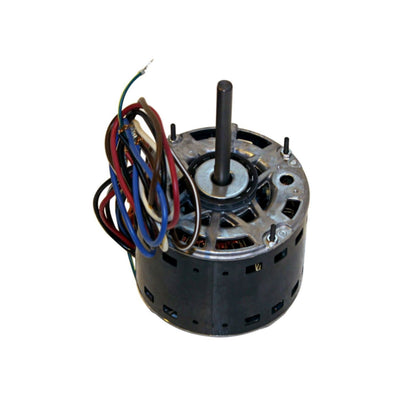

Carrier P257-8584 Direct Drive Blower Motor – 1/4 HP, 208-230 VAC, 1,075 RPM, 3-Speed PSC

Name: Carrier P257-8584 Direct Drive Blower Motor – 1/4 HP, 208-230 VAC, 1,075 RPM, 3-Speed PSC
Brand: Carrier
SKU: P257-8584
Price: 198.00 USD
Availability: InStock

$198.00 USD

Sale Sold out

Shipping calculated at checkout.

Totaline Direct Drive Blower Motors

High-Voltage Stability: Purpose-built for 208-230V systems to prevent the overheating issues common with mismatched voltage motors.
Restore Quiet Airflow: Eliminate the squealing, grinding, or humming of a failing blower for a more peaceful home environment.
OEM Fit Guarantee: Standard 48Y frame fits your existing Carrier/Bryant/Payne motor mounts perfectly without the need for modification.
Prevent Coil Freezing: Maintaining 1,075 RPM ensures the correct air volume passes over your cooling coil to prevent ice buildup.
Three-Speed Customization: Fine-tune your system's performance by selecting the ideal speed for your specific ductwork and comfort needs.

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Details

Brand: TOTALINE® (Carrier Authorized)
Manufacturer Part #: P257-8584
Weight: 11.5 lbs
Horsepower (HP): 1/4 HP
Voltage: 208-230 VAC
Full Load Amps (FLA): 1.8 - 2.5 Amps (varies by load)
RPM: 1,075 RPM
Speeds: 3-Speed
Frame Size: 48Y (5.6-inch diameter)
Capacitor Required: 5 MFD @ 370 VAC (Verify on nameplate)
Enclosure: Open Drip Proof (ODP)

description

Carrier P257-8584 Direct Drive Blower Motor – 1/4 HP, 208-230 VAC, 1,075 RPM, 3-Speed PSC

The Efficient Airflow Solution for High-Voltage Systems

The TOTALINE® P257-8584 is a professional-grade, 1/4 HP direct-drive blower motor specifically designed for 208-230V residential and light commercial HVAC applications. As a factory-authorized OEM replacement part for Carrier, Bryant, and Payne equipment, this Permanent Split Capacitor (PSC) motor acts as the "lungs" of your fan coil or air handler, precisely moving conditioned air through your indoor space. Engineered for high-voltage reliability, it features a versatile 3-speed configuration that allows your system to balance airflow for varied heating and cooling demands, ensuring whisper-quiet operation and consistent temperature control.

Key Features

Part Number Reliability: The P257-8584 is a genuine Totaline component, ensuring an exact electrical and physical drop-in fit for original Carrier-family high-voltage units.
High-Voltage Versatility: Dual-rated for 208-230 VAC operation, making it the perfect match for heat pump air handlers and high-voltage furnace systems.
Precision Speed Taps: Includes High, Medium, and Low speed leads, allowing for expert tuning of CFM delivery to prevent evaporator coil freezing or inadequate heat rise.
Internal Safety Protection: Equipped with an automatic reset thermal overload protector that shields motor windings from damage during restricted airflow or voltage spikes.
Field-Reversible Rotation: Features a reversible rotation design, providing the flexibility to match the specific blower housing orientation of your indoor equipment.

Product Details

Brand: TOTALINE® (Carrier Authorized)
Manufacturer Part #: P257-8584
Weight: 11.5 lbs
Horsepower (HP): 1/4 HP
Voltage: 208-230 VAC
Full Load Amps (FLA): 1.8 - 2.5 Amps (varies by load)
RPM: 1,075 RPM
Speeds: 3-Speed
Frame Size: 48Y (5.6-inch diameter)
Capacitor Required: 5 MFD @ 370 VAC (Verify on nameplate)
Enclosure: Open Drip Proof (ODP)

🛠️ HVAC Depot Pro Tip

"Never Skip the Capacitor." When replacing a motor with a high-voltage rating like the P257-8584, the start-up torque is critical. An old or "weak" capacitor will cause the motor to draw excessive amperage and run hot, leading to a shortened lifespan. Always install a new 5 MFD / 370V capacitor at the same time. Additionally, ensure the blower wheel is clean; even a thin layer of dust on the blades can increase the load on a 1/4 HP motor, causing it to trip on thermal overload.

Cross-Reference

Superseded/Legacy Numbers: 1171803, F257-3584, F2573584, P257-8284, HC37AE229
Equivalent Model Numbers: 5KCP39FGV614S, K55HXJGE-2328, HC37AE230
White-Rodgers/Emerson Equivalents: Emerson 1860, 50M51-243 (Control logic)
Other Equivalents: MARS 10584, Wagner WG840584, Packard FDL1026 (230V)

Model Compatibility

Carrier/Bryant FB4B (Suffixes: 018, 024, 030**)**
Carrier/Bryant FA4A (Suffixes: 018, 024, 030**)**
Payne PF4M (Suffixes: 018, 024, 030**)**
Carrier/Bryant 40AQ (Suffixes: 018, 024**)**
Carrier/Bryant FC4D (Suffixes: 018, 024, 030**)**
