Factory Authorized Parts™ LH33ZS004 Furnace Hot Surface Igniter (HSI) 80V
Factory Authorized Parts™ LH33ZS004 Furnace Hot Surface Igniter (HSI) 80V
Low stock: 3 left
Factory Authorized Parts™ - LH33ZS004 Ignitor
Please visit our store for pick up.
safe & secure Checkout
Specifications
Specifications
description
description

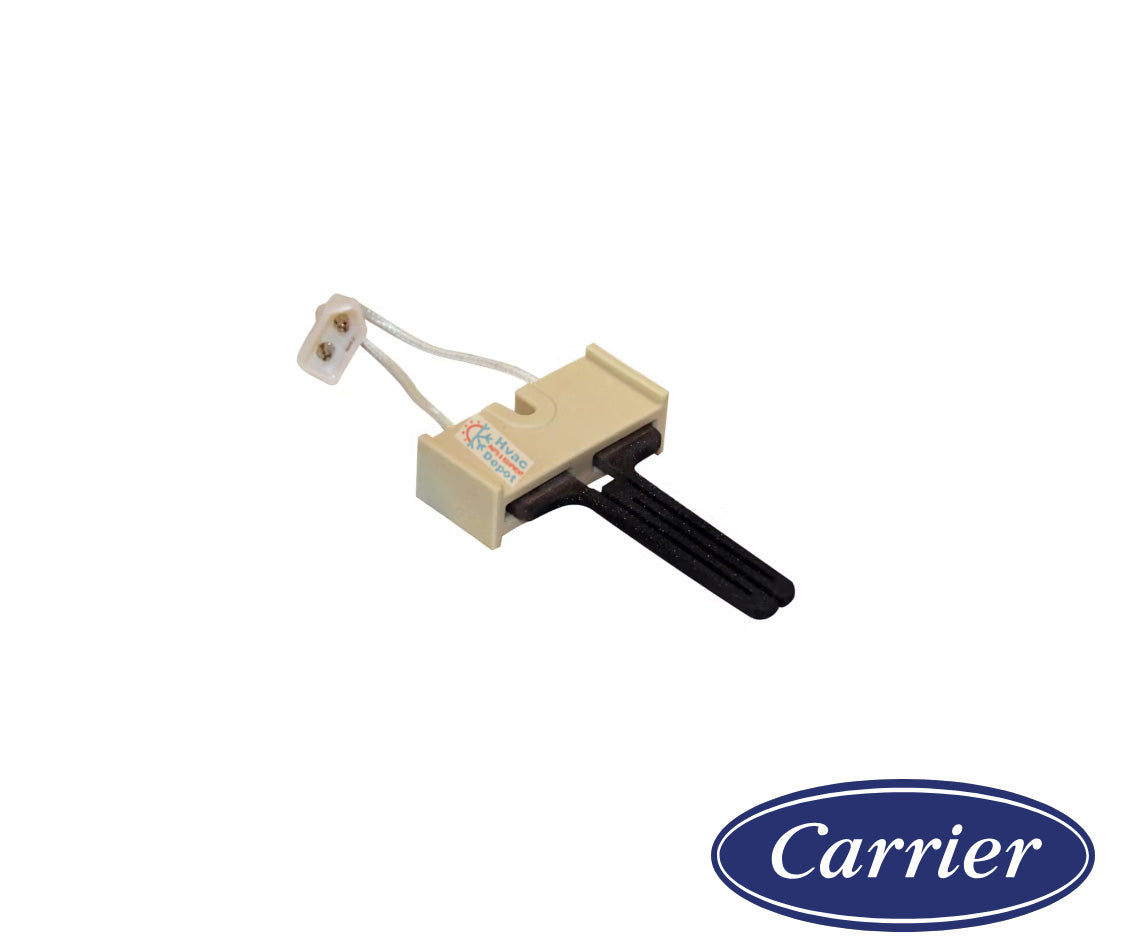

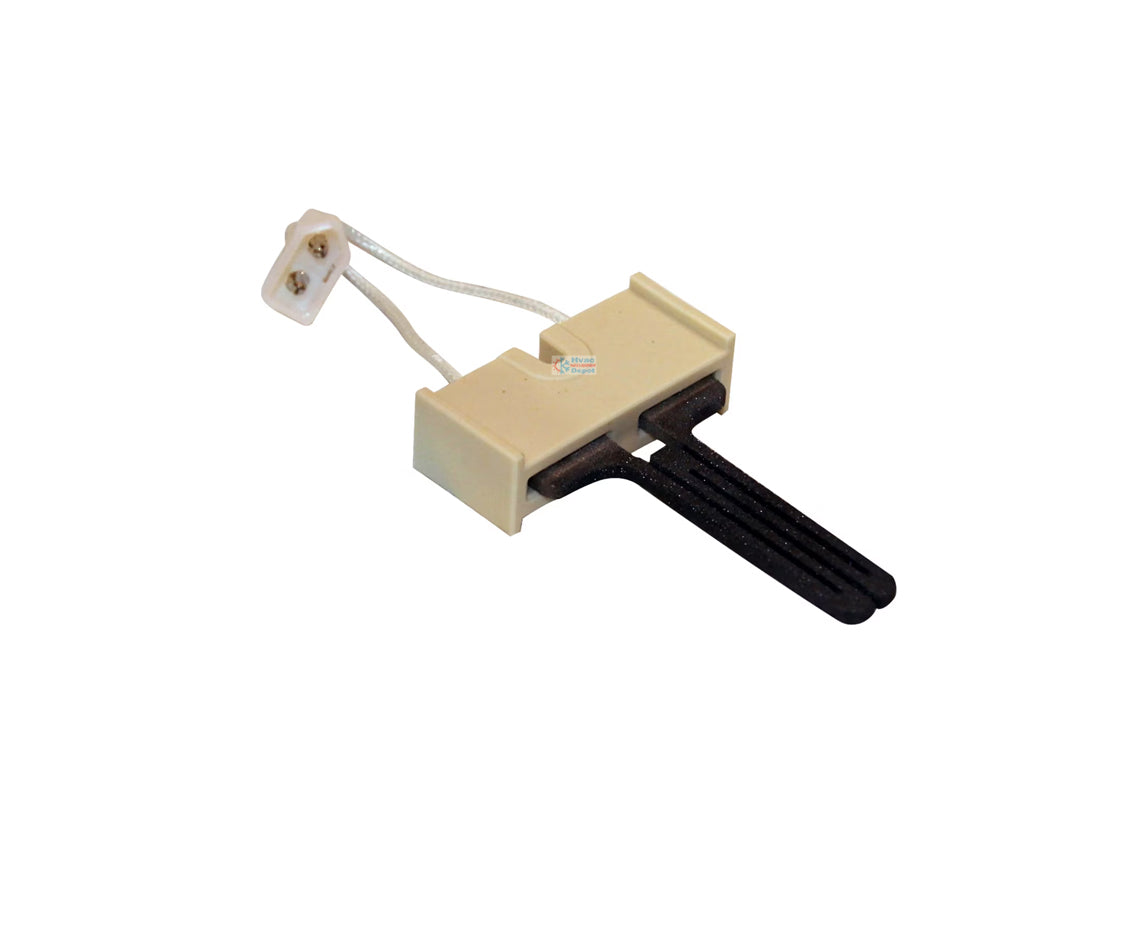

Factory Authorized Parts™ LH33ZS004 Furnace Hot Surface Igniter (HSI) 80V
The Precision Ignition Source
The LH33ZS004 is a high-performance 80V Hot Surface Igniter engineered as the critical "spark" for modern high-efficiency Carrier, Bryant, and Payne gas furnaces. As a genuine Factory Authorized Part, this igniter serves as the starting point for the combustion cycle, reaching extreme temperatures in seconds to safely light the burner assembly. It is specifically designed to work in tandem with the furnace's control board logic, ensuring precise ignition timing and preventing unburned gas buildup. Constructed from advanced ceramic and silicon carbide materials, it provides the fast-glow capability required by contemporary 90% AFUE and ultra-low NOx furnace series, maintaining the system's reputation for quiet and reliable heating.
Key Features:
- Genuine OEM Precision: Engineered under part number LH33ZS004 to meet the exact electrical resistance and voltage requirements of Carrier Corporation’s ignition control boards.
- 80V High-Efficiency Performance: Specifically calibrated for 80-volt systems, providing faster heat-up times and superior energy efficiency compared to legacy 120V igniters.
- Durable Ceramic Base: Features a reinforced ceramic mounting block that provides superior electrical insulation and resists the high-vibration environment of the burner box.
- Integrated Protective Shield: Often equipped with a protective metal or ceramic shroud to prevent physical damage to the fragile heating element during installation and maintenance.
- True Plug-and-Play Connection: Includes the factory-correct wiring harness and plastic plug housing for a secure, moisture-resistant connection without the need for wire cutting or splicing.
Product Details:
- Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
- Manufacturer: United Technologies / Carrier Corp
- Part Number: LH33ZS004
- Weight: 0.15 lbs
- Voltage: 80V
- Material: Silicon Carbide / Ceramic
- Lead Length: 5.5 Inches (Approximate)
- Connector Type: 2-Pin Plastic Plug
🛠️ HVAC Depot Pro Tip: Practical Installation Advice
"Do Not Touch the Element!" The heating element of the LH33ZS004 is extremely sensitive to oils from human skin. If you touch the black surface with your bare fingers, the oil will create a "hot spot" that causes the igniter to crack and fail prematurely. Always handle the part by the white ceramic base. Take a Picture of the original igniter's mounting position before removal; ensuring the new element is positioned exactly in the path of the gas flow is critical for a smooth, "no-boom" ignition.
Cross-Reference:
- Superseded Numbers: LH33ZS003, LH33ZS002
- Legacy Numbers: 1184341, 1013511
- Drawing Numbers: 334255-401, 1NT01L-4375
- Equivalent Brands: White-Rodgers / Emerson (Carrier Certified Series)
Model Compatibility:
58CTW/58CTY Series (Suffixes: 045, 070, 090, 110, 135)
310A/310J Series (Suffixes: 024045, 036070, 048090, 066110, 066135)
59SC2/59SC5 Series (Suffixes: 040S14, 060S14, 080S17, 100S21, 120S24)
912S/915S Series (Suffixes: 30040S, 42060S, 48080S, 60100S, 60120S)
PG9M Series (Suffixes: 045, 070, 090, 115)
