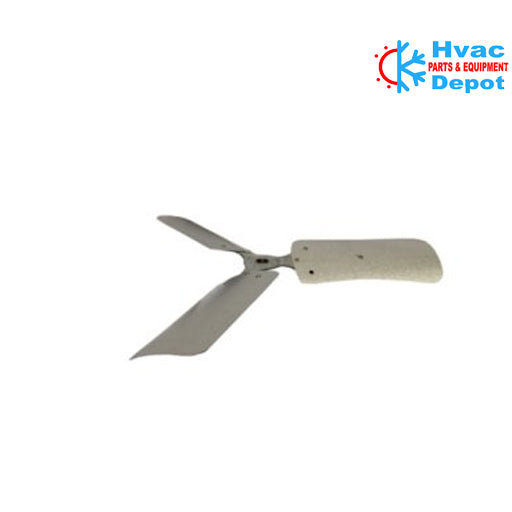

Carrier LA01EW029 Fan Blade | 30" Diameter | 3 Blade 20.5 Degree Pitch

Carrier LA01EW029 Fan Blade | 30" Diameter | 3 Blade 20.5 Degree Pitch

Low stock: 1 left

Regular price $230.00 USD
Regular price Sale price $230.00 USD
Sale Sold out
Shipping calculated at checkout.

Maximizing Outdoor Unit Performance

  • Industrial Reliability: Factory Authorized Parts are tested to withstand the high-heat cycles of 5-ton condenser systems.

  • Efficient Troubleshooting: Replacing a bent blade immediately resolves "shaking" units and prevents expensive compressor bracket damage.

  • Maximum CFM Output: The 20.5-degree pitch ensures your system hits its SEER rating by providing optimal airflow across the coils.

  • OEM Warranty Protection: Using genuine Carrier parts maintains the manufacturer's warranty on the fan motor and compressor.

  • Quiet Operation: Factory balancing eliminates the rhythmic thumping and metal fatigue common in aftermarket fan blades.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Details

  • Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
  • Manufacturer: Carrier Corporation
  • Part Number: LA01EW029
  • Diameter: 30 Inches
  • Bore Size: 1/2 Inch
  • Pitch: 20.5 Degrees
  • Rotation: Clockwise (CW)
  • Number of Blades: 3

description

Carrier LA01EW029 Condenser Fan Blade | 30" Diameter 1/2" Bore | 3-Blade 20.5° Pitch | OEM Carrier Bryant Payne

The LA01EW029 is a high-performance condenser fan blade designed as the primary airflow component for large-tonnage Carrier, Bryant, and Payne outdoor units. As a "Factory Authorized Part," this blade serves as the essential "engine" for heat dissipation, pulling air across the condenser coils to facilitate the refrigeration cycle. This specific blade is engineered for high-static pressure environments, supporting heavy-duty residential and light commercial condensing units. Using a genuine OEM blade ensures that the motor's amperage remains within factory limits, preventing the premature motor burnout often caused by the improper weight or pitch of universal alternatives.

Key Features

  • Exact Part Number Match: Fully certified as LA01EW029, ensuring the weight and balance profile matches the original factory specifications for your Carrier-family unit.
  • Optimized OEM Fit: Features a precise 1/2" bore that slides perfectly onto standard motor shafts, eliminating the vibration and wobbling associated with hub adapters.
  • Aero-Dynamic Pitch Calibration: The 20.5° pitch is specifically calculated to move the maximum volume of CFM (Cubic Feet per Minute) while minimizing mechanical strain and "relay-style" humming from the motor.
  • Noise Reduction Engineering: The specialized blade curvature is designed to reduce air turbulence, fixing specific whistling or vibration issues found in aged or warped fan blades.
  • Safety & Balance Monitoring: Each blade is factory-balanced to prevent shaft oscillation, protecting the motor bearings and ensuring the safety of the fan shroud assembly during high-RPM operation.

Product Details

  • Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
  • Manufacturer: Carrier Corporation
  • Part Number: LA01EW029
  • Part UPC:  00662442603647
  • Diameter: 30 Inches
  • Bore Size: 1/2 Inch
  • Pitch: 20.5 Degrees
  • Shipping Weight: 6LB
  • Rotation: Clockwise (CW)
  • Number of Blades: 3

🛠️ HVAC Depot Pro Tip

When replacing a fan blade of this size, take a picture first to note exactly how far down the motor shaft the original hub was seated. If the new blade is placed too high or too low in the venturi (the fan shroud), it can reduce cooling efficiency by up to 30%. Always inspect the motor shaft for rust; use a piece of emery cloth to sand the shaft smooth before sliding the new LA01EW029 into place to ensure a perfect, snug fit.

Model Compatibility

This fan blade is used across a wide range of 4-ton and 5-ton high-efficiency outdoor units:

Carrier / Bryant / Payne 38 Series

  • 38APD  (Suffixes: 048, 060)
  • 38APS   (Suffixes: 048, 060)
  • 48A2   (Suffixes: 048, 060)
  • 48A3   (Suffixes: 048, 060)
