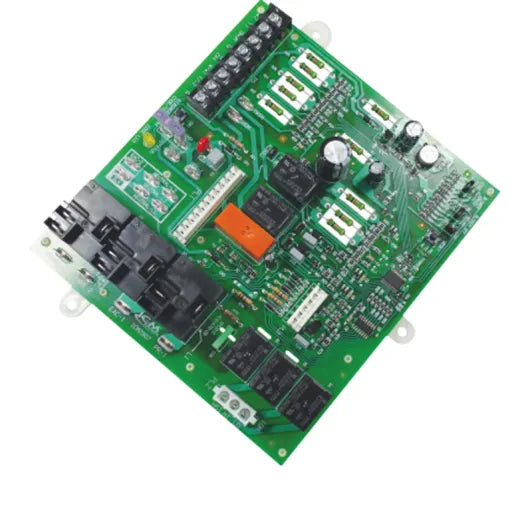

ICM2807 Carrier 2 Stage Furnace Control Boards ICM2807/HK42FZ017

Name: ICM2807 Carrier 2 Stage Furnace Control Boards ICM2807/HK42FZ017
Brand: HVAC Parts and Equipment Depot
Price: 401.55 USD
Availability: OutOfStock

Out of stock

$401.55 USD

Sale Sold out

Shipping calculated at checkout.

Carrier Two-Stage Tech Specs

Direct Carrier HK42FZ017 Replacement. Engineered as a form, fit, and functional match for the HK42FZ005, HK42FZ010, and HK42FZ015 series boards.
1 HP Blower Motor Support. Features high-capacity relays for robust performance in two-stage systems.
Reverse Polarity & Diagnostics. Includes onboard LED fault codes and reverse polarity protection to prevent damage from miswiring.
Twinning Compatible. Features a continuous blower speed jumper for customizable air circulation settings.
American Made Quality. Manufactured in the USA for reliable, long-lasting performance.

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

TECHNICAL SPECIFICATIONS:

Ambient Temperature Operating: -40°F to 176°F
Humidity: 5% to 95% R.H. (non-condensing) @ +55°F
Voltage Range: Line (98 to 132 VAC) @ 60 Hz
Ignitor: 5A @ 120 VAC
Cool Blower: 10 HP, 120 VAC
Low Heat: 5A, 1/2 HP, 120 VAC
High Heat: 10A, 1 HP, 120 VAC
Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
Gas Valve: 1.5A @ 30 VAC
EAC: 1A @ 120 VAC
Humidifier: 0.5A & 24 VAC
Weight: 1
Height: 1.5
Width: 6.5
Length: 7

description

A Reliable Two-Stage Solution for Carrier, Bryant, & Payne Furnaces

Is your high-efficiency furnace locked out, or are you experiencing issues with multi-stage heating? The ICM2807 is a microprocessor-based furnace control board designed as a direct, form, fit, and functional replacement for Carrier, Bryant, and Payne control modules, specifically the HK42FZ017 series. This board manages all furnace operations with precision, handling two-stage heating and cooling demands.

Why the ICM2807 is the Right Choice for Your Repair:

Two-Stage Heating & Cooling: Manages both low and high heat outputs (5A and 10A, respectively) and a powerful 10 HP cool blower motor, ensuring comfort and efficiency.
Advanced Safety & Protection: Features a 100% gas shutoff safety feature, plus reverse polarity and secondary brownout voltage protection to safeguard sensitive components.
Integrated Diagnostics: The onboard diagnostic LED provides clear fault codes, simplifying troubleshooting for issues like pressure switch trips or ignition failures.
Twinning Compatible: The board is designed to communicate with another ICM2807 for synchronized operation in dual-furnace systems.

Comprehensive Cross-Reference Guide

The ICM2807 is a direct functional replacement for the following part numbers Carrier / Bryant / Payne:

HK42FZ005
HK42FZ010
HK42FZ015
HK42FZ016
HK42FZ017

TECHNICAL SPECIFICATIONS:

Ambient Temperature Operating: -40°F to 176°F
Humidity: 5% to 95% R.H. (non-condensing) @ +55°F
Voltage Range: Line (98 to 132 VAC) @ 60 Hz
Ignitor: 5A @ 120 VAC
Cool Blower: 10 HP, 120 VAC
Low Heat: 5A, 1/2 HP, 120 VAC
High Heat: 10A, 1 HP, 120 VAC
Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
Gas Valve: 1.5A @ 30 VAC
EAC: 1A @ 120 VAC
Humidifier: 0.5A & 24 VAC
Weight: 1
Height: 1.5
Width: 6.5
Length: 7

Pro-Tip: Check for a Two-Stage Thermostat

The ICM2807 is designed for a two-stage system. If you are replacing the board, ensure you are using a two-stage thermostat (which has W1 and W2 terminals) to get the full efficiency and comfort benefits of your furnace. A single-stage thermostat will only run the furnace in high heat mode.
