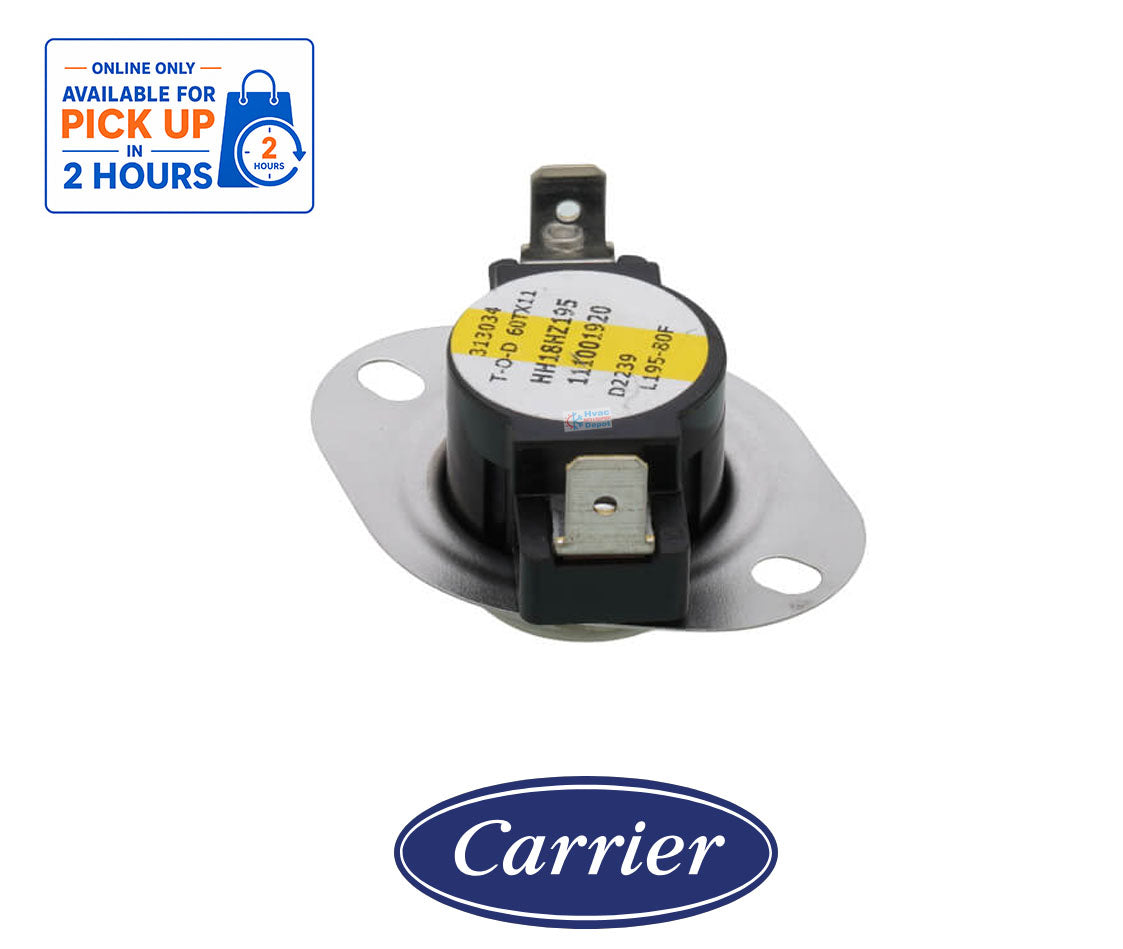

Carrier Factory Authorized Parts HH18HZ195 OEM Furnace High Limit Switch – 195°F Open / 115°F Close – Automatic Reset Temperature Safety Control
Carrier Factory Authorized Parts HH18HZ195 OEM Furnace High Limit Switch – 195°F Open / 115°F Close – Automatic Reset Temperature Safety Control
Low stock: 1 left
Carrier HH18HZ195 OEM Furnace High Limit Switch – 195°F Open / 115°F Close
Please visit our store for pick up.
safe & secure Checkout
Specifications
Specifications
description
description
The Carrier Factory Authorized Parts HH18HZ195 is an OEM furnace high-temperature limit switch designed for compatible Carrier, Bryant, and Payne heating equipment. Featuring a 195°F opening temperature and 115°F closing temperature, this temperature-sensitive safety control helps protect furnace components from excessive heat.
The HH18HZ195 High Limit Switch monitors temperature at its installed location. When the temperature reaches approximately 195°F, the switch opens its electrical contacts, signaling the furnace control system to interrupt the applicable heating operation. Once the temperature decreases to approximately 115°F, the switch automatically closes, allowing the control system to resume operation according to its programmed safety sequence.
Designed for compatible gas furnace applications, this factory replacement limit switch helps maintain the manufacturer's intended temperature protection and furnace safety operation.
Key Features & Function
- Brand: Carrier Factory Authorized Parts
- Manufacturer Part Number: HH18HZ195
- Product Type: Furnace High Limit Switch
- Opening Temperature: 195°F (90.6°C)
- Closing Temperature: 115°F (46.1°C)
- Reset Type: Automatic Reset
- Temperature differential of 80°F
- Opens the safety circuit when the specified temperature is reached
- Automatically resets after cooling to the specified closing temperature
- Designed for compatible Carrier, Bryant, and Payne furnaces
- OEM replacement temperature safety component
- Supports furnace overheating protection
Product Details & Specifications
|
Specification |
Details |
|
Manufacturer |
Carrier |
|
Brand |
Factory Authorized Parts |
|
Manufacturer Part Number |
HH18HZ195 |
|
Item Number |
HH18HZ195 |
|
Product Type |
High Temperature Limit Switch |
|
Component Category |
Furnace Safety Controls |
|
Opening Temperature |
195°F / 90.6°C |
|
Closing Temperature |
115°F / 46.1°C |
|
Temperature Differential |
80°F / 44.4°C |
|
Reset Function |
Automatic |
|
Normal Contact State |
Normally Closed (NC), subject to OEM verification |
|
Primary Function |
Furnace Overtemperature Protection |
|
Equipment Application |
Compatible Gas Furnaces |
|
Electrical Rating |
Verify manufacturer specifications |
|
Mounting Configuration |
Verify original component |
|
Terminal Configuration |
Verify original component |
|
Replacement Type |
OEM Factory Replacement |
|
Installation |
Qualified HVAC Technician Recommended |
HVAC Depot Pro Tip
A furnace high limit switch that repeatedly opens may indicate an overheating problem rather than a defective switch.
Before replacing the Carrier HH18HZ195, inspect the furnace for conditions that could restrict airflow or cause excessive temperature rise.
Common causes of high limit switch activation include:
- Dirty or clogged air filters
- Restricted return-air or supply-air ducts
- Dirty evaporator coils
- Malfunctioning blower motors
- Incorrect blower speed settings
- Blocked supply registers
- Excessive furnace temperature rise
- Improper furnace operation
HVAC Depot Pro Tip: Always match the original limit switch's opening and closing temperatures. Installing a switch with an incorrect temperature rating can compromise the furnace's safety protection.
Important: Never bypass or jumper a high limit switch to operate a furnace. A repeatedly tripping limit switch requires proper diagnosis to identify the underlying overheating condition.
Disconnect electrical power before servicing. Installation and testing should be performed by a qualified HVAC technician.
Equipment / Model Compatibility
The Carrier HH18HZ195 is intended for select Carrier, Bryant, and Payne gas furnaces requiring this specific temperature limit switch.
Exact compatible furnace model numbers have not been independently verified.
Before ordering, confirm:
- Complete furnace model number
- Furnace serial number
- Original limit switch part number
- 195°F opening temperature
- 115°F closing temperature
- Mounting configuration
- Electrical terminal arrangement
Compatibility Notice: HH18HZ195 is not a universal high limit switch. Matching temperature ratings alone does not guarantee compatibility with another furnace.
