Carrier Factory Authorized Parts HH12ZB220 OEM 3-Inch Furnace Limit Switch – High Temperature Safety Control Replacement
Carrier Factory Authorized Parts HH12ZB220 OEM 3-Inch Furnace Limit Switch – High Temperature Safety Control Replacement
In stock

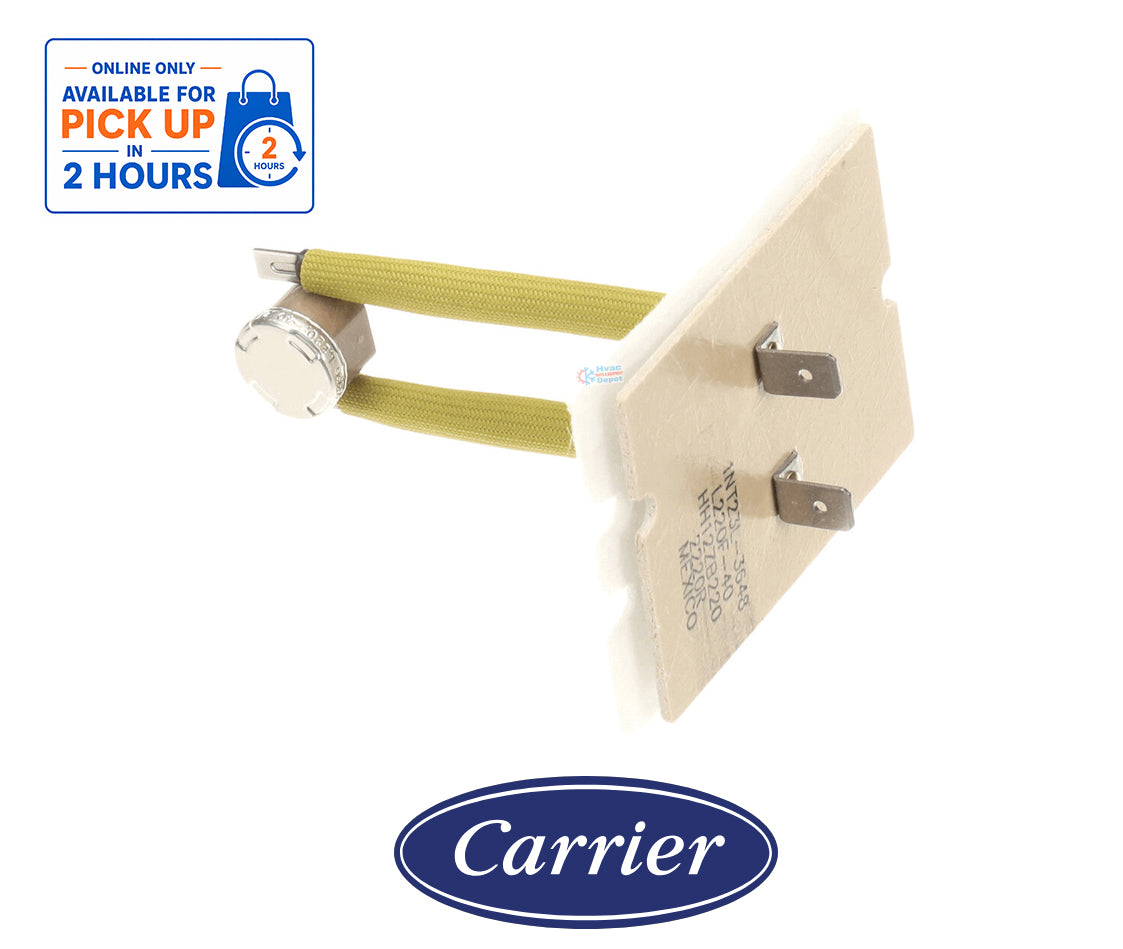

Carrier HH12ZB220 OEM 3-Inch Furnace Limit Switch
Please visit our store for pick up.
safe & secure Checkout
Specifications
Specifications
description
description
Carrier Factory Authorized Parts HH12ZB220 OEM 3-Inch Furnace Limit Switch – High Temperature Safety Control Replacement
The Carrier Factory Authorized Parts HH12ZB220 is an OEM 3-inch furnace limit switch designed for compatible Carrier, Bryant, and Payne heating equipment.
This temperature-sensitive safety component monitors furnace operating temperatures and helps protect the heating system from excessive heat. When the temperature reaches the switch's specified operating limit, the contacts change state, allowing the furnace safety control system to respond according to its designed operating sequence.
The HH12ZB220 3-Inch Limit Switch is an equipment-specific replacement part intended to restore proper temperature safety control when the original component is defective.
Manufactured for compatible HVAC heating applications, this factory replacement limit switch is suitable for professional furnace maintenance and repair.
Key Features & Function
- Brand: Carrier Factory Authorized Parts
- Manufacturer Part Number: HH12ZB220
- Product Type: Furnace High Temperature Limit Switch
- OEM Description: 3" Limit Switch
- Nominal Length: 3 inches
- Genuine OEM replacement component
- Temperature-sensitive furnace safety control
- Helps protect compatible heating equipment from overheating
- Designed for select Carrier, Bryant, and Payne furnaces
- Equipment-specific electrical and mounting configuration
- Intended for professional HVAC service and repair
Product Details & Specifications
|
Specification |
Details |
|
Manufacturer |
Carrier |
|
Brand |
Factory Authorized Parts |
|
Manufacturer Part Number |
HH12ZB220 |
|
Item Number |
HH12ZB220 |
|
OEM Description |
3" Limit Switch |
|
Product Type |
Furnace Temperature Limit Switch |
|
Nominal Length |
3 inches |
|
Component Category |
Furnace Safety Controls |
|
Primary Function |
High Temperature Protection |
|
Opening Temperature |
Verify OEM specifications |
|
Closing Temperature |
Verify OEM specifications |
|
Reset Type |
Verify OEM specifications |
|
Contact Configuration |
Verify OEM specifications |
|
Electrical Rating |
Verify OEM specifications |
|
Mounting Configuration |
Equipment-specific |
|
Equipment Application |
Compatible Heating Equipment |
|
Replacement Type |
OEM Factory Replacement |
|
Installation |
Qualified HVAC Technician Recommended |
Specification Note: The manufacturer's supplied description identifies this as a 3-inch limit switch. The exact temperature ratings and reset characteristics should be verified before publishing additional specifications.
HVAC Depot Pro Tip
A furnace limit switch that repeatedly opens may indicate an overheating condition rather than a defective switch.
Before replacing the Carrier HH12ZB220, inspect the furnace for restricted airflow, improper blower operation, or other conditions that could cause excessive temperatures.
Recommended diagnostic checks:
- Confirm the complete furnace model and serial number.
- Verify the original limit switch part number.
- Check the furnace air filter for restrictions.
- Inspect the blower motor and blower wheel.
- Check the evaporator coil and ductwork for airflow restrictions.
- Verify furnace temperature rise according to manufacturer specifications.
- Inspect wiring and electrical terminals.
- Confirm the replacement switch's temperature ratings and mounting configuration.
HVAC Depot Pro Tip: Never select a furnace limit switch based solely on its physical dimensions. The opening temperature, closing temperature, reset type, and mounting configuration must match the manufacturer's requirements.
Important: Never bypass or jumper a furnace limit switch. Overheating problems must be corrected before returning the equipment to service.
Installation and testing should be performed by a qualified HVAC technician.
Equipment / Model Compatibility
The Carrier HH12ZB220 is intended for select Carrier, Bryant, and Payne furnaces requiring this specific 3-inch limit switch.
Exact compatible furnace models have not been independently verified.
Before ordering, confirm the complete equipment model number, serial number, original limit switch identification, and manufacturer-approved replacement information.
Compatibility Notice: HH12ZB220 is not a universal furnace limit switch. Matching the 3-inch dimension alone does not guarantee compatibility.
