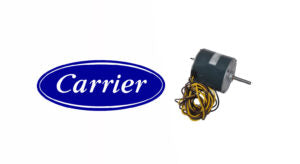

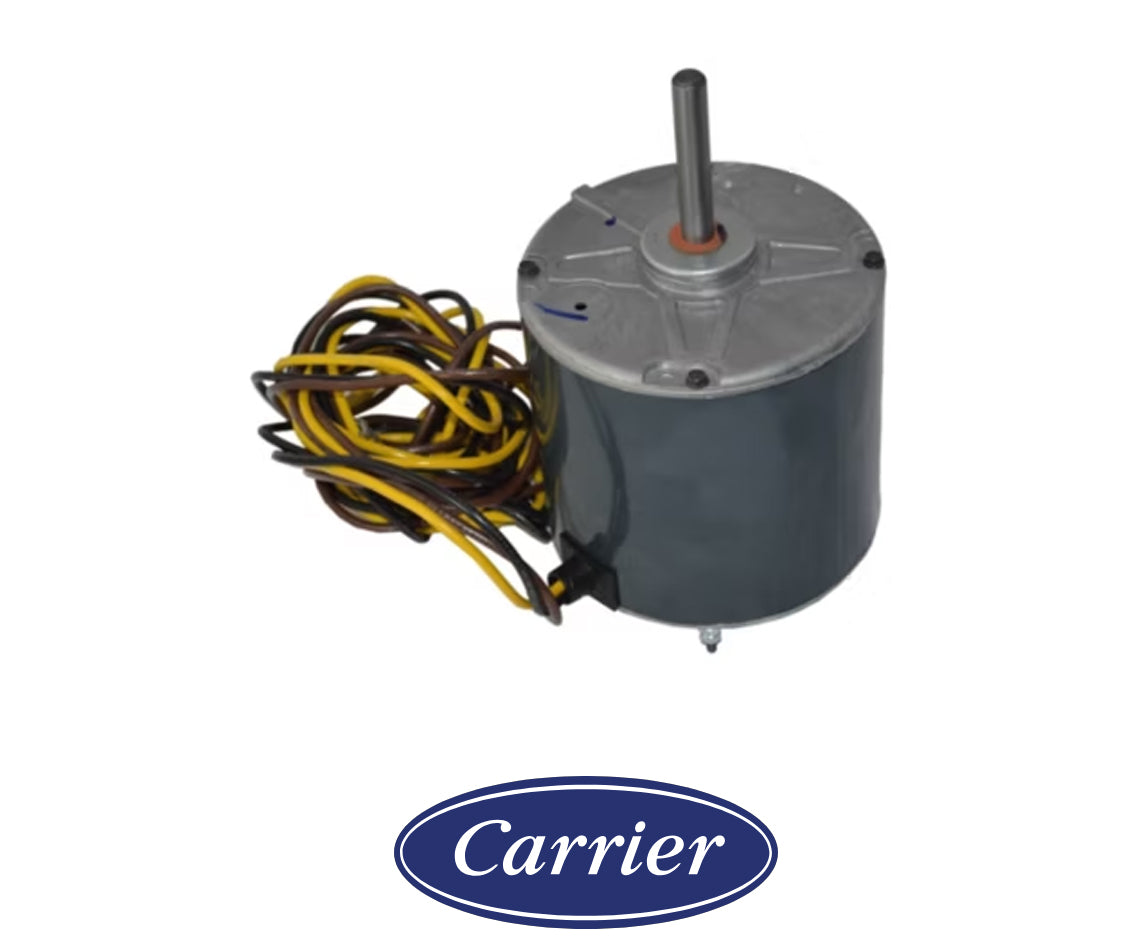

Carrier Factory Authorized Parts HC44GE208 Condenser Fan Motor 1/2 HP 208/230V 1050 RPM

The Carrier Factory Authorized Parts HC44GE208 is a heavy-duty, high-efficiency condenser fan motor designed to serve as the critical "brain" for the heat rejection cycle of your outdoor unit. Engineered specifically for Carrier, Bryant, and Payne furnace and A/C series, this motor drives the fan blades that pull air across the condenser coils, ensuring the refrigerant is cooled effectively to maintain indoor climate control. This 1/2 HP powerhouse is built to withstand extreme outdoor environments, utilizing a weather-protected design to prevent premature failure. By maintaining precise 1050 RPM speeds, it ensures your system operates within its engineered thermal limits, preventing compressor overheating and extending the life of your entire HVAC system.

Key Features

• Factory Authorized Part HC44GE208: This is a genuine OEM replacement, ensuring exact electrical specifications and physical dimensions for a "drop-in" installation without bracket modifications.
• 1050 RPM Precision Calibration: Specifically tuned to match the airflow requirements of Carrier-built outdoor units, maintaining the factory-intended static pressure and cooling efficiency.
• Solves Vibrational & Bearing Noise: Replaces aging or seized motors prone to grinding noises and excessive vibration, restoring the quiet, smooth operation of your outdoor condenser.
• Advanced Thermal Overload Protection: Features an internal safety monitoring system that automatically resets, protecting the motor windings from burnout during high-ambient temperature spikes.
• Reversible Rotation Capability: While factory-set for specific Carrier leads, this motor is designed for versatile integration, ensuring the "OEM fit" for a wide variety of 48-frame housing configurations.

Product Details

• Brand: Carrier / Bryant / Payne
• Manufacturer: Factory Authorized Parts
• Part #: HC44GE208
• UPC/SKU: 00662441417986
• Weight: 16.4 lbs
• Horsepower: 1/2 HP
• Voltage: 208-230 VAC
• RPM: 1050
• Full Load Amps: 3.00A
• Frame Size: 48
• Capacitor Required: 10 MFD / 370V (Sold Separately)
• Enclosure: Totally Enclosed Air Over (TEAO)

🛠️ HVAC Depot Pro Tip

"Take a Picture First"—before cutting any wires or removing the old motor from the fan shroud, photograph the lead colors and their terminal locations on the contactor and capacitor. This motor requires a 10 MFD / 370V capacitor; we strongly recommend replacing the capacitor at the same time as the motor to ensure the "Diagnostic Check" passes. After installation, spin the fan blade by hand to ensure it is centered in the orifice and does not hit the shroud before restoring power.

Cross-Reference

• Superseded / Legacy Numbers:

   HC44GE204, HC44GE204A, HC44GE206, HC44GE207, P251-8105

• Affiliated / Related Numbers:

   5KCP39PGV615S, 5KCP39PGN651, 5KCP39PGV615

• Drawing / Replacement Identifiers:

   48-Frame Condenser Motor, P251-1105

• Genteq / Emerson Equivalents:

   3105, 3905

Model Compatibility

• Carrier 38 (Suffixes: TZA, TZB, BRZ, BYX, HDZ)
• Bryant 1 (Suffixes: 23A, 23B, 26R, 86B, 87B)
• Payne PA (Suffixes: 13NA, 14NA, 16NA, 17NH)
• Carrier 24 (Suffixes: ABA, ABB, ABC, ACC, ANB, APA)
• Bryant 5 (Suffixes: 61B, 62B, 65B, 67B)
• Comfort / Weather Maker Series (Suffixes: 38CKC, 38BRC, 38YCC)
