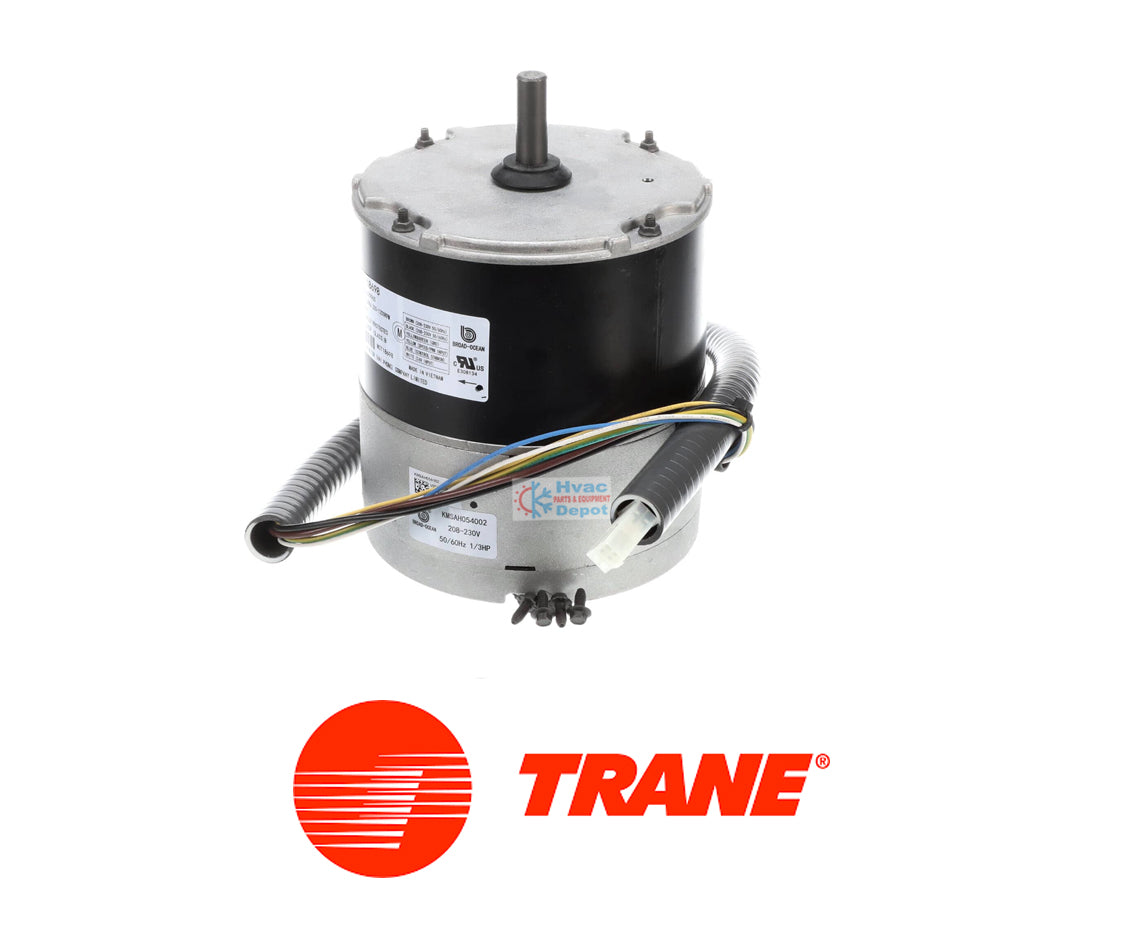

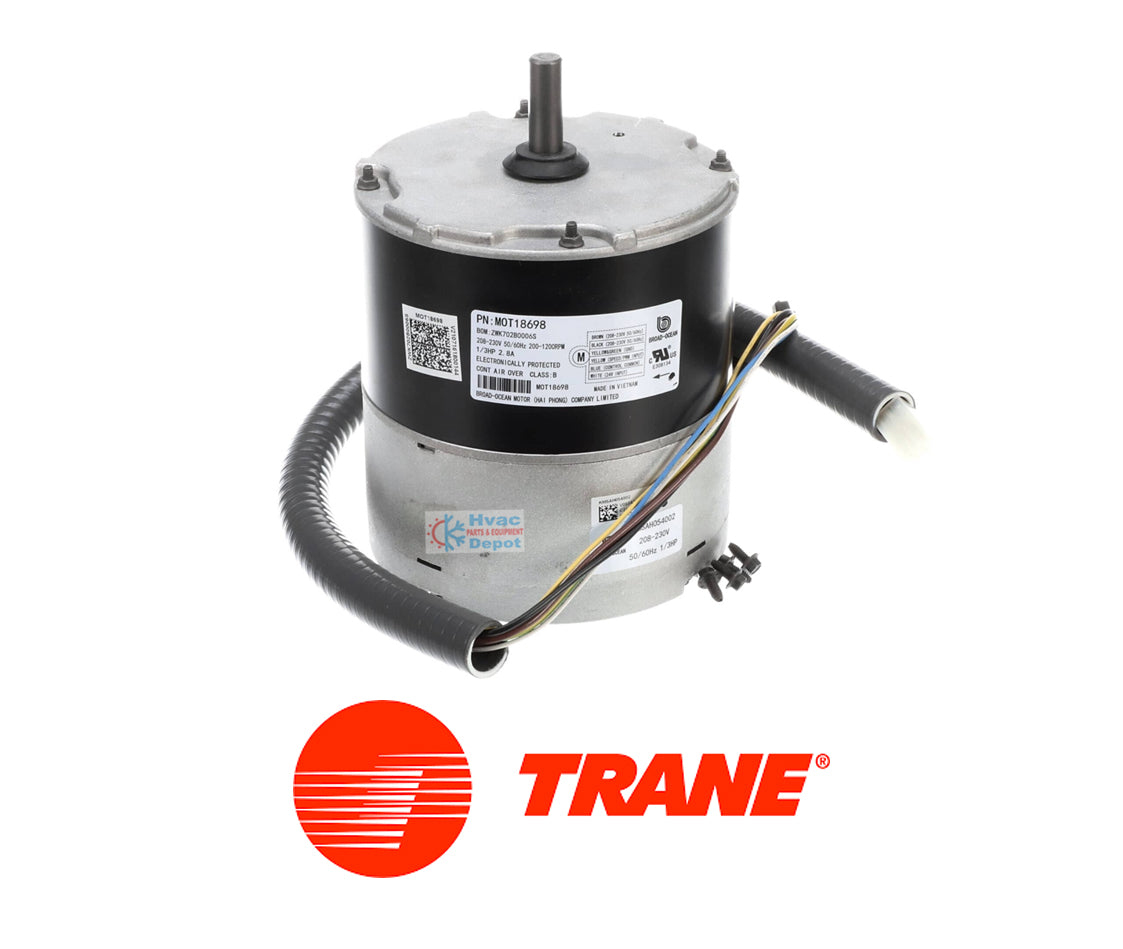

Trane MOT18698 ECM Condenser Fan Motor | 1/3 HP 208-230V Variable Speed

Trane MOT18698 ECM Condenser Fan Motor | 1/3 HP 208-230V Variable Speed

Low stock: 1 left

Regular price $675.74 USD
Regular price Sale price $675.74 USD
Sale Sold out
Shipping calculated at checkout.

Quick Feature Highlights

  • Direct OEM Replacement: Guaranteed electrical and mechanical match for Trane P/Ns MOT13793 and MOT13402.

  • Variable Speed Control: Adjusts from 200–1200 RPM for precise temperature and humidity management.

  • No Capacitor Needed: Advanced brushless DC motor technology simplifies installation and increases reliability.

  • Energy Star Rated: ECM design significantly reduces electricity consumption compared to older PSC motors.

  • Integrated Protection: Built-in module handles advanced diagnostics and safeguards the motor from electrical spikes.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Specification Detail

  • Brand: Trane (OEM)
  • Horsepower (HP): 1/3 HP
  • Voltage: 208–230 VAC
  • Amperage (FLA): 2.8 Amps
  • Speed Type: Variable (200–1200 RPM range)
  • Frame Size: NEMA 48 Frame
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Shaft Dimensions: 0.5" Diameter x 2.5" Long
  • Enclosure Type: Totally Enclosed Air-Over (TEAO)
  • Motor Type: ECM (Electronically Commutated Motor)
  • Capacitor Required: NONE (Not required for ECM)

description

Trane MOT18698 (OEM) ECM Condenser Fan Motor 1/3 HP 208-230V Variable Speed

The Trane MOT18698 is a genuine OEM variable-speed ECM (Electronically Commutated Motor) and module assembly produced for high-efficiency Trane outdoor air conditioning and heat pump systems. This motor is primarily used as a condenser fan motor, varying its speed (typically between 200 and 1,200 RPM) to precisely match real-time cooling demands. This technology significantly reduces energy consumption and ensures quieter operation compared to standard fixed-speed motors.

Key Features

  • Variable Speed Control: ECM technology allows the system to precisely vary motor speed to match cooling demands, reducing energy costs.
  • Integrated Control Module: Includes the pre-programmed module for seamless communication with your Trane system controller.
  • Energy Efficient Design: Operates at lower speeds when full capacity isn't needed, enhancing overall system longevity and efficiency.
  • Durable & Quiet: Built with robust components and designed for quieter operation in high-end residential HVAC systems.

Product Specification Detail

  • Brand: Trane (OEM)
  • Horsepower (HP): 1/3 HP
  • Voltage: 208–230 VAC
  • Amperage (FLA): 2.8 Amps
  • Speed Type: Variable (200–1200 RPM range)
  • Frame Size: NEMA 48 Frame
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Shaft Dimensions: 0.5" Diameter x 2.5" Long
  • Enclosure Type: Totally Enclosed Air-Over (TEAO)
  • Motor Type: ECM (Electronically Commutated Motor)
  • Capacitor Required: NONE (Not required for ECM)

🛠️ HVAC Depot Pro Tip

This ECM motor does not use a run capacitor. The integrated module handles motor starting and running functions. Installation Note: Some legacy units may require a compatible replacement fan blade when upgrading to this motor due to clearance issues or balance requirements. Verify the fan blade part number in your unit's manual before finalizing installation.

Cross-Reference

  • Directly Replaces P/Ns

    : MOT13793, MOT13402, MOT12005, MOT14018, MOT14342
  • Manufacturing IDs:

    5SME39HLHE026, D155479P01, D159882P01, ZWK702B0006S, KMSAH054002

Model Compatibility

This motor is found in numerous high-efficiency Trane outdoor condensing units. Press Ctrl+F to search for your model number:

  • Trane 4TWR Series (XL15i / XL16i Heat Pump): 4TWR4042N1000AA, 4TWR4048N1000AA, 4TWR4060N1000AA, 4TWR5042N1000AA, 4TWR6042H1000AC.
  • Trane 4TTX / 4TWX Series (XV18 / XR16 AC Units): 4TTX6061J1000CA, 4TWX5042N1000AA.
  • M4HP / M4AC Series (Ameristar Packaged Units): M4HP6036A1000AA, M4HP6048A1000AA.
  • [And many other 4A6H, 4A7A, and 4A7Z series Trane units].
