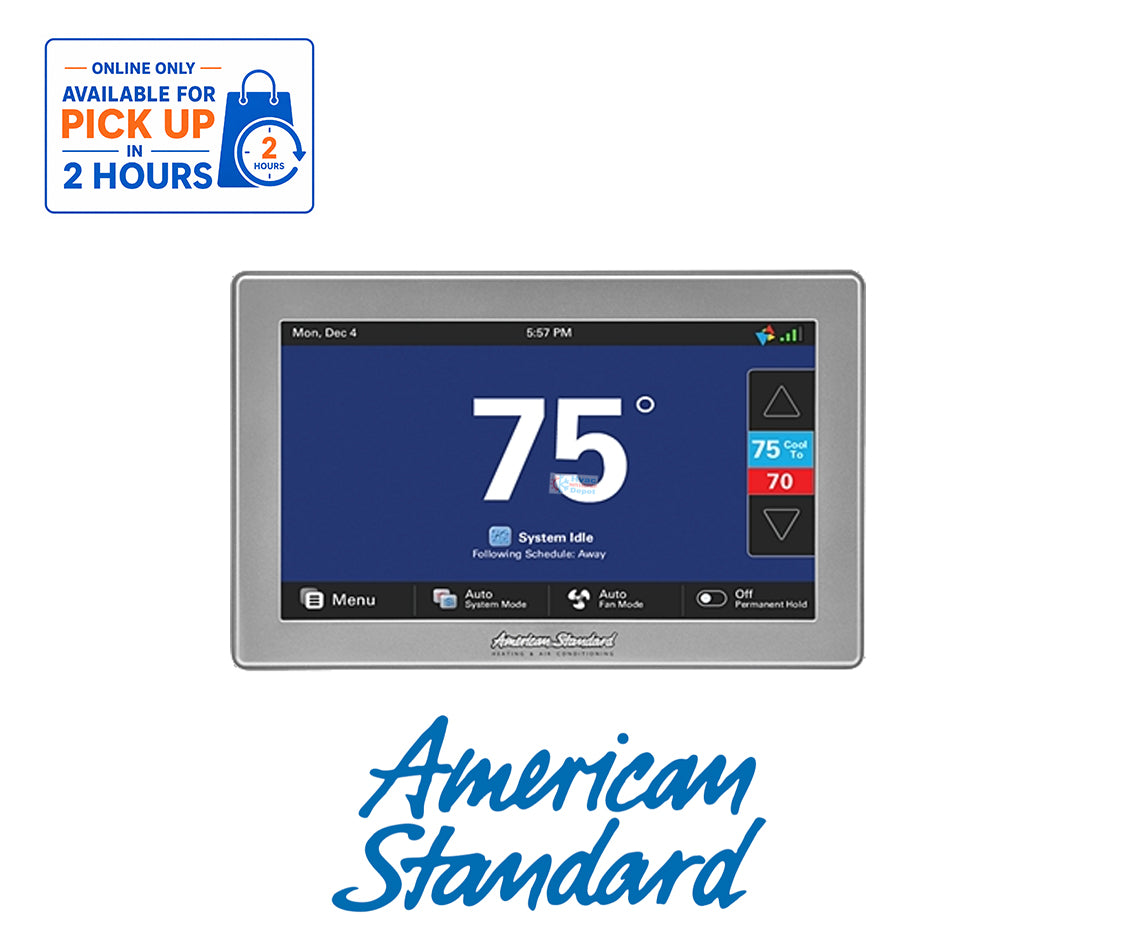

The American Standard AccuLink AZON1050AC52ZC Platinum 1050 Smart Thermostat is an advanced HVAC comfort control designed for compatible American Standard heating and cooling systems.

Featuring smart connectivity, multistage temperature management, and integrated humidity control capabilities, the AZON1050AC52ZC provides homeowners with convenient control over their indoor comfort.

The thermostat supports up to 5 heating stages and 2 cooling stages in approved system configurations. It is designed to manage compatible heating, cooling, and humidity-control functions while providing programmable temperature scheduling and connected comfort features.

With Wi-Fi connectivity and Z-Wave smart-home technology, the Platinum 1050 offers remote access and integration with supported connected-home devices.

The thermostat also provides dehumidification control when paired with compatible HVAC equipment, helping manage indoor moisture levels and improve overall comfort.

Designed for approved American Standard HVAC applications, the AZON1050AC52ZC offers a premium thermostat replacement or upgrade for compatible comfort systems.

Key Features & Function

• Brand: American Standard

• Manufacturer Part Number: AZON1050AC52ZC

• Product Series: AccuLink Platinum 1050

• OEM smart HVAC thermostat

• Heating Stages: Up to 5

• Cooling Stages: Up to 2

• Wi-Fi-enabled remote connectivity

• Built-in Z-Wave smart-home integration

• Dehumidification control for compatible equipment

• Programmable heating and cooling schedules

• Touchscreen temperature control

• Indoor temperature and humidity management

• Compatible with approved communicating HVAC systems

• Supports advanced HVAC comfort management

• Designed for professional installation and system configuration

Product Details & Specifications

Specification Note: The supplied specifications list a temperature range of -40°F to 175°F. This should not be interpreted as the homeowner-adjustable thermostat setpoint range without confirmation. It may represent an environmental or sensor specification.

Also, 908.42 MHz is associated with Z-Wave communication, not the Wi-Fi operating frequency. Wi-Fi and Z-Wave are separate wireless technologies.

HVAC Depot Pro Tip

The American Standard AZON1050AC52ZC is designed for advanced HVAC comfort control, but thermostat compatibility depends on the equipment's communication protocol and control configuration.

Before replacing an existing thermostat, verify whether the HVAC system uses proprietary communicating controls or conventional 24-volt thermostat wiring.

Recommended installation checks:

1. Confirm the complete HVAC equipment model and serial number.

2. Verify the original thermostat part number.

3. Identify the system's communicating or conventional control configuration.

4. Confirm the required heating and cooling stages.

5. Inspect thermostat wiring and available terminals.

6. Verify humidity-control compatibility.

7. Configure Wi-Fi connectivity.

8. Set up supported Z-Wave devices if required.

9. Program heating and cooling schedules.

10. Test all operating modes after installation.

HVAC Depot Pro Tip: A thermostat with 5H/2C capability is not automatically compatible with every five-stage heating system. The equipment's communication protocol and supported control interface must also match.

Important: Do not connect a communicating thermostat to conventional thermostat terminals without manufacturer-approved interface equipment. Incorrect wiring can damage the thermostat or HVAC control board.

Equipment / Model Compatibility

The American Standard AZON1050AC52ZC is intended for compatible American Standard HVAC systems requiring this specific smart thermostat or a manufacturer-approved replacement.

Exact compatible equipment model numbers have not been independently verified.

Compatibility Notice: The AZON1050AC52ZC is not a universal smart thermostat. Confirm manufacturer-approved compatibility, wiring requirements, and system communication protocol before purchasing.
