Trane/American Standard MOT09263 OEM 1 HP V.S. ECM Furnace Blower Motor & Module Set
Trane/American Standard MOT09263 OEM 1 HP V.S. ECM Furnace Blower Motor & Module Set
Low stock: 5 left

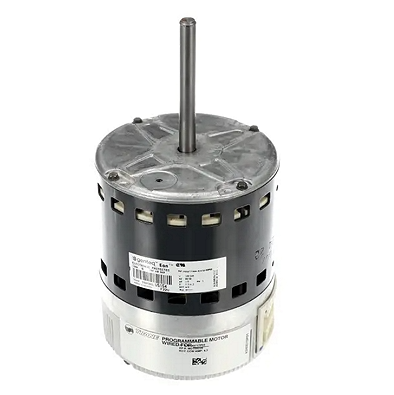

Trane MOT09263 OEM 1 HP Variable Speed ECM Furnace Blower Motor & Module Set
Please visit our store for pick up.
safe & secure Checkout
Specifications
Specifications
description
description
Trane MOT09263 – Genuine OEM Programmed 1.0 HP Variable Speed ECM Motor & Module
Trane MOT09263 is a high-efficiency, Electronically Commutated Motor (ECM) and module assembly set. Unlike standard blower motors that operate only at full capacity (on/off), this variable-speed motor continuously adjusts its rotational speed to meet real-time heating or cooling demands, optimizing home comfort and energy use.
MOT09262 Functional Overview:
- Variable Speed Performance: The motor can increase or decrease its ventilation output to match precise requirements, avoiding the loud, sudden blasts of air common with single-speed motors.
- Comfort & Air Quality: By running at lower speeds for longer periods, it maintains stable temperatures across all rooms and allows home air filters to capture more contaminants through constant circulation.
- System Longevity: Features a "soft start" that ramps up speed over approximately 45 seconds, reducing mechanical stress on the blower, mounting hardware, and heat exchanger.
Key Motor and Data Specifications:
- Performance: 1 HP.
- Electrical: Dual-voltage compatible (120V / 208-240V), single-phase, 50/60 Hz.
- Amperage: 11A load current; locked rotor current is 12.8A (120V) or 9.1A (240V).
- Speed: Variable, with a typical operating RPM of 1,050.
- Physical: 5 5/8" diameter (Frame 48), with a 4" long, 1/2" diameter shaft.
- Enclosure: Totally Enclosed Air-Over (TEAO).
- Direct Replacement Compatibility: Pre-programmed for "plug and play" installation.
This motor and module set is a programmed, "plug and play" replacement for several older or alternative numbers:
This motor replaces several older or alternative manufacturer identifiers:
- MOT11976: Primary predecessor.
- MOT9263: Common shorthand for the same part number.
- MOD00850: This motor is superseded by MOT09263
- MOT88993: This motor is superseded by MOT09263
- D341314P35: Often found on the motor's physical label.
- 5SME39SL0253 / 5SEA39RLV5133: Specific Genteq/GE motor model cross-references.
The MOT09263 is primarily found in Trane and American Standard high-efficiency variable-speed furnaces, including:
- American Standard AUD2D Series: AUD2D120A9V5VBA, AUD2D120A9V5VBB, AUD2D120G9V5VAA
- American Standard AUD120 Series: AUD120R9V5K3, AUD120R9V5K1, AUD120R9V5K5
- Trane TUD2D Series: TUD2D120A9V5VBA, TUD2D120A9V5VBB, TUD2D120G9V5VAA
- Trane TUD120 Series: TUD120R9V5K1, TUD120R9V5K2, TUD120R9V5K0
