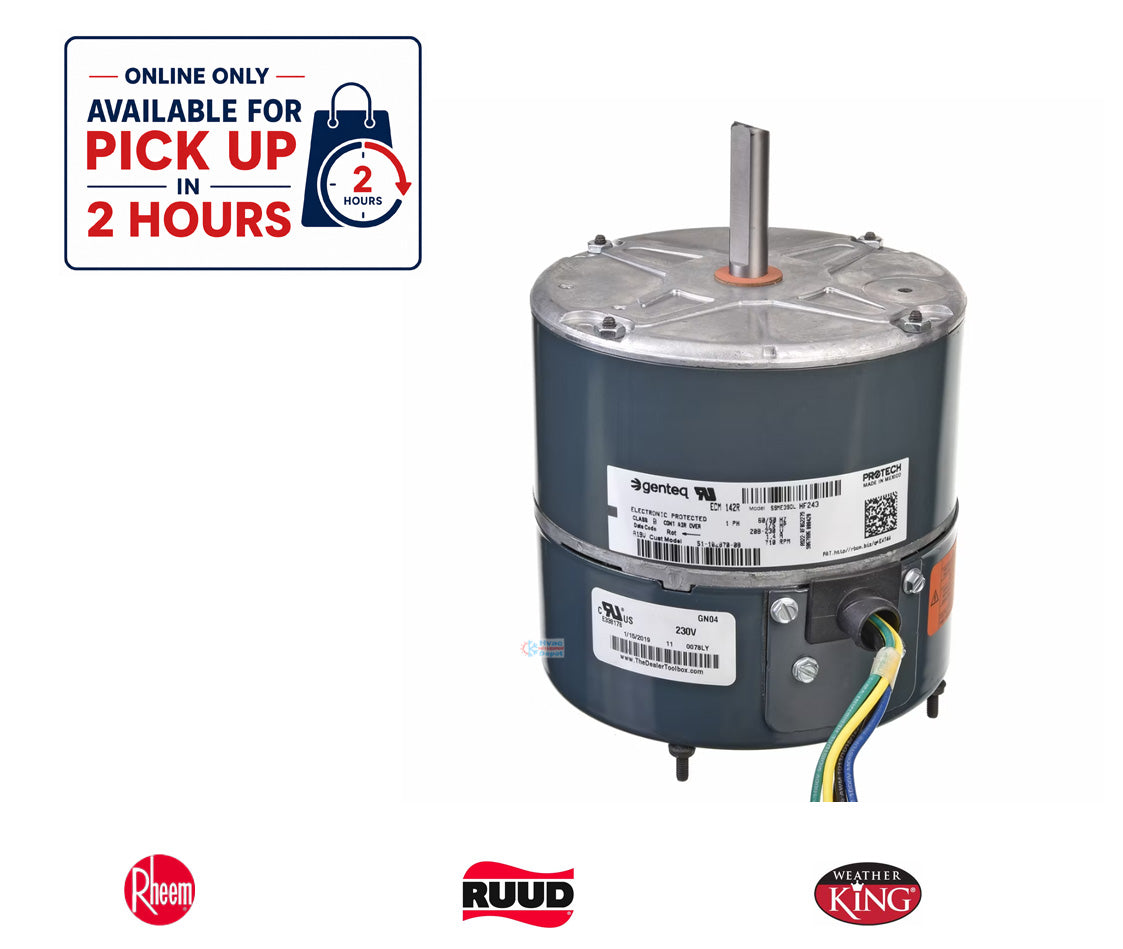

Rheem PROTECH™ 51-102870-08 – Genuine OEM Outdoor Variable Speed ECM Condenser Fan Motor (1/3 HP, 208-230V)

Name: Rheem PROTECH™ 51-102870-08 – Genuine OEM Outdoor Variable Speed ECM Condenser Fan Motor (1/3 HP, 208-230V)
Brand: Rheem
SKU: 0662766620153
Price: 650.00 USD
Availability: InStock

Low stock: 1 left

$650.00 USD

Sale Sold out

Shipping calculated at checkout.

Key Features & Specifications

Genuine PROTECH™ (Rheem/Ruud) OEM Outdoor ECM Condenser Motor.
1/3 HP variable-speed design for maximum energy efficiency and SEER2 ratings.
Specifically engineered for outdoor use with enhanced moisture and heat resistance.
Pre-programmed for plug-and-play installation—no external programming required.
Direct-fit replacement for 51-102870-08 and 51-101870-08 models.

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Details and Key Specifications:

Part Number: 51-102870-08

Manufacturer: PROTECH™ (Rheem / Ruud Genuine OEM)

Part Type: Outdoor ECM Condenser Fan Motor

Voltage: 208-230V

HP / RPM: 1/3 HP | Variable Speed (Up to 1075 RPM)

Phase / Hertz: Single-phase (1PH) / 50/60 Hz

Rotation: CWLE (Clockwise Lead End)

Shipping Weight: 11.8 lbs

description

The PROTECH™ 51-102870-08 is a Genuine OEM high-efficiency outdoor ECM (Electronically Commutated Motor) engineered specifically for Rheem and Ruud condensing units. As a vital component of the outdoor heat transfer process, this motor regulates fan speed to maintain optimal head pressure, ensuring the system operates at peak efficiency even during extreme outdoor ambient temperatures.

Technical Performance: Operating at 208-230V, this 1/3 HP motor features advanced variable-speed logic that allows it to ramp up or down based on the system's cooling demand. Unlike standard single-speed motors, the 51-102870-08 is designed for whisper-quiet operation and superior moisture resistance, which is critical for outdoor longevity. Being a "Genuine OEM" part means it contains the specific factory-programmed torque profiles required to protect the compressor and maintain the unit's original SEER2 rating.

Key Features and Function:

Precision Airflow Management: Automatically adjusts RPM to match the thermal load, reducing energy consumption and mechanical wear.
Weather-Resistant Build: Specifically sealed for outdoor condenser environments to prevent water ingress and corrosion in the motor housing.
Genuine OEM Reliability: Pre-programmed for direct communication with Rheem/Ruud control boards, eliminating the programming hurdles found in universal motors.
Quiet Operation: Variable speed "soft-start" technology eliminates the loud clunking noise typically heard at startup, enhancing backyard comfort.

Product Details and Key Specifications:

Part Number: 51-102870-08
Manufacturer: PROTECH™ (Rheem / Ruud Genuine OEM)
Part Type: Outdoor ECM Condenser Fan Motor
Voltage: 208-230V
HP / RPM: 1/3 HP | Variable Speed (Up to 1075 RPM)
Phase / Hertz: Single-phase (1PH) / 50/60 Hz
Rotation: CWLE (Clockwise Lead End)
Shipping Weight: 11.8 lbs

🛠️ HVAC Depot Pro Tip: The "Drip Loop" Essential When installing this motor, always ensure there is a "drip loop" in the wiring harness before it enters the motor housing. This prevents rainwater from running down the wires and bypassing the seals. Additionally, verify that the fan blade is positioned at the correct depth within the shroud to ensure maximum heat rejection and to prevent the motor from over-amping.

Cross-Reference & Compatibility: The 51-102870-08 is a direct OEM replacement for the following part numbers:

OEM Numbers: 51-102870-08, 51-101870-08, 51-102500-08
Legacy Ref: 5SME39SXL062, 5SME39SL0001

Extensive Model Compatibility List:

Rheem Prestige Series: RA17, RA20, RP17, RP20
Ruud Ultra Series: UA17, UA20, UP17, UP20
Specific Units: RA1748AJ2CB, RP1760AJ2VC, RA2024AJ2VC, RP2036AJ2VC
