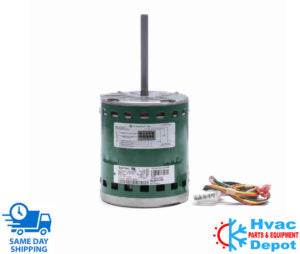

Genteq 6207X Evergreen EM Blower Motor | 3/4 HP | X13 ECM Replacement

Name: Genteq 6207X Evergreen EM Blower Motor | 3/4 HP | X13 ECM Replacement
Brand: Genteq ECM
SKU: 6207X
Price: 425.00 USD
Availability: InStock

$425.00 USD

Sale Sold out

Shipping calculated at checkout.

3/4 HP ECM Blower Motor

Constant Torque Technology: Automatically adjusts speed to overcome dirty filters or restrictive ductwork, maintaining home comfort.
Simplified Inventory: Replaces hundreds of OEM-programmed X13 motors with one universal, high-capacity 3/4 HP unit.
Ultra-Quiet Startup: Features soft-start technology that eliminates the "thump" of older PSC motors during the ignition cycle.
Heavy-Duty Build: Ball bearing construction and TEAO enclosure ensure a long lifespan in high-heat furnace environments.
No Programming Tool Needed: The internal microprocessor is pre-loaded to recognize standard furnace signals instantly.

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Genteq: 6207E
Voltage: 208-230 VAC
Voltage: Dual Voltage: 115/208-230 VAC
Phase: 1(SINGLE PHASE)
Frequency: 50/60 Hz
Enclosure: Open Air Over
Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C
Horsepower: 3/4 HP
Speeds: 5 discrete speeds
Speeds: 5 discrete speeds (PWM compatible)
RPM: 1075-1200 RPM nameplate (600-1200 RPM operating range)
Amperage at 230V: 6.0 FLA
Amperage at 115V: 8.4 FLA
Bearings: Ball bearing
Protection: Electronic overload protection, 4kV surge protection
Shaft: 1/2" diameter x 4-3/4" (or 4-15/16") length, flat
Frame: 48 (5.6-inch diameter)
Mount Type: Belly Band
Plug Connections: Exact as X13 OEM
Torque: Constant Torque

description

Genteq 6207X Evergreen EM Blower Motor | 3/4 HP | 115/230V Dual Voltage | X13 ECM Replacement

The Genteq 6207X Evergreen EM is a high-efficiency 3/4 HP ECM motor that functions as the primary "brain" and drive system for high-static air handlers and furnaces. Engineered as a universal, "drop-in" replacement for OEM X13 constant torque motors, the 6207X eliminates the need for expensive, manufacturer-specific programming. It is the core component for high-tonnage Carrier, Rheem, and Goodman furnace series, providing a massive efficiency boost over older PSC motors by automatically adjusting torque to maintain consistent airflow (CFM) even as duct pressure changes.

Key Features

Universal X13 OEM Fit: Directly replaces part number 6207X and legacy 6207E models, featuring the exact 5-pin power and 4-pin signal inputs used by factory X13/FM18 modules.
Auto-Rotation Sensing: Features internal "brain" technology that automatically sets the motor to Clockwise (CW) or Counter-Clockwise (CCW) rotation upon the first power-up.
High-Torque 3/4 HP Power: Specifically designed for 3.5 to 5-ton systems, providing the necessary strength to move air through large evaporator coils and complex ductwork.
Integrated Safety & Surge Protection: Built-in 4kV surge protection and electronic overload monitoring fix the "blown module" issues common in older X13 generations.
Plug-and-Play Dual Voltage: Automatically senses and operates on either 115V or 208-230V, allowing one motor to service almost any residential high-capacity air handler.

Product Details

Brand: Genteq (Evergreen EM)
Manufacturer: Regal Rexnord
Part Number: 6207X
UPC/SKU: 815585025429
Weight: 15.8 lbs
Horsepower: 3/4 HP
Voltage: 115 / 208-230 VAC (Dual Voltage)
Amperage: 8.4A (115V) / 6.0A (230V)
RPM: 1075-1200 RPM (Operating range 600-1200)
Speeds: 5 Discrete Speed Taps (PWM Compatible)
Frame: 48 (5.6-inch diameter)
Shaft Size: 1/2" Diameter x 4-3/4" Length (Flat)
Bearings: Permanently Lubricated Ball Bearings

🛠️ HVAC Depot Pro Tip

Take a Picture First: Before removing your original FM18 or X13 motor, photograph the speed tap harness (terminals 1-5). While the 6207X is a universal fit, your furnace control board relies on specific taps for "Fan," "Heating," and "Cooling" speeds. Diagnostic Check: If the motor does not start immediately, check for 24V signal at the 4-pin plug; the 6207X requires a constant 24V "Go" signal from the thermostat or board to initiate the rotation-sensing sequence.

Cross-Reference

Genteq Manufacturing Numbers:
5SME39NXL126, 5SME39NXL658, 5SME39NXL082C, 5SME39NXL014A, 5SME39NXL043A.
Carrier/Bryant/Payne:
HD46AE224, HD46AE236, HD46AQ267.
Rheem/Ruud:
51-101920-07, 51-102497-01.
Goodman/Amana:
0231K00043, FM18.
ICP:
1177596, 1177999.

Model Compatibility

Rheem/Ruud Series:
(Suffixes: RGFE, RGGE, RGLN, RHLN, RHLL).
Carrier/Bryant Series:
(Suffixes: 58MVB, 58UVB, 355MAV, 355CAV).
Goodman/Amana Series:
(Suffixes: GMH95, AMH95, GME95).
Lennox Series:
(Suffixes: G61MPV, SL280, EL296E).
York Series:
(Suffixes: TM9V, TM8V, YP9C).
