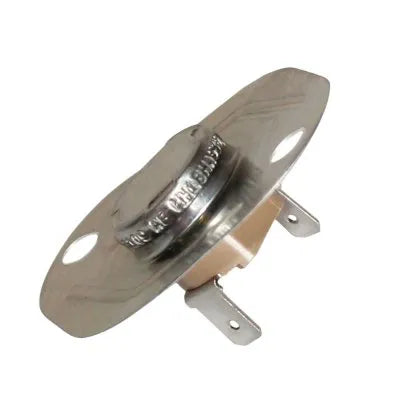

Factory Authorized Parts HH18HA586 Furnace High Limit Safety Switch 180°F Auto Reset

Factory Authorized Parts HH18HA586 Furnace High Limit Safety Switch 180°F Auto Reset

Low stock: 1 left

Regular price $35.00 USD
Regular price Sale price $35.00 USD
Sale Sold out
Shipping calculated at checkout.

Factory Authorized Parts™ - HH18HA586 Limit Switch

  • Restore System Performance: Replaces faulty switches that cause the furnace to shut down or "short cycle" during the heating process.

  • OEM Safety Standard: Certified Factory Authorized Part ensures the exact thermal setpoints required for Carrier family equipment.

  • Automatic Reset Convenience: Safely restarts the heating cycle once temperatures normalize, preventing unnecessary service calls.

  • Heat Exchanger Protection: Prevents expensive damage by ensuring the furnace never operates at temperatures exceeding 180°F.

  • Durable Construction: High-quality bi-metal sensing element designed for thousands of operational cycles without drifting.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Details

  • Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
  • Manufacturer: United Technologies / Carrier Corp
  • Part Number: HH18HA586
  • Weight: 0.10 lbs
  • Voltage: 24V (Control Circuit)
  • Amps/Watts: 0.5A @ 24VAC (Pilot Duty)
  • Ignition Type: Compatible with HSI and Spark Ignition systems
  • Open Temperature: 180°F
  • Reset Type: Automatic Reset

description

Factory Authorized Parts™ HH18HA586 Furnace High Limit Safety Switch 180°F Auto Reset

The Intelligent Thermal Guard

The HH18HA586 is a high-performance primary limit switch (LS1) engineered to serve as the thermal "brain" for the safety circuit in high-efficiency gas furnaces. Designed specifically for the Carrier, Bryant, and Payne furnace families, this component monitors the temperature of the air passing through the heat exchanger. Its critical function is to prevent internal overheating by interrupting the 24V control circuit if temperatures exceed the safe threshold. As a genuine Factory Authorized Part, it ensures that your system maintains its original engineering specifications, protecting the heat exchanger from thermal stress and ensuring long-term system reliability.

Key Features

  • Genuine OEM Part Number: Directly replaces part number HH18HA586, ensuring 100% electrical compatibility and maintaining the manufacturer’s UL safety rating.
  • Precision 180°F Calibration: Calibrated to "open" at exactly 180°F, providing a rapid safety response to restricted airflow or mechanical failure.
  • Automatic Reset Logic: Features an auto-reset bi-metal disc that restores the circuit once the furnace cools to safe operating levels, preventing permanent system lockouts during minor airflow fluctuations.
  • Enhanced Reliability: Engineered to solve "nuisance tripping" and clicking noises caused by aged or weakened thermal discs in older furnace units.
  • Seamless Integration: Designed with standard 1/4" male spade terminals for a secure, vibration-resistant connection to the factory wiring harness.

Product Details

  • Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
  • Manufacturer: United Technologies / Carrier Corp
  • Part Number: HH18HA586
  • Weight: 0.10 lbs
  • Voltage: 24V (Control Circuit)
  • Amps/Watts: 0.5A @ 24VAC (Pilot Duty)
  • Ignition Type: Compatible with HSI and Spark Ignition systems
  • Open Temperature: 180°F
  • Reset Type: Automatic Reset

🛠️ HVAC Depot Pro Tip

"Take a Picture First!" Before removing the old switch, photograph the wire colors and the mounting orientation. The HH18HA586 is often mounted in tight spaces where wire reach is limited. After installation, perform a "Static Pressure Check": if this switch continues to trip, it is likely doing its job and signaling that your air filter is too restrictive or your evaporator coil is clogged. Never bypass this switch to achieve heat; it is there to prevent a cracked heat exchanger!

Cross-Reference

  • Superseded Numbers: HH18HA231, HH18HA386
  • Legacy Numbers: 1013454, 313362-431
  • Drawing Numbers: 1NT01L-4375, 95-313362
  • Equivalent Brands: ICP (Heil, Tempstar, Comfortmaker), White-Rodgers / Emerson

Model Compatibility

58STA/STX Series (Suffixes: 045-12, 070-12, 090-14, 110-20, 135-22)

310A/J Series (Suffixes: 024045, 036070, 048090, 066110, 066135)

912S/915S Series (Suffixes: 30040S, 36060S, 42080S, 60100S, 60120S)

PG8M Series (Suffixes: 045045, 070070, 090090, 110110, 135135)
