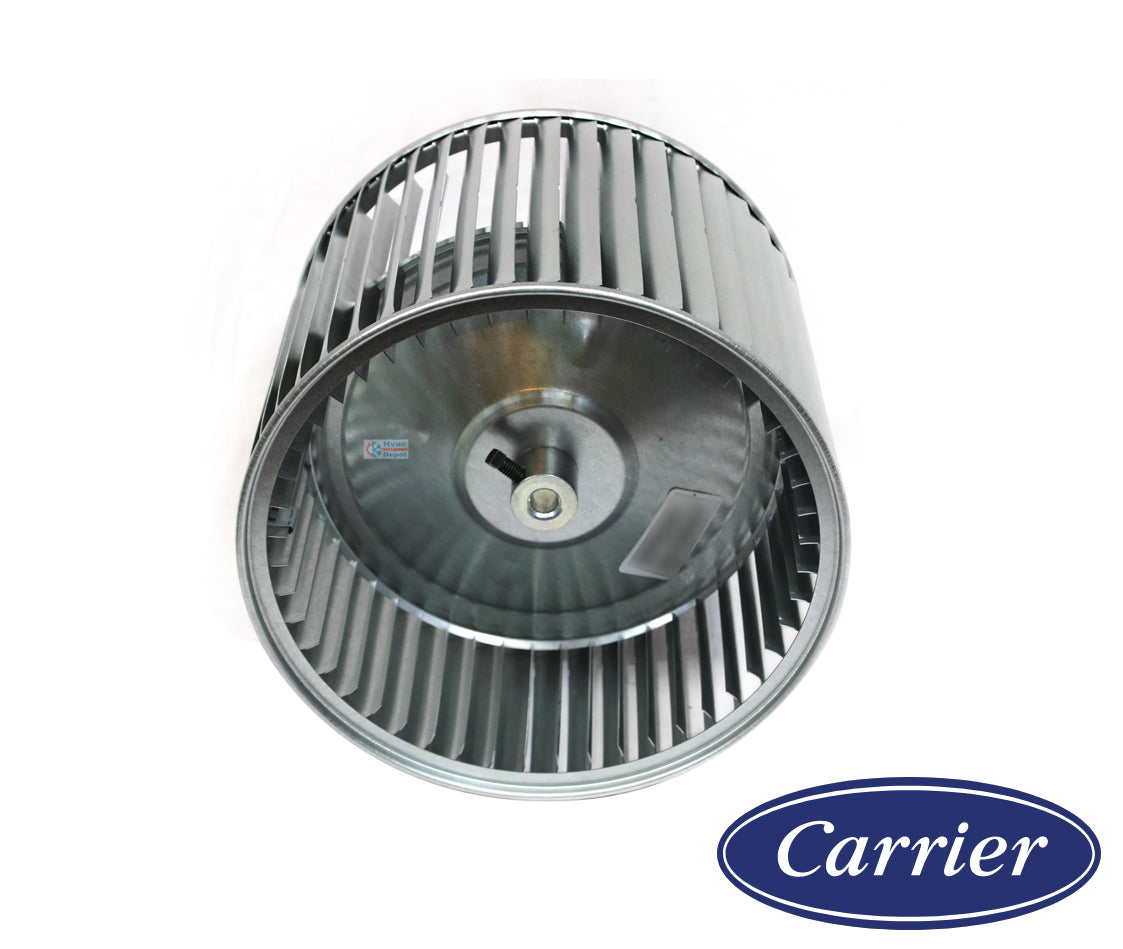

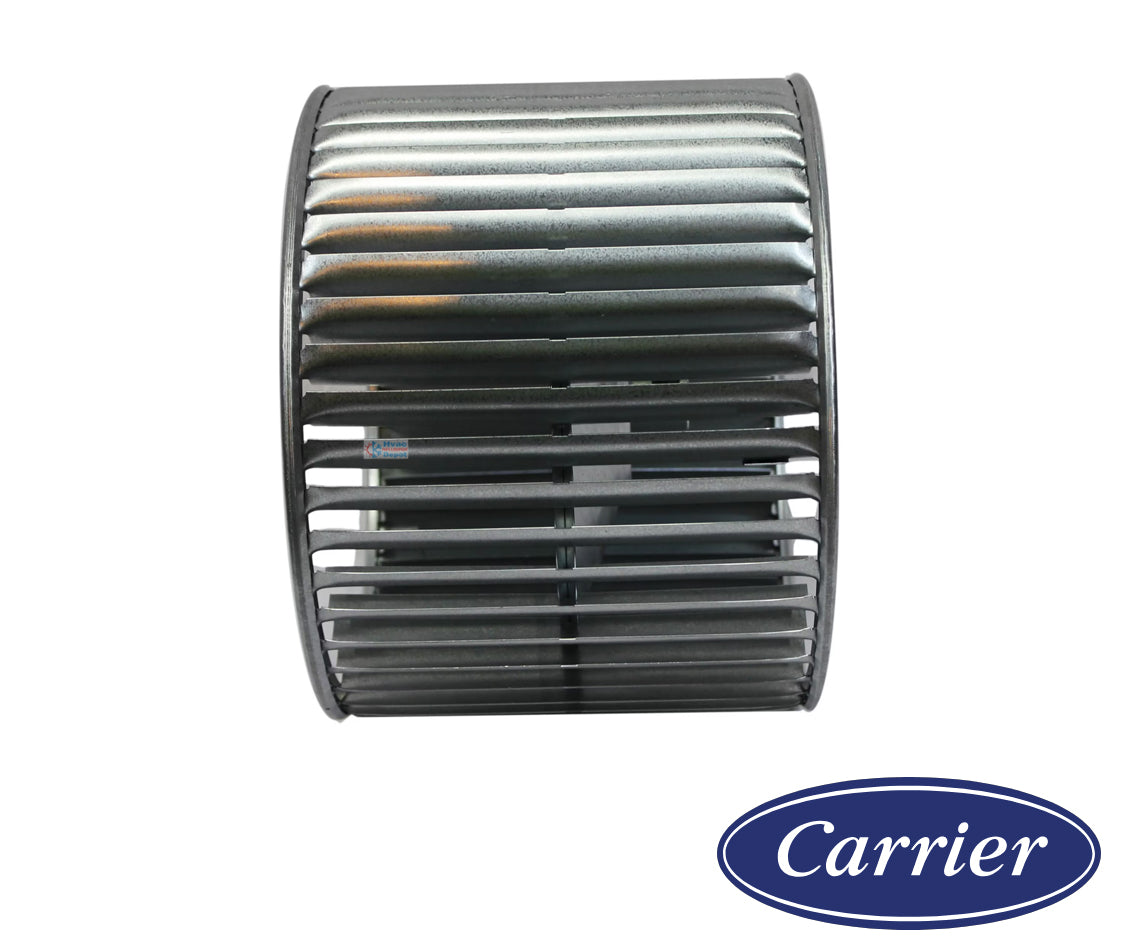

Factory Authorized Parts™ LA22LA094 HVAC Blower Wheel – 11" x 10", 1/2" Bore, Concave, OEM Specs
Factory Authorized Parts™ LA22LA094 HVAC Blower Wheel – 11" x 10", 1/2" Bore, Concave, OEM Specs
Low stock: 1 left
Factory Authorized Parts™ - LA22LA094 Blower Wheel
-
Stop Whole-House Vibration: Correct the deep-toned "rumbling" in your ductwork by replacing a warped or out-of-balance 11-inch wheel.
-
Maximum Static Pressure: Ensure your 5-ton AC system has enough airflow to prevent the evaporator coil from freezing into a solid block of ice.
-
Perfect OEM Alignment: Designed to fit Carrier-family blower decks exactly, eliminating the air-bypass gaps found with universal fit wheels.
-
Whisper-Quiet Operation: Precision concave blades cut through the air with less turbulence, lowering the decibel level of your furnace blower.
-
Long-Term Reliability: Galvanized steel design is built to outlast the life of the furnace, resisting the moisture common in humid fan-coil environments.
Please visit our store for pick up.
Couldn't load pickup availability
safe & secure Checkout
Specifications
Specifications
Product Details
- Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
- Manufacturer: Carrier Corporation
- Part #: LA22LA094
- Weight: 8.4 lbs
- Wheel Diameter: 11 inches
- Wheel Width: 10 inches
- Bore Size: 1/2 inch (Motor Shaft Diameter)
- Rotation: Clockwise (from hub/back end)
- Material: Galvanized Steel
- Design: Concave, Double Inlet
description
description
Factory Authorized Parts™ LA22LA094 HVAC Blower Wheel – 11" x 10", 1/2" Bore, Concave, OEM Specs
The High-Static Air Delivery Specialist
The Factory Authorized Parts™ LA22LA094 is a premium, industrial-grade centrifugal blower wheel designed for high-capacity residential furnaces and air handlers. As an official Factory Authorized Part for Carrier, Bryant, and Payne systems, this wheel is the exact technical match required for 4-ton and 5-ton HVAC units. Constructed from heavy-duty galvanized steel, it features a 11-inch diameter and 10-inch width, engineered to move high volumes of air across high-resistance evaporator coils and heat exchangers. This wheel is essential for maintaining the specific static pressure needed to prevent system "slugging" and ensure whisper-quiet air distribution in larger homes.
Key Features
- Factory Authorized Part Number: The LA22LA094 is the genuine OEM replacement, ensuring the precise weight and balance required to prevent 3/4 HP and 1 HP blower motor bearing failure.
- High-Volume Concave Fins: Engineered with a specialized concave blade profile that maximizes air velocity (CFM) while reducing the electrical load on the motor.
- Galvanized Steel Construction: Features a corrosion-resistant coating that prevents rust and debris accumulation, which can throw lesser wheels out of balance.
- Precision Factory Balancing: Every wheel is fitted with individual balancing clips to ensure smooth, vibration-free rotation at speeds up to 1,200 RPM.
- Non-Slip Hub Design: Equipped with a robust 1/2-inch center bore and a high-torque set screw to provide a permanent, secure connection to the blower motor shaft.
Product Details
- Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
- Manufacturer: Carrier Corporation
- Part #: LA22LA094
- Weight: 8.4 lbs
- Wheel Diameter: 11 inches
- Wheel Width: 10 inches
- Bore Size: 1/2 inch (Motor Shaft Diameter)
- Rotation: Clockwise (from hub/back end)
- Material: Galvanized Steel
- Design: Concave, Double Inlet
🛠️ HVAC Depot Pro Tip
"Clean the Blower Housing Before Installing." When replacing a wheel as large as the LA22LA094, any dust or insulation trapped in the blower "squirrel cage" housing can get sucked into the new fins, causing an immediate imbalance. After sliding the new wheel onto the shaft, use a torque wrench to ensure the set screw is fully seated on the flat of the shaft. Spin the wheel several times by hand to confirm there is a minimum of 1/8" clearance between the wheel rim and the housing inlet rings to avoid metal-on-metal grinding.
Cross-Reference
- Superseded/Legacy Numbers: LA22LA004, LA22LA011, LA22LA016, P251-11105, LA22LA020
- Drawing Numbers: 11X10-1/2-CONC, 321303-402
- Equivalent Model Numbers: Lau 00832002, Morrison 41-1120-14, Revcor 1110-1/2
- Industry Equivalents: Mars 40317, Packard BW1110
Model Compatibility
- Carrier / Bryant / Payne 58STA (Suffixes: 110, 135, 155**)**
- Carrier / Bryant / Payne 58STX (Suffixes: 110, 135, 155**)**
- Carrier / Bryant / Payne 58WAV (Suffixes: 135, 155**)**
- Carrier / Bryant / Payne 310AAV (Suffixes: 060110, 066135**)**
- Carrier / Bryant / Payne 58PAV (Suffixes: 110, 135, 155**)**
- Carrier / Bryant / Payne 58MXA (Suffixes: 100, 120, 140**)**
- Universal Application (Suffixes: Fits larger residential blower housings requiring an 11" x 10" wheel with a 1/2" bore**)**
