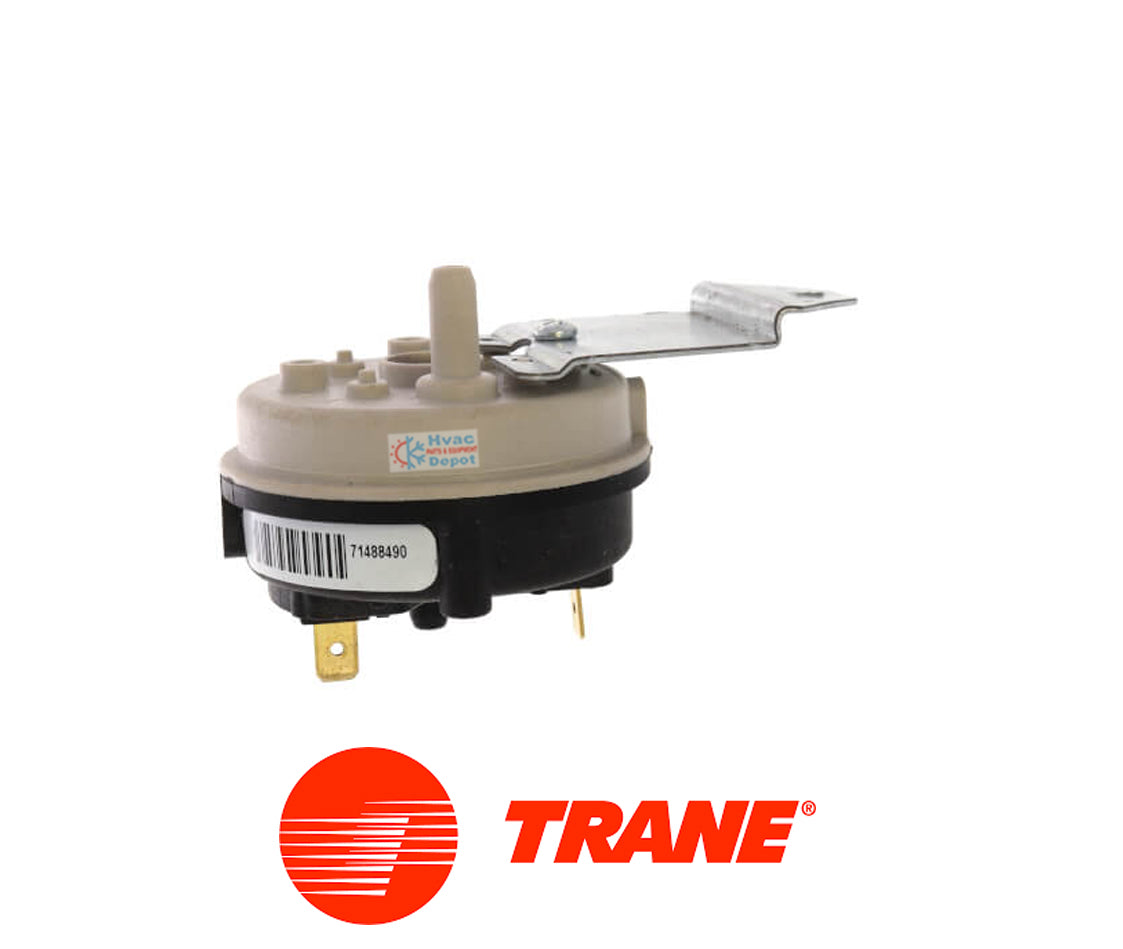

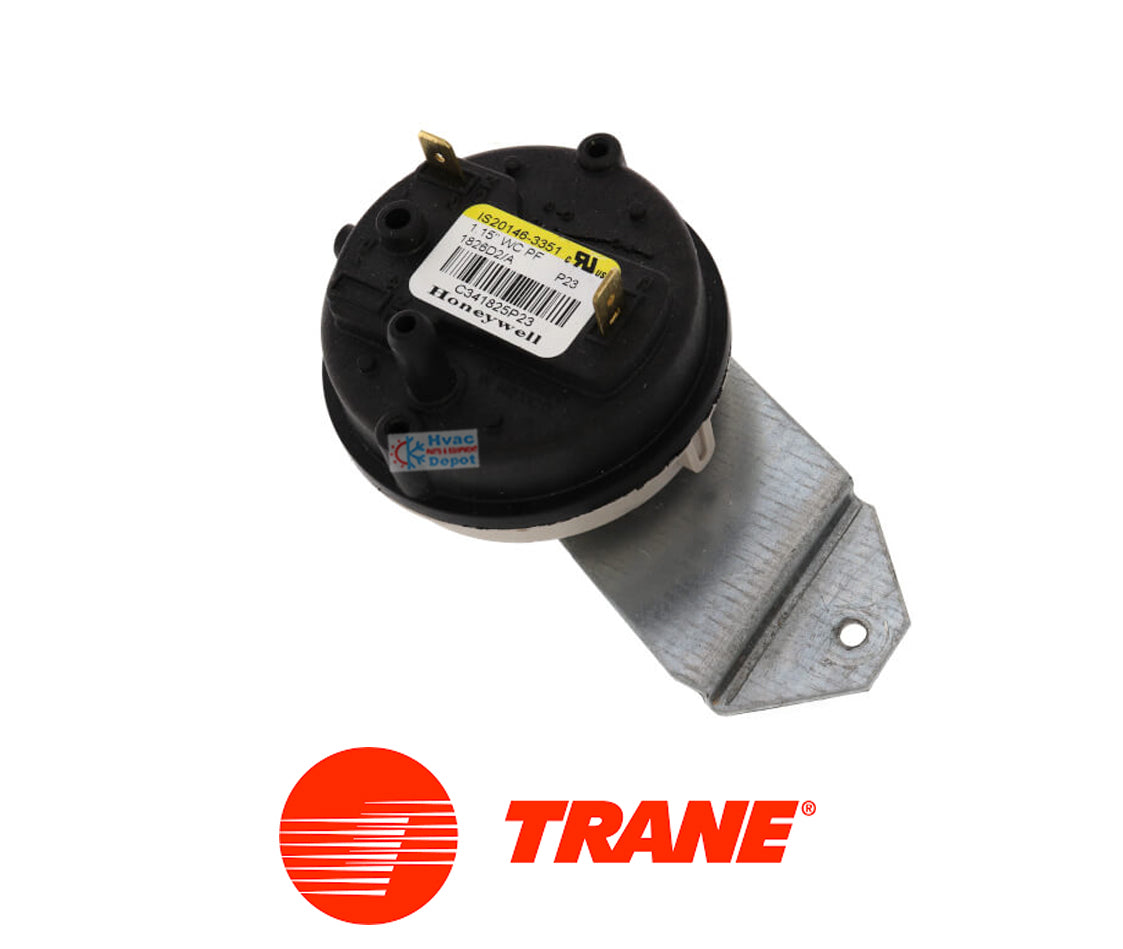

Trane Direct Replacement SWT02522 Air Pressure Switch

Trane Direct Replacement SWT02522 Air Pressure Switch

Low stock: 2 left

Regular price $108.99 USD
Regular price Sale price $108.99 USD
Sale Sold out

Trane-American Standard Direct Replacement SWT02522 Air Pressure Switch

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

  • Brand: Trane/American Standard
  • Contact Configuration: SPST
  • Current Rating: 5A
  • Number of Poles: 1
  • Pressure Rating:
  • Max Operating: 3 In-WC ,
  • Max: PR Setpoint, 1.34 In-WC
  • Min: 1.15 In-WC PF14 In-WC
  • Total Range: 1.15- 1.34 WC
  • Shipping Weight: 0.308
  • Terminal Type: Quick Disconnect
  • Type: Air
  • Long Description: SWITCH; PRESSURE, IS2

description

Trane SWT02522 is a single-pole, single-throw (SPST) pressure switch used in Trane and American Standard furnaces and HVAC systems to insure proper air pressure. It is an OEM (Original Equipment Manufacturer) replacement part that operates within a range of 0.15 to 1.15 inches of water column (W.C.) and has a 1.15" WC pressure rating. The primary function is to sense air pressure to ensure the furnace's venting system is working correctly.

Quick Specifications:

Pressure Rating: Typically set to open at 1.15 inches of water column, ensuring safe and efficient operation.

Configuration: Single-pole, single-throw (SPST), meaning it uses a single set of contacts to open or close a circuit

Durability: Features a brass body and stainless steel diaphragm for long-lasting performance.

Electrical rating: 15 A at 125 VAC and 10 A at 250 VAC.



Drawing Numbers / X Numbers

  • C341825P23
  • X13200296230


Pressure Switch is commonly found in the following models:

American Standard:

  • AUC1B080A9421AA
  • AUX080C942D3
  • AUX1B080A9421AA
  • AUX1B080A9H31AA

Run TRU:

  • CUX080A942A0
  • CUX1B080A9421AA

Trane:

  • TUC1B080A9421AA
  • TUX080C942D3
  • TUX1B080A9421AA
  • TUX1B080A9H31AA
